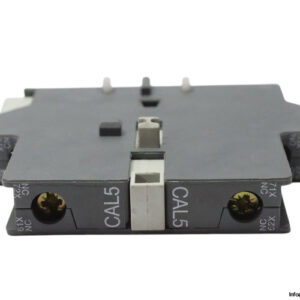

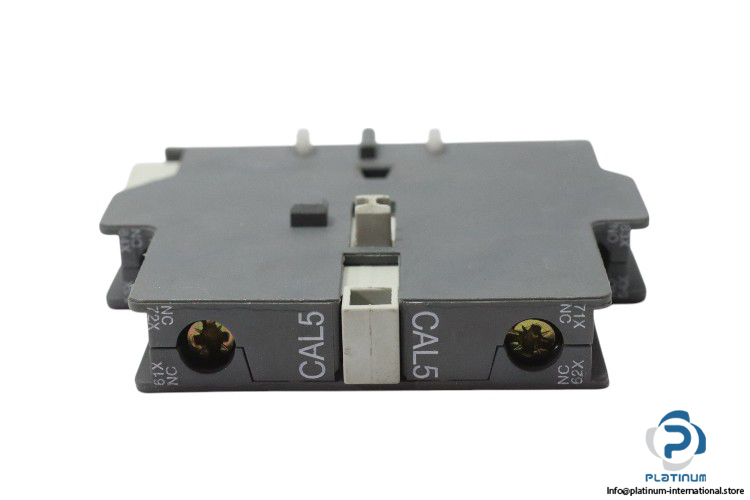

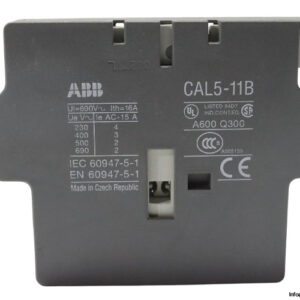

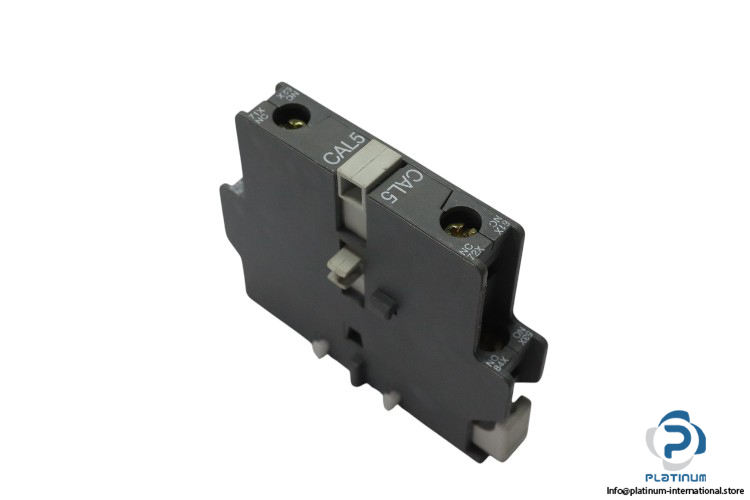

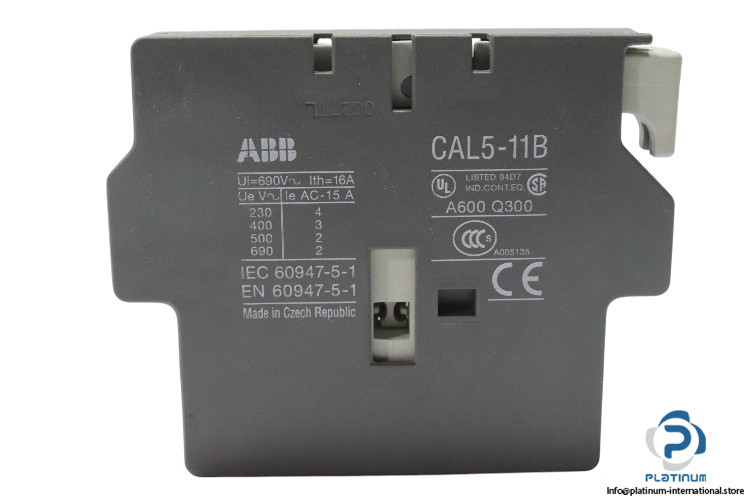

ABB CAL5-11B Auxiliary Contact Block
The ABB CAL5-11B auxiliary contact block (Part No.: 2CDS 200 912 R0001 / S 2C “ H 6R) is designed to provide reliable auxiliary signaling and switching in control circuits. Built to IEC and EN standards, it offers high performance for industrial applications requiring dependable electrical interfacing.
- Manufacturer: ABB
- Type: Auxiliary Contact Block
- Model: CAL5-11B
- Part No.: 2CDS 200 912 R0001 / S 2C “ H 6R
Technical Information:
- Rated Operational Voltage: 690 V
- Rated Frequency (f): 50/60 Hz
- Thermal Current (Ith): 16 A
- Rated Operational Current AC-15 (Ie):
- 500 V: 2 A
- 690 V: 2 A
- 24 / 127 V: 6 A
- 220 / 240 V: 4 A
- 380 / 400 V: 3 A
- Rated Operational Current DC-13 (Ie):
- 24 V: 6 A / 144 W
- 48 V: 2.8 A / 134 W
- 72 V: 1 A / 72 W
- 110 V: 0.55 A / 60 W
- 125 V: 0.55 A / 69 W
- 220 V: 0.30 A / 66 W
- 250 V: 0.30 A / 75 W
- Rated Short-Time Withstand Current (Icw):
- 0.1 s: 140 A
- 1 s: 100 A
- No. of Auxiliary Contacts: 1 NO + 1 NC
- Standard: IEC 947-5-1, EN 60947-5-1
- Terminal Type: Screw Terminals
- Protection Degree: IP20
- Dimensions: 12 x 62 x 74 mm
