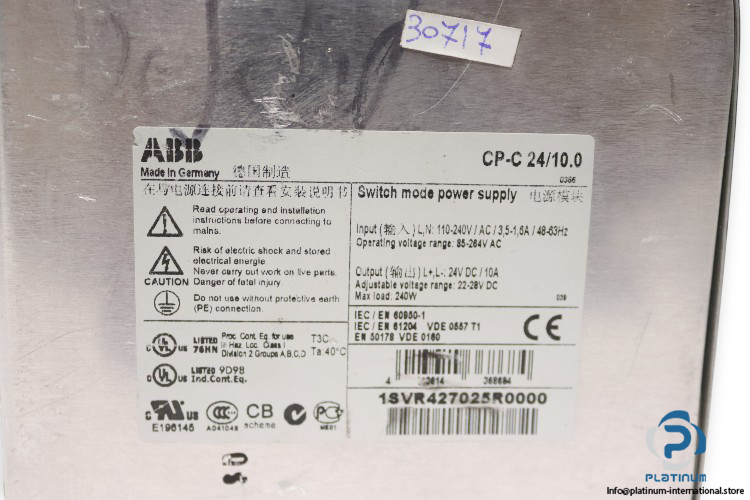

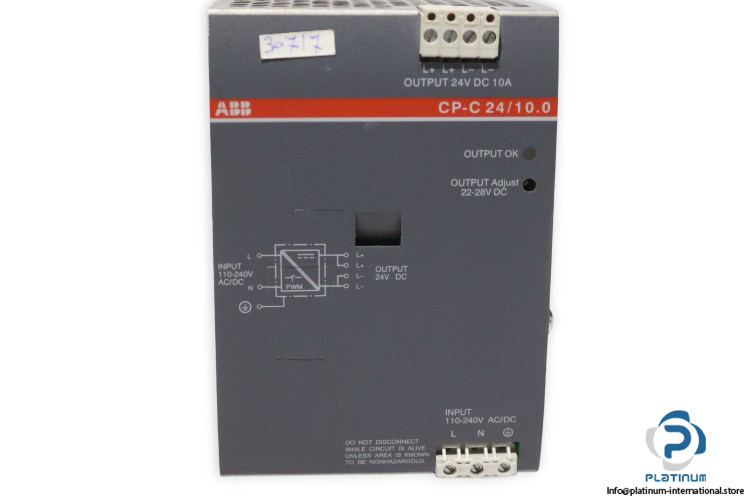

ABB CP-C 24/10.0 Primary Switch Mode Power Supply

The ABB CP-C 24/10.0 is a reliable and efficient primary switch mode power supply designed to deliver consistent 24 V DC output for industrial automation and control systems. With compact dimensions and robust design, it ensures long-lasting performance under demanding conditions.

Manufacturer: ABB
Type: Primary Switch Mode Power Supply
Model: CP-C 24/10.0

Technical Information

• Input Rated Voltage: 110 / 240 V AC
• Inrush Current: 3.6 / 1.6 A
• Frequency: 48 / 63 Hz
• Output Rated Voltage: 24 V DC
• Output Rated Current: 10 A
• Power: 240 W
• Protection Class: IP20
• Operation Temperature: -25 / 70 °C
• Dimensions: 130 x 90 x 135.5 mm
