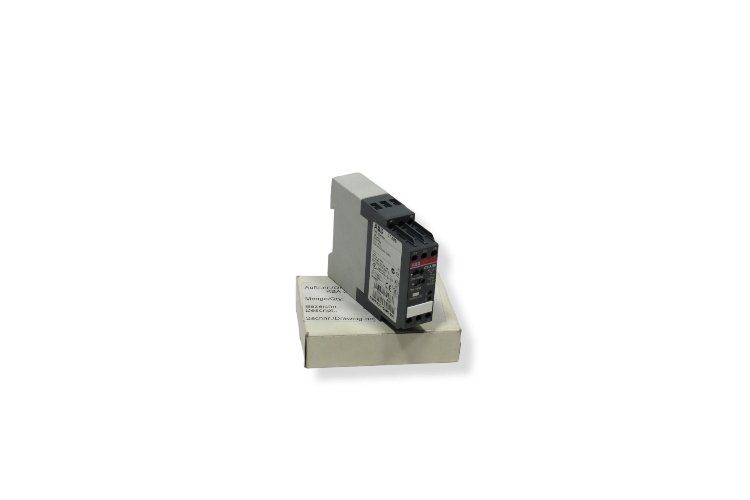

ABB CT-ARS Electronic Off Delay Time Relay

The ABB CTARS is a versatile electronic off delay time relay designed for precision timing functions in industrial automation and control systems. With wide supply voltage compatibility and robust protection, it ensures reliable operation across diverse applications.

Manufacturer: ABB
Type: Electronic Off Delay Time Relay
Model: CT-ARS
ID No.: 1SVR430120R0300

Technical Information

• Rated Supply Voltage: 24 / 240 V AC / DC
• Power Consumption: 2 / 2.5 VA / W
• Frequency: 50 / 60 Hz
• Rated Impulse Voltage: 4 kV
• Time Range: 0.05 s / 10 min (7 Ranges)
• Contact: DPDT 2 Change Over (CO)
• Protection Class: IP20
• Operating Temperature: -25 / 60 °C
• Dimension: 78 x 22.5 x 100 mm
