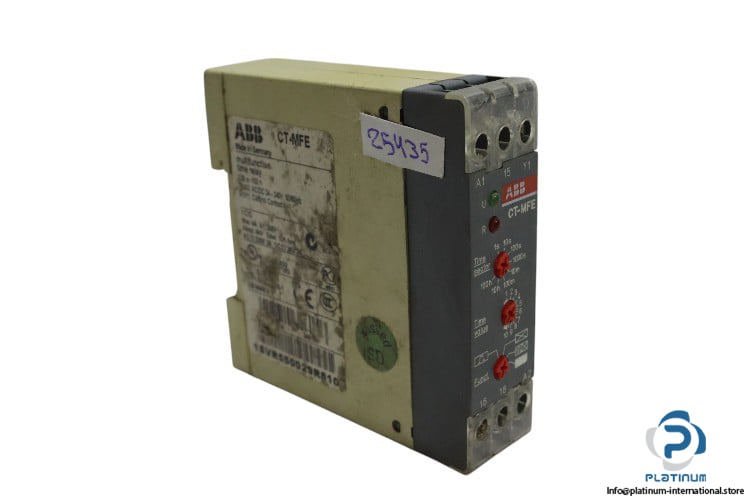

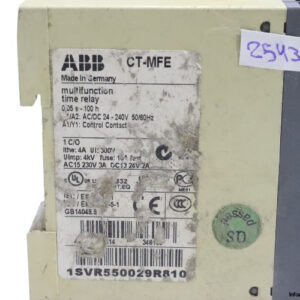

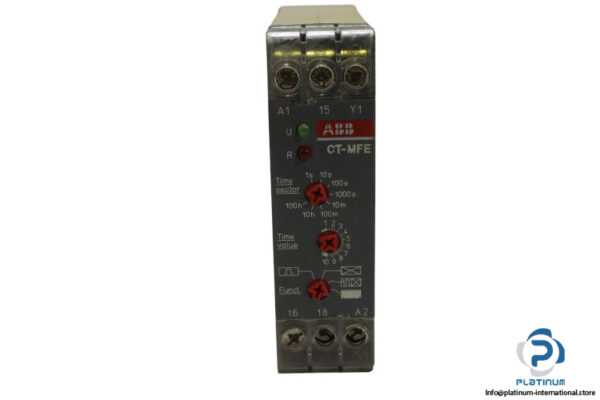

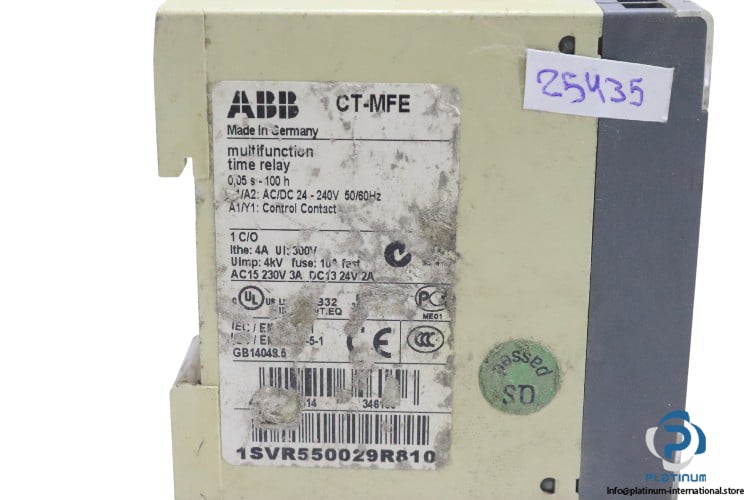

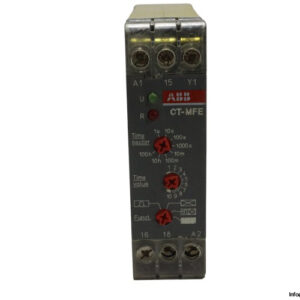

ABB CT-MFE Electronic Timer
The ABB CT-MFE (Part No. 1SVR 550 029 R8100) is a multi-functional electronic timer designed for versatile timing control in automation systems. It offers a wide control supply voltage range and robust protection features for reliable industrial operation.
- Manufacturer: ABB
- Type: Electronic Timer
- Model: CT-MFE
- Part No.: 1SVR 550 029 R8100
Technical Information:
- Rated Control Supply Voltage (Us): 24-240 V AC/DC
- Rated Insulation Voltage (Ui): 300V
- Rated Impulse-Withstand Voltage (Uimp): 4 kV
- Contact Rating AC15: 230V at 3A
- Contact Rating DC13: 24V at 2A
- Rated Frequency: 50/60 Hz
- Power Consumption: 1.0-2.0 VA/W
- Contact Material: Silver Alloy
- Rated Operational Voltage (Ue): 250 V
- Minimum Switching Voltage / Current: 12 V / 100 mA
- Degree of Protection: Housing IP50, Terminals IP20
- Ambient Temperature: -20…60 °C
