Manufacturer: ABB

Type: Fuse Switch Disconnector

Model: E93/32

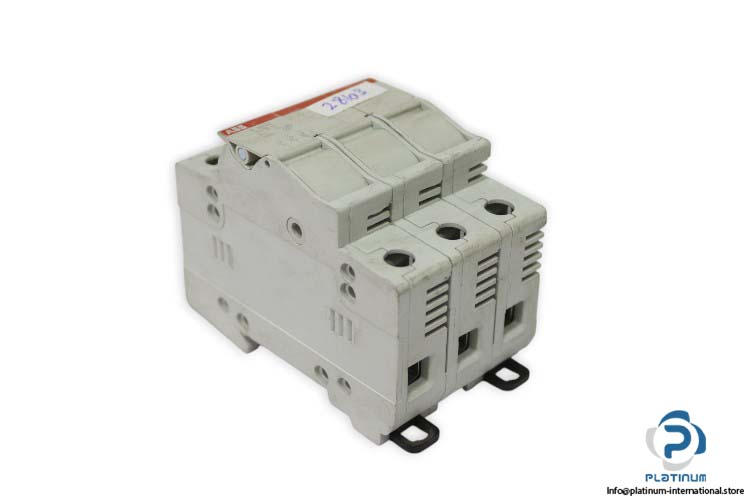

The ABB E93/32 Fuse Switch Disconnector is designed to deliver reliable performance and safety in low-voltage electrical distribution systems. Ideal for industrial and commercial installations, it ensures efficient circuit isolation and protection. With a rated operational current of 32 A and insulation voltage up to 1 kV, this unit supports 3-pole configurations with IP20 protection and torque-controlled connections. Built for durability, it operates safely within a broad temperature range, making it a dependable choice for critical applications.

Technical Information

• Rated Operational Current AC (Ie): 32 A
• Rated Insulation Voltage (Ui): 1 kV
• Rated Frequency (f): 50/60 Hz
• Power Loss: At Rated Operating Conditions per Pole 3 W
• Number of Poles: 3P
• Tightening Torque: 2…2.5 N·m
• Degree of Protection: IP20
• Ambient Temperature: -5 … 40 °C
