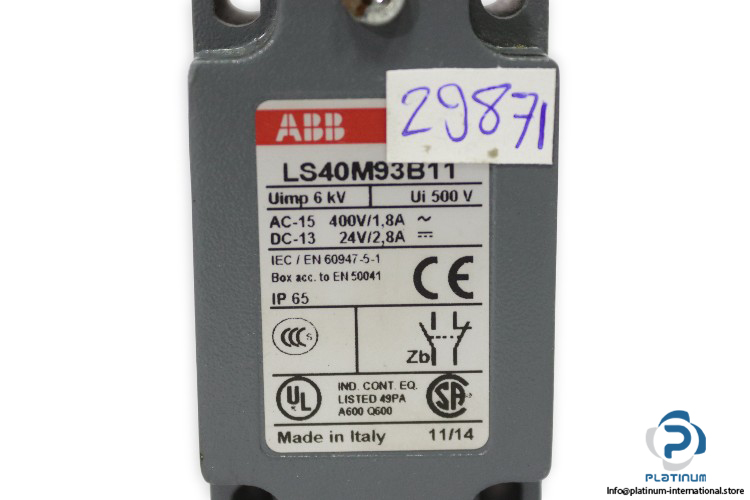

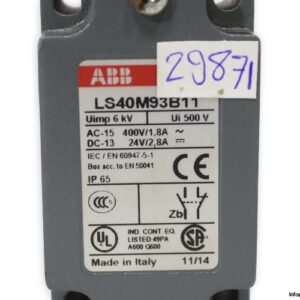

ABB LS40M93B11 Limit Switch

The ABB LS40M93B11 Limit Switch from the LS series is designed for precision operation and durability in industrial environments. Built to comply with international standards, it ensures reliable performance under demanding conditions.

Manufacturer: ABB
Type: Limit Switch
Model: LS40M93B11
Series: LS

Technical Information

• Output Configuration: 1 Normally Open + 1 Normally Closed
• Contact Operation: Snap Action

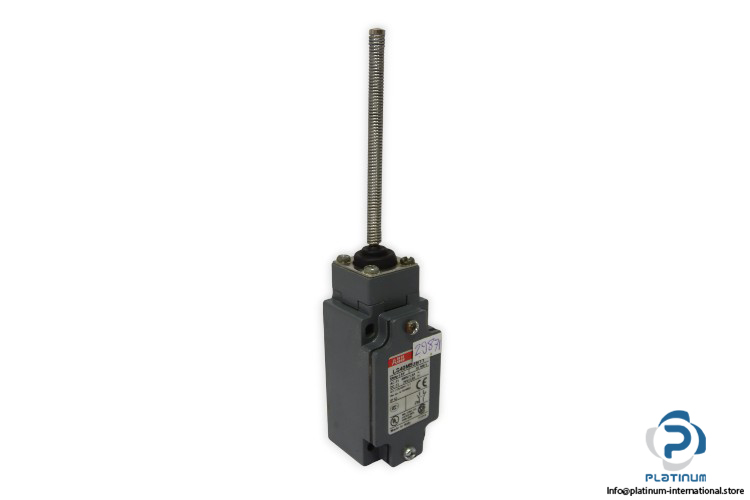

• Actuator Type: Flexible Rod Actuator (Spring Rod Type)
• Rated Insulation Voltage Ui: 500 V
• Rated Impulse Withstand Voltage Uimp: 6 kV
• Utilization Categories:
  • AC-15: 400 V / 1.8 A
  • DC-13: 24 V / 2.8 A
• Connection: Cable Entry
• Protection Class: IP65
• Standard Compliance: IEC / EN 60947-5-1, EN 50041
