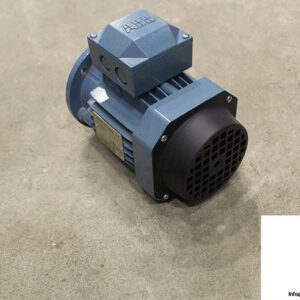

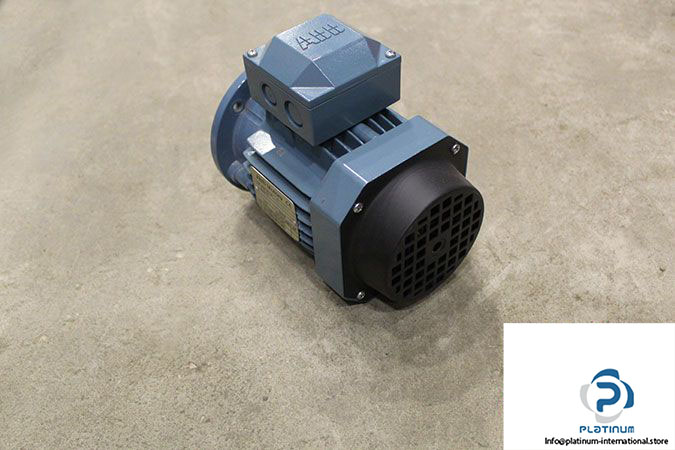

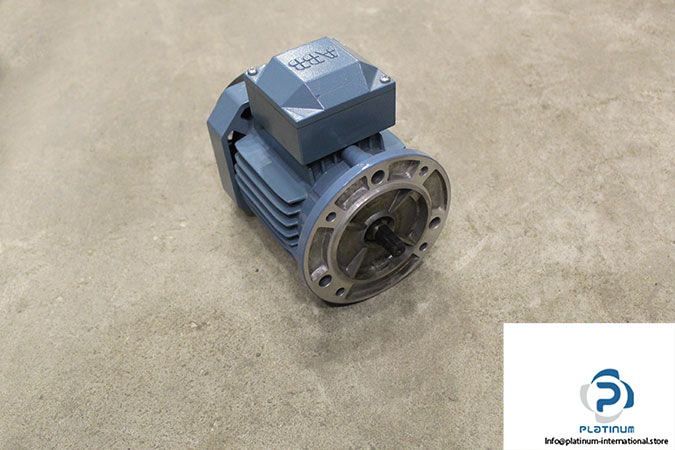

Manufacturer: ABB

Type: 3 Phase Electric Motor

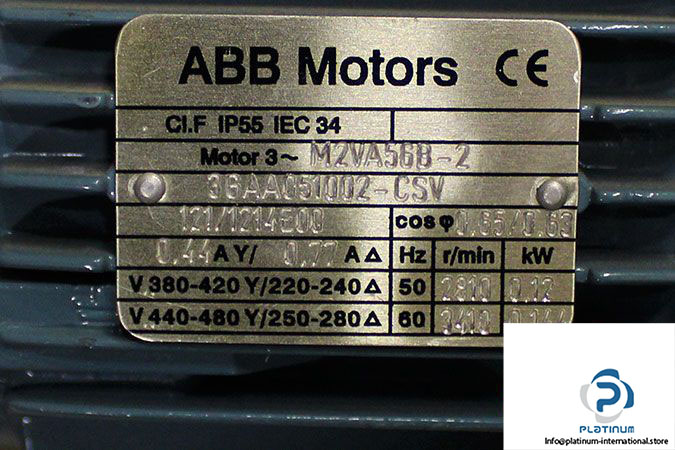

Model: M2VA56B-23GAA051002-CSV

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 2810 r/min

Rated Power: 0.12 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 3410 r/min

Rated Power: 0.144 kW

Rated Current (Star): 0.44 A

Rated Current (Delta): 0.77 A

Power Factor (Star): 0.65

Power Factor (Delta): 0.63

Size Motor: 56B

Shaft Diameter: 9 mm

Flange Diameter: 120 mm

Number of Poles: 2

Mounting Position: B5

Protection Class: IP55

Insulation Class: F

Weight: 3.53 kg
