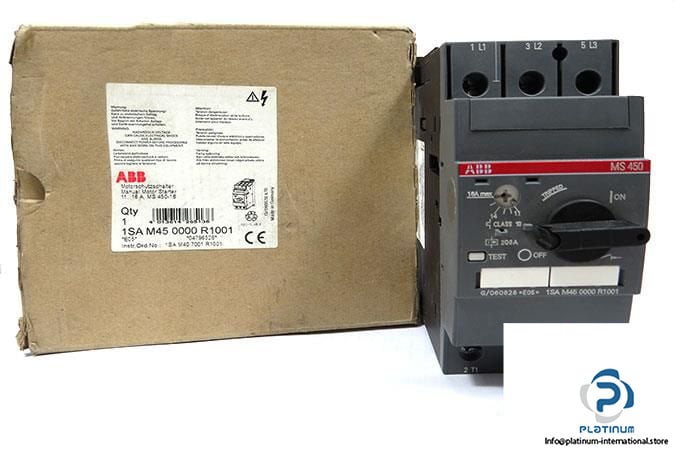

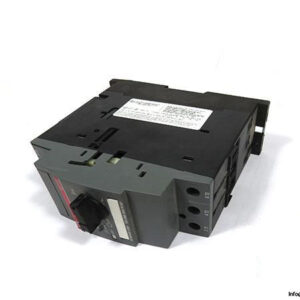

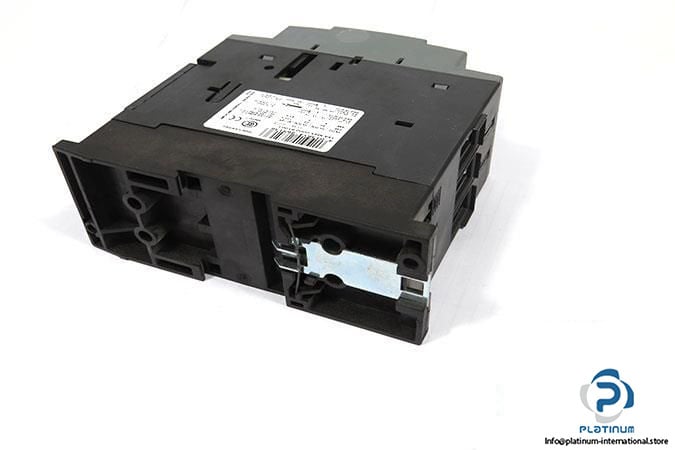

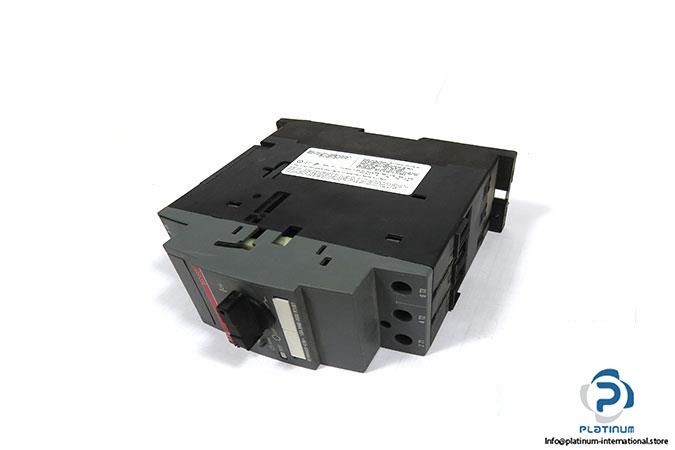

ABB MS450-16 Manual Motor Starter / Motor Protection Circuit Breaker

The ABB MS450-16 is a robust manual motor starter designed for reliable motor protection and control in industrial applications. It provides effective short-circuit and overload protection while allowing direct manual operation. With a rated operational voltage up to 690 V AC and a breaking capacity of 50 kA at 400 V, it ensures dependable performance in demanding environments.

Manufacturer: ABB
Type: Manual Motor Starter / Motor Protection Circuit Breaker
Model: MS450-16
Product ID: 1SAM450000R1001

Technical Information

Number of Poles: 3
Rated Current (In): 16 A
Setting Range: 11 / 16 A
Rated Power: 10 HP
Rated Operational Voltage: 690 V AC
Rated Frequency: 50/60 Hz

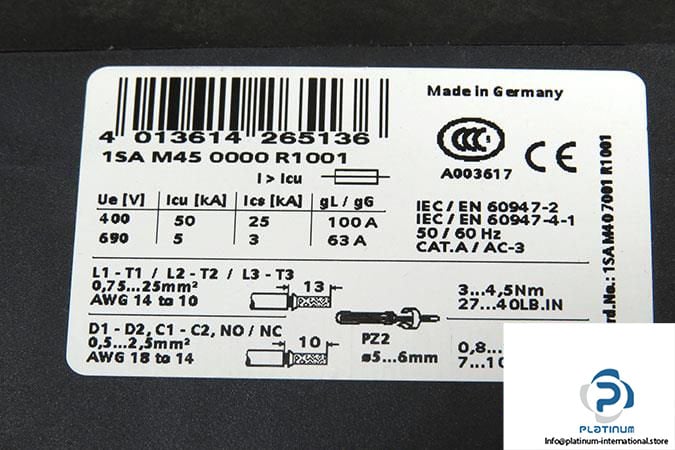

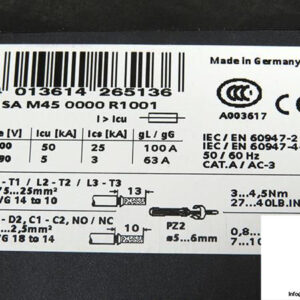

Breaking Capacity (Icu):
(400 V AC) 50 kA
(690 V AC) 5 kA
Dimensions (W x D x H): 55 x 148.5 x 140 mm
Protection Class: IP20
