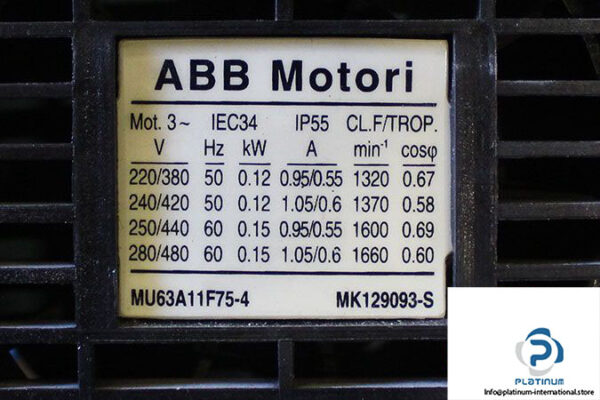

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MU63A11F75-4 MK129093-S

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Speed: 1370 min^-1

Power Factor: 0.58

Rated Voltage (Delta): 220…240 V

Rated Speed: 1320 min^-1

Power Factor: 0.67

Rated Current (Star): 0.55…0.6 A

Rated Current (Delta): 0.95…1.05 A

Rated Power: 0.12 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Speed: 1660 min^-1

Power Factor: 0.6

Rated Voltage (Delta): 250…280 V

Rated Speed: 1600 min^-1

Power Factor: 0.69

Rated Current (Star): 0.55…0.6 A

Rated Current (Delta): 0.95…1.05 A

Rated Power: 0.15 kW

Shaft Diameter: 11 mm

Number of Poles: 4

Protection Class: IP55

Insulation Class: F

Weight: 4.03 kg
