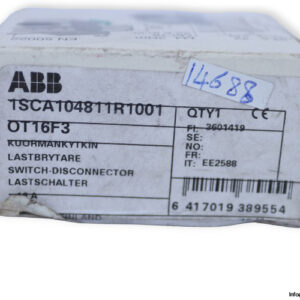

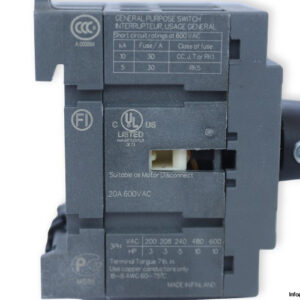

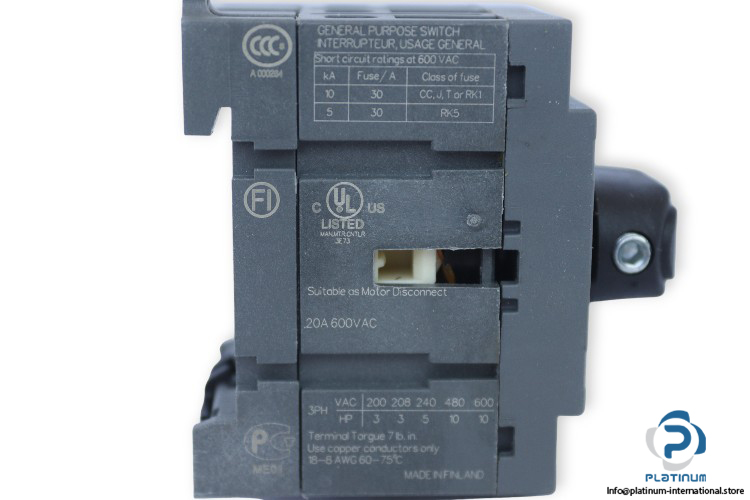

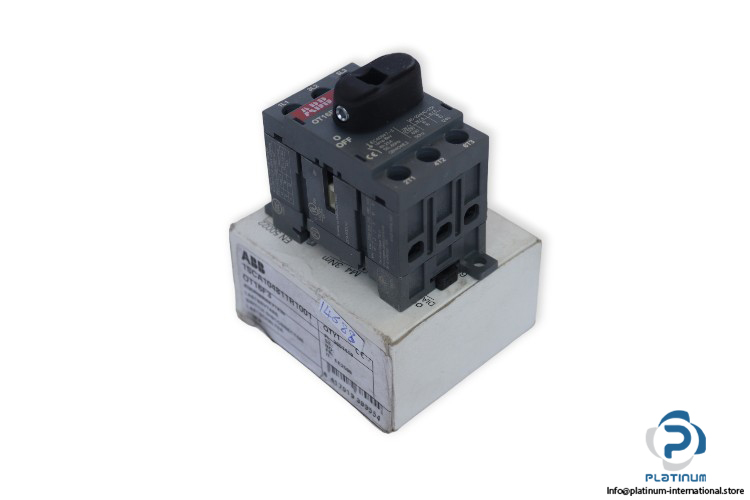

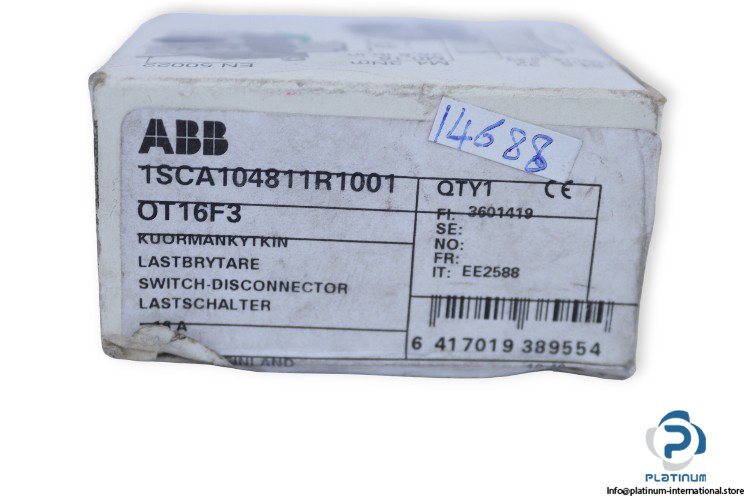

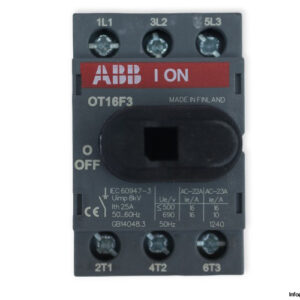

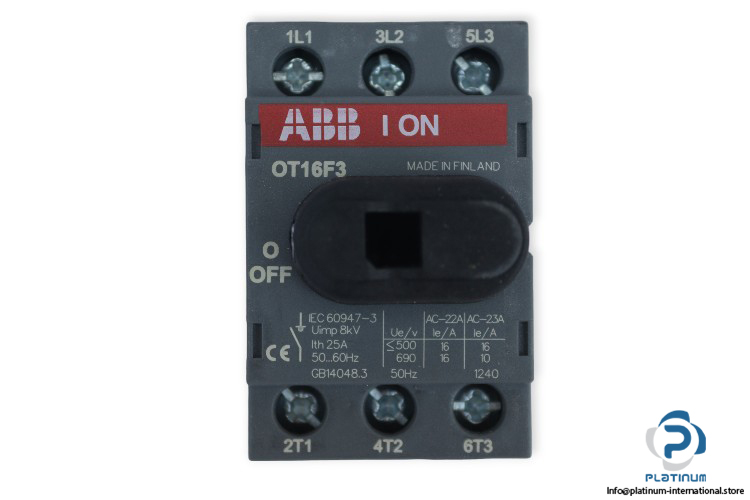

Manufacturer: ABB
Type: Switch Disconnector
Model: OT16F3
Order code: 1SCA104811R1001

Rated Operational Voltage Main Circuit: 750 V
Thermal current Ith: 25 A
Rated Operational Current AC-22A: 16A@500,690 V
Rated Operational Current AC-23A: 16A@500 V,10 A@690 V
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Short-Circuit Making Capacity (Icm): 0.71 kA@690 V
Rated Conditional Short-Circuit Current (Inc): 50 kA
Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 0.5 kA
Service Frequency: 50 … 60 Hz
Standards: IEC 60947-3
No. of poles: 3 Poles
Handle Type: Knob, Handle and shaft not included
Protection degree: IP20
Dimensions (W x D x H): 35 x 68 x 56 mm
