Manufacturer: ABB

Type: Frequency Converter

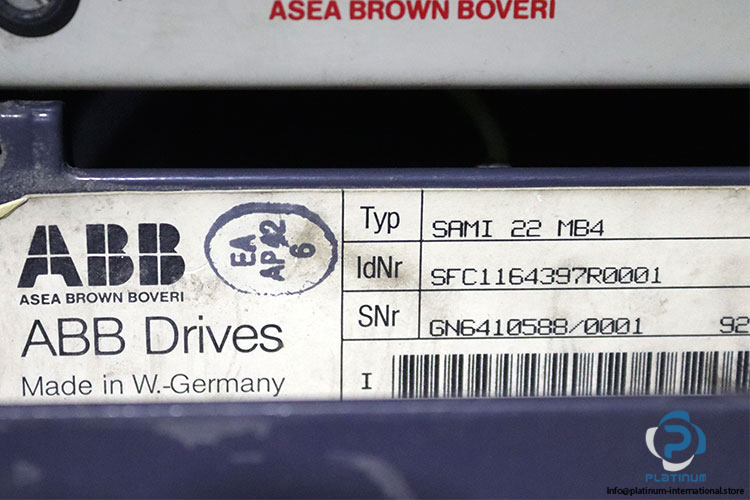

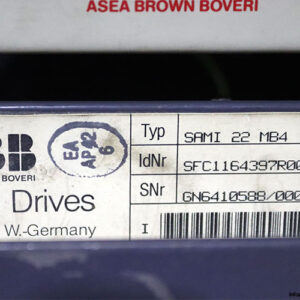

Model: SAMI 22 MB4

Part No.: SFC1164397R0001

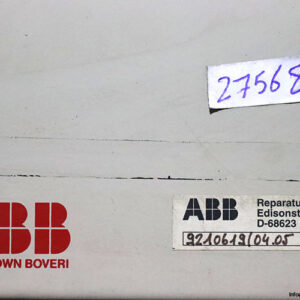

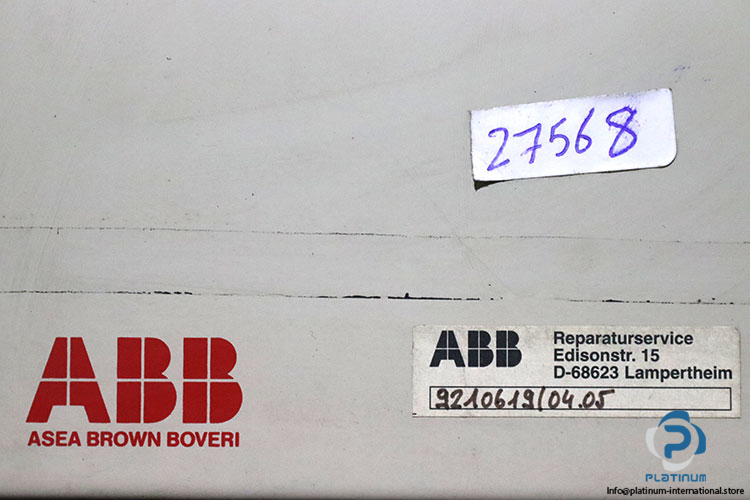

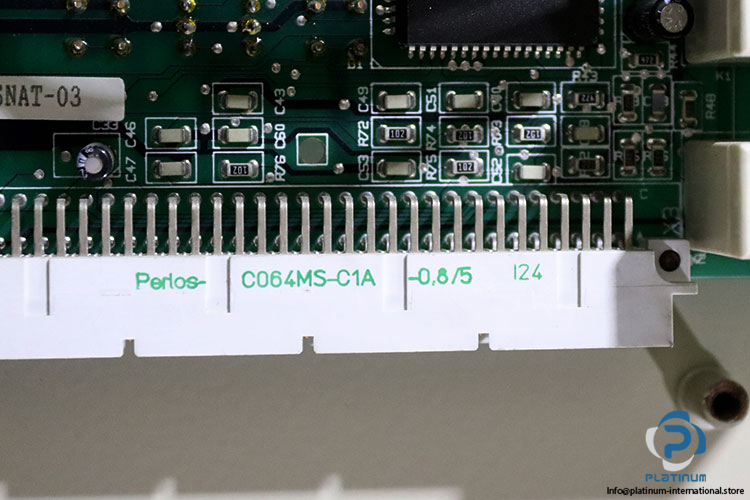

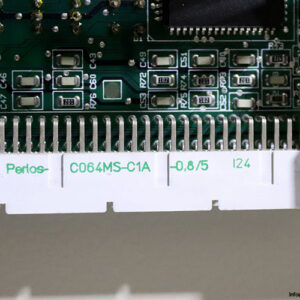

Reference No.: 9210619/04.05 / D-68623 / C064MS-C1A / 531472

Serial No.: GN6410588/0001 92

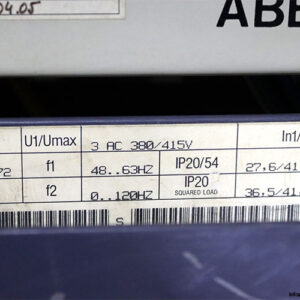

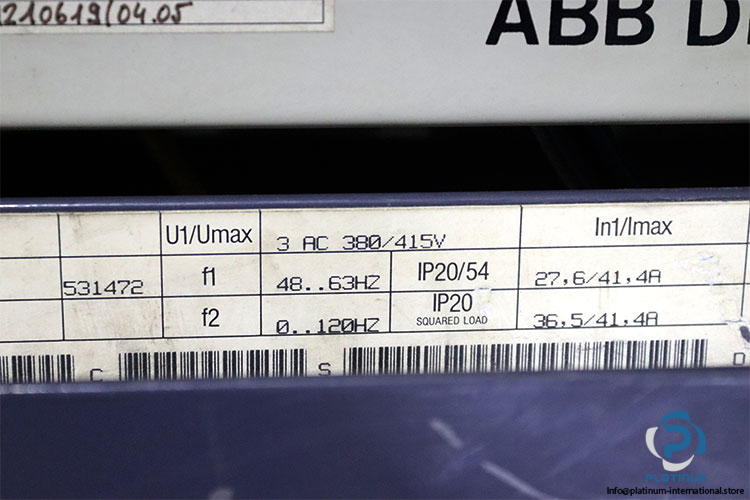

Input Voltage: 3-phase 380 to 415¯V AC

Output Voltage: Variable voltage for motor control

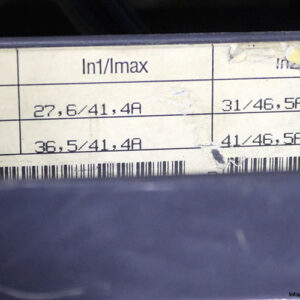

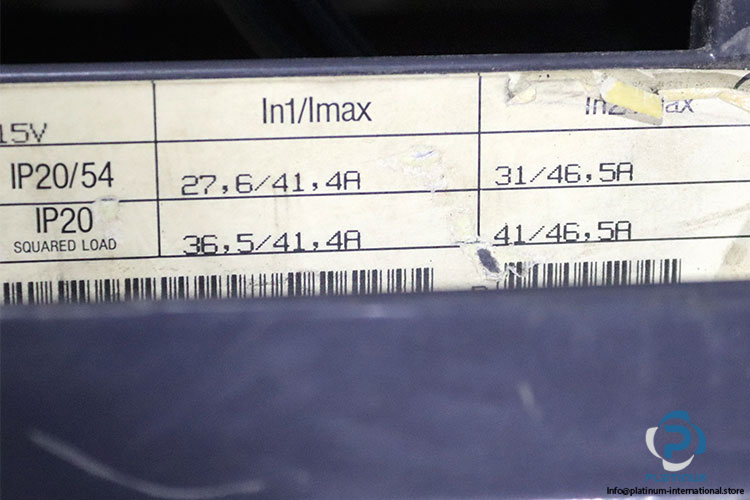

Input Primary Current (In1/Imax): 27.6 / 41.4 A

Input Secondary Current (In2/Imax): 31 / 46.5 A

Output Primary Current (In1/Imax): 36.5 / 41.4 A

Output Secondary Current (In2/Imax): 41 / 46.5 A

Input Frequency: 48“63 Hz

Output Frequency: 0“120 Hz

Degree of Protection: IP20 / IP54

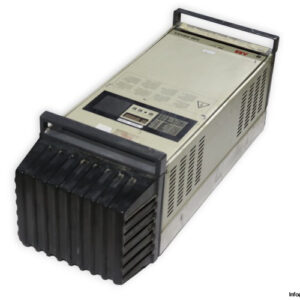

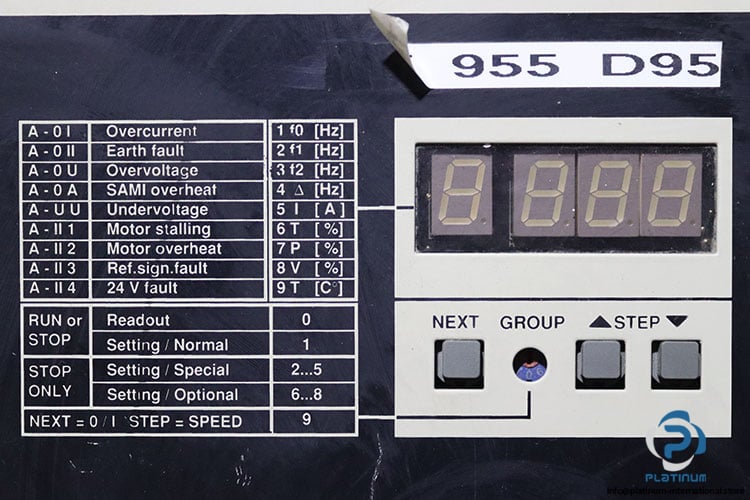

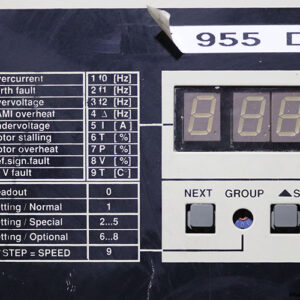

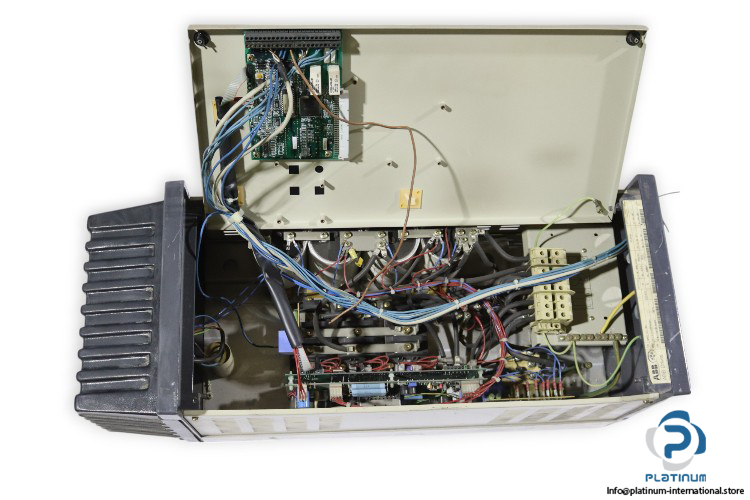

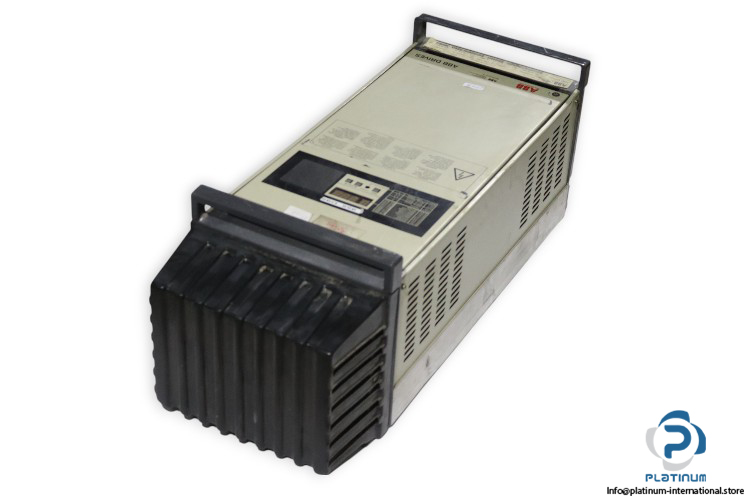

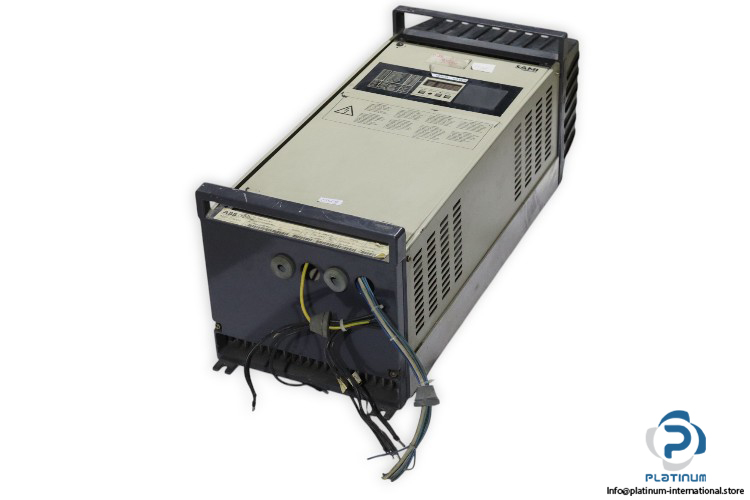

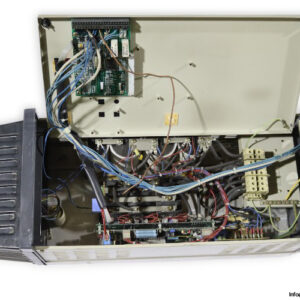

The ABB SAMI 22 MB4 frequency converter is a high-performance industrial drive solution designed for precise motor control in variable-speed applications. Its robust construction and flexible frequency output make it ideal for complex machinery environments. With wide voltage compatibility, strong current handling capabilities, and protection ratings of IP20 and IP54, it ensures both efficiency and safety in demanding operations. Included with the converter is the 955 D95 Panel, a reliable interface unit for operational control and system management.
