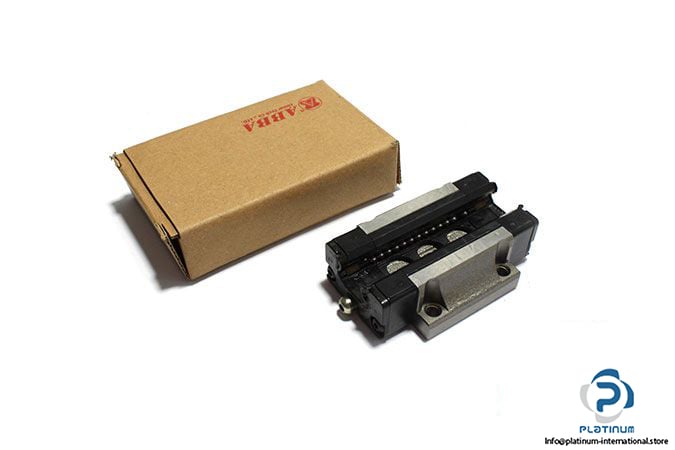

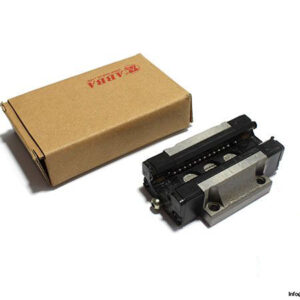

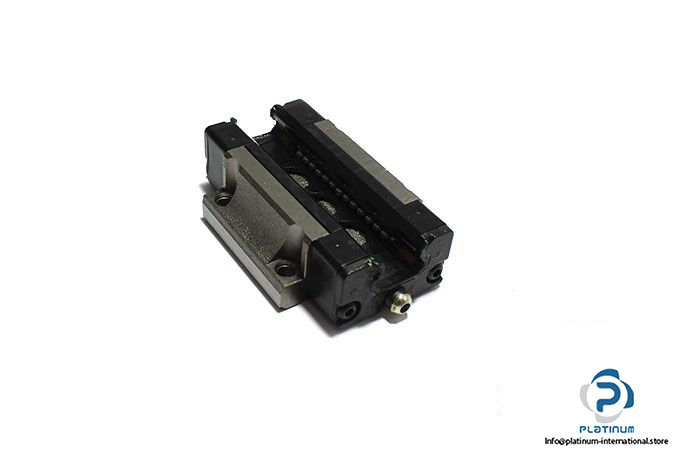

Manufacturer: ABBA

Type: Linear Guideway Block BRC

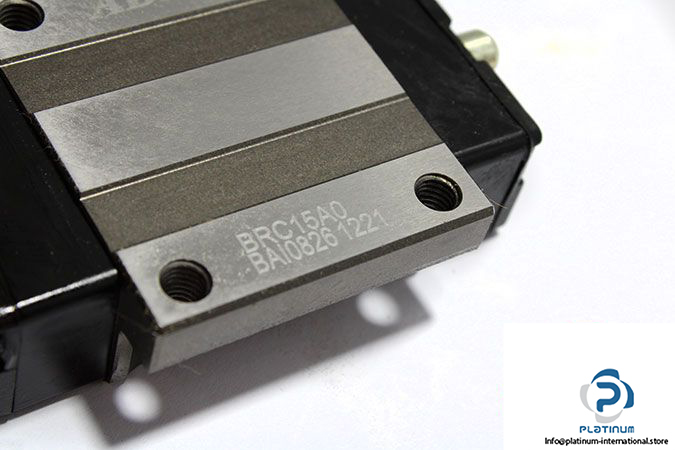

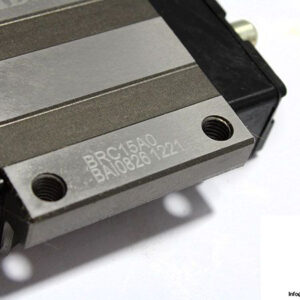

Model: BRC 15 A0

Size: 15 mm

Block Type: Flanged block, Standard length, Standard height

Preload class: Z1, Light preload

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

Basic Load Ratings:

Dynamic C: 850 kgf

Static C₀: 1350 kgf

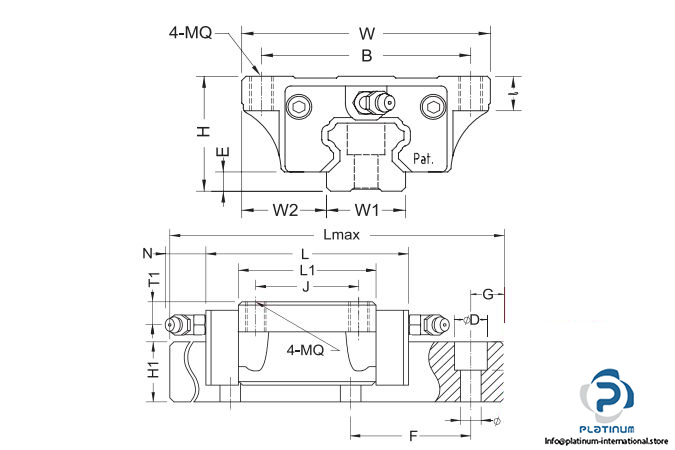

Dimensions

Total Height H: 24 mm

Block Width W: 47 mm

Block Length L: 66 mm

Weight: 0.21 kg
