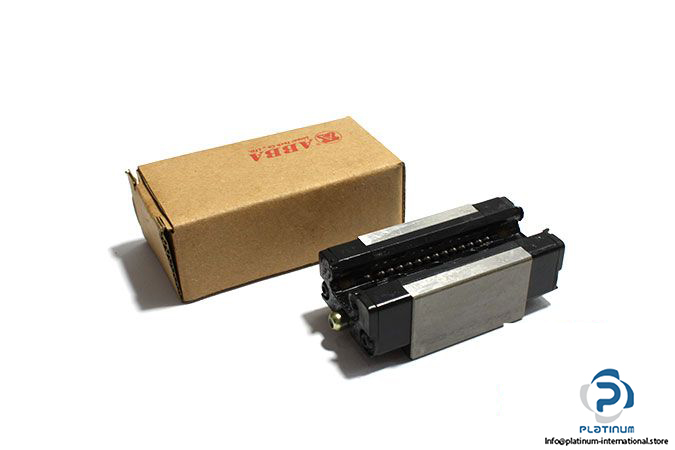

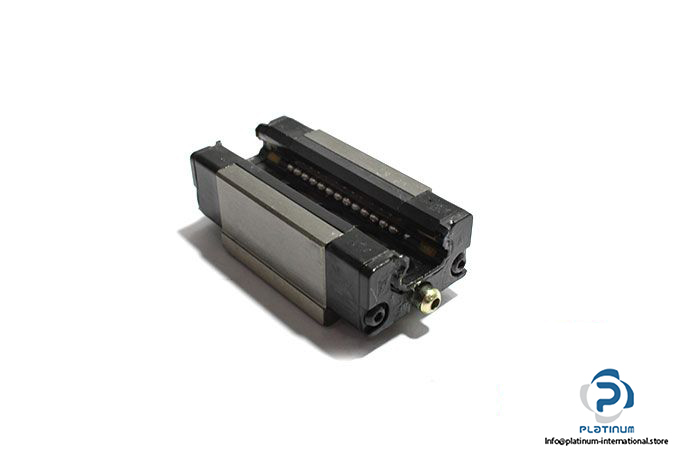

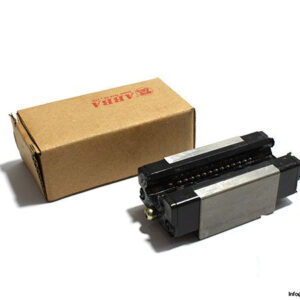

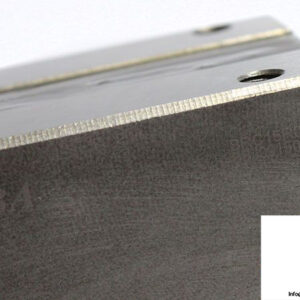

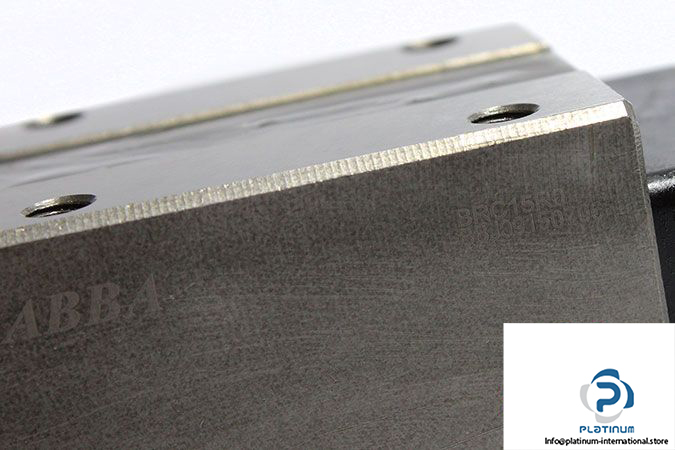

Manufacturer: ABBA

Type: Linear Guideway Block BRC

Model: BRC 15 R0

Size: 15 mm

Block Type: Slim-line block, Standard length, Extended height

Preload class: Z1, Light preload

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

Basic Load Ratings:

Dynamic C: 850 kgf

Static C₀: 1350 kgf

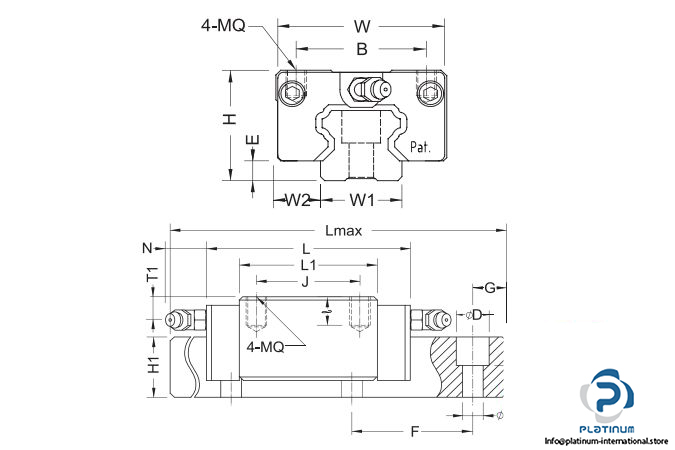

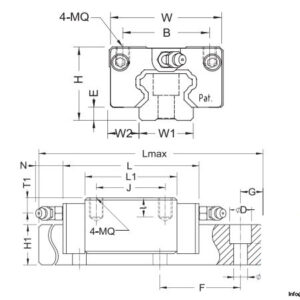

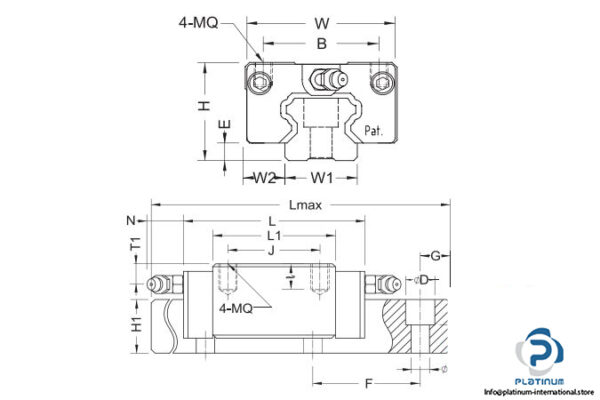

Dimensions

Total Height H: 28 mm

Block Width W: 34 mm

Block Length L: 66 mm

Weight: 0.2 kg
