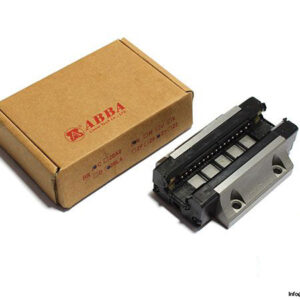

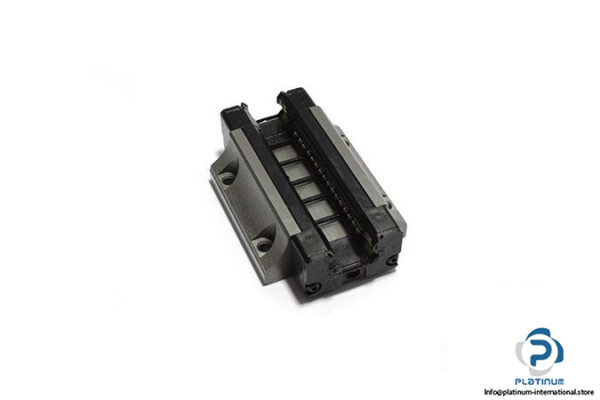

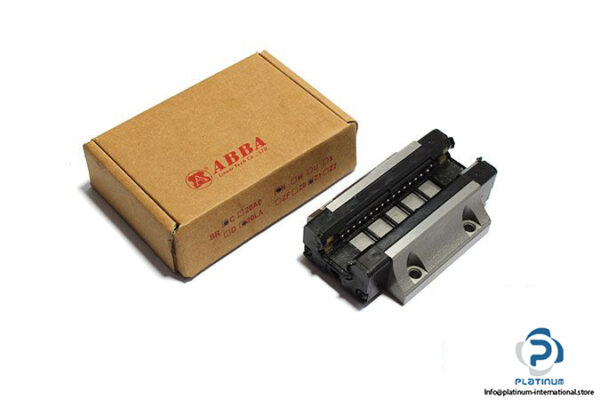

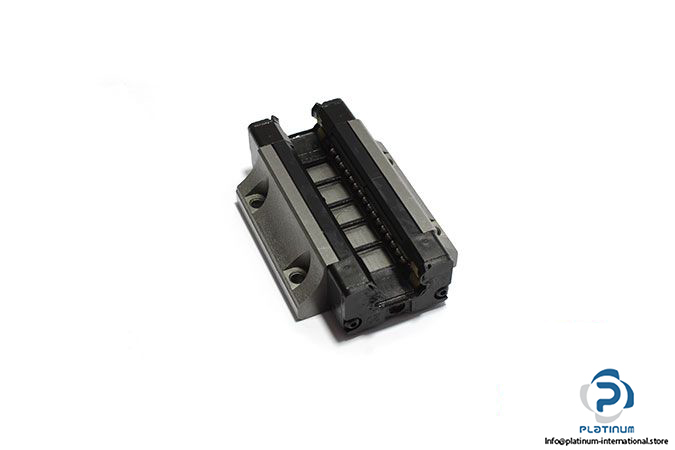

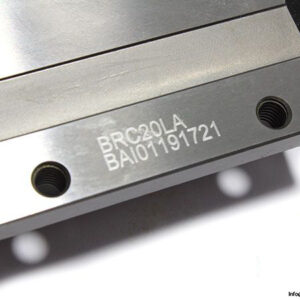

Manufacturer: ABBA

Type: Linear Guideway Block BRC

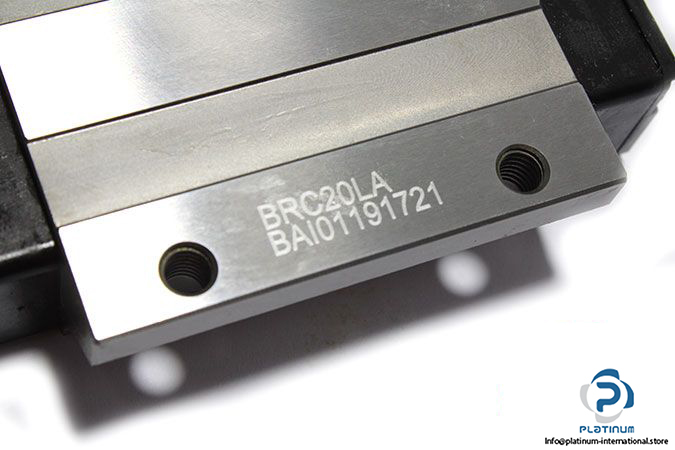

Model: BRC 20 LA

Size: 20 mm

Block Type: Flanged block, Extended length, Standard height

Preload class: Z1, Light preload

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

Basic Load Ratings:

Dynamic C: 1650 kgf

Static C₀: 3000 kgf

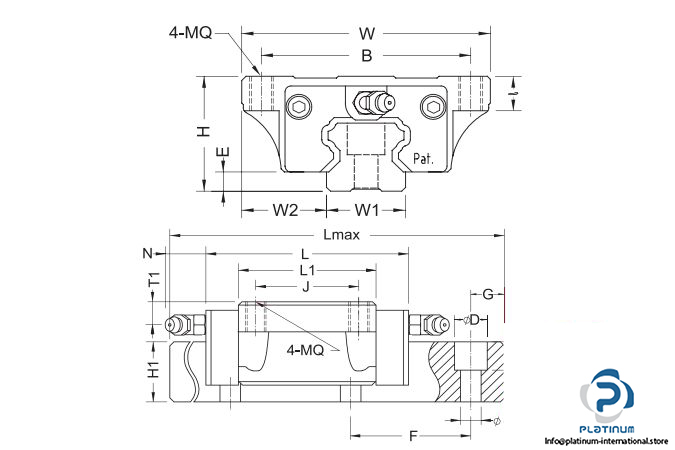

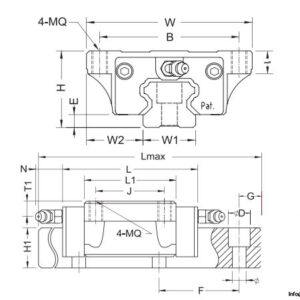

Dimensions

Total Height H: 30 mm

Block Width W: 63 mm

Block Length L: 92.4 mm

Weight: 0.52 kg
