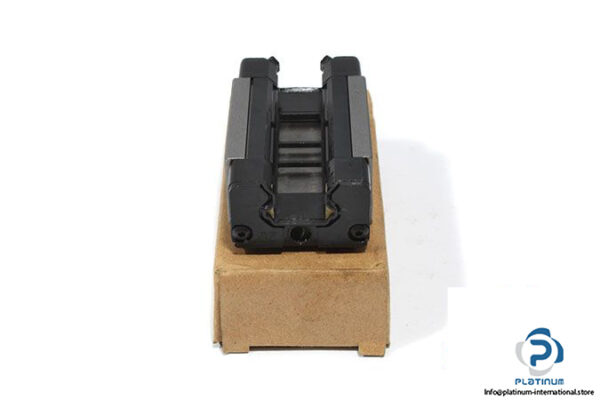

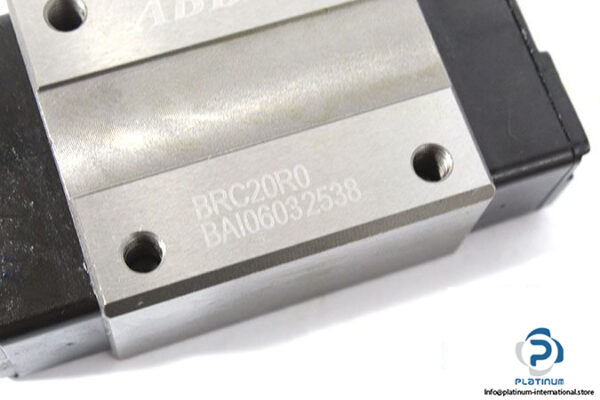

Manufacturer: ABBA
Type: Linear Guideway Block
Model: BRC 20R0

Size: 20
Block Type: Slim-line block, Standard length, extended height
Dimension:
Block Height: 30 mm
Block Width: 44 mm
Block Length: 77.8 mm
W2: 12 mm
E: 5 mm
Basic Load Rating:
Dynamic C: 1400 kgf
Static C₀: 2400 kgf
Static Moment:
M_x: 24 kgf*m
M_y: 14.6 kgf*m
M_z: 14.6 kgf*m
