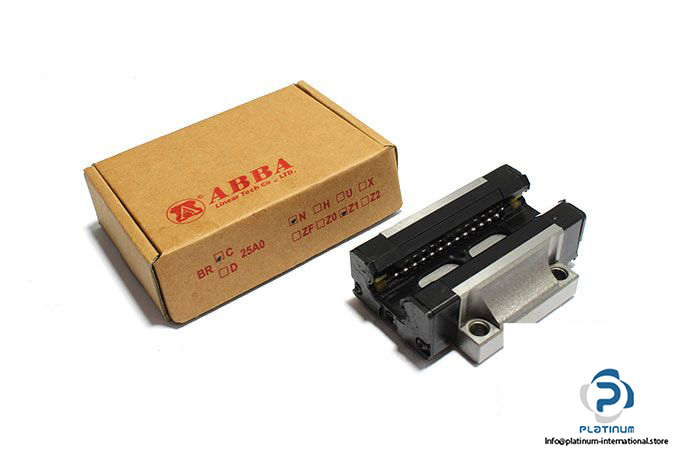

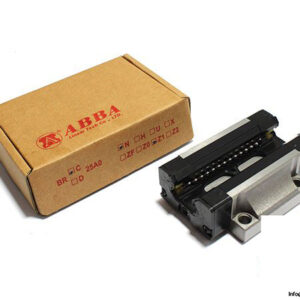

Manufacturer: ABBA

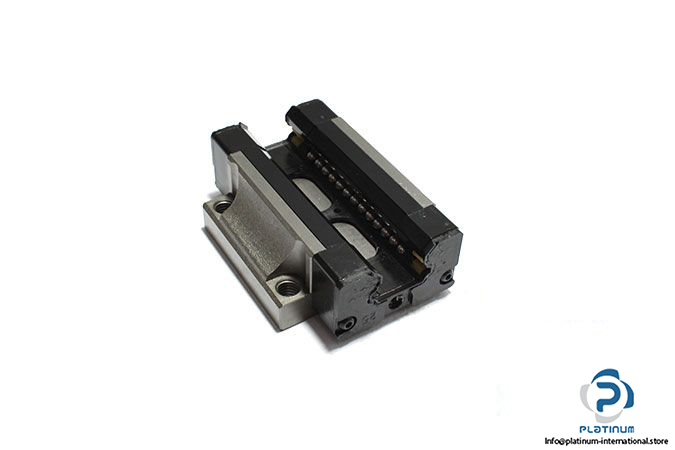

Type: Linear Guideway Block BRC

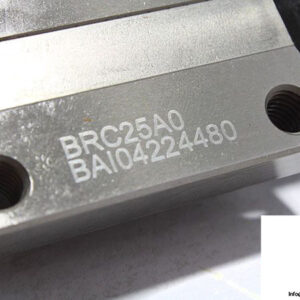

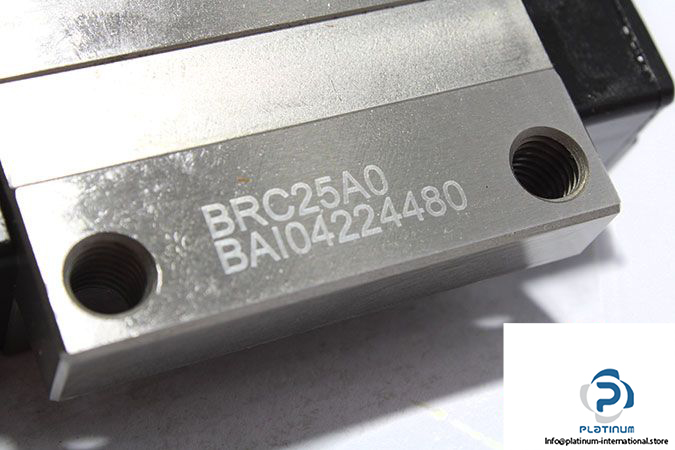

Model: BRC 25 A0

Size: 25 mm

Block Type: Flanged block, Standard length, Standard height

Preload class: Z1, Light preload

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

Basic Load Ratings:

Dynamic C: 1950 kgf

Static C₀: 3200 kgf

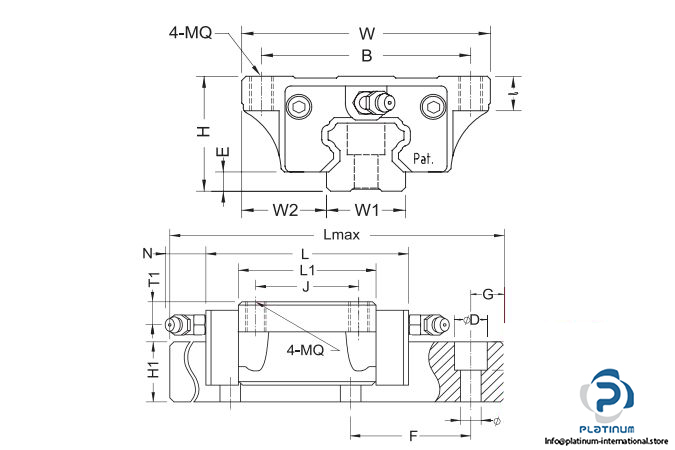

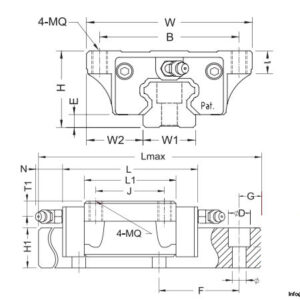

Dimensions

Total Height H: 36 mm

Block Width W: 70 mm

Block Length L: 88 mm

Weight: 0.61 kg
