Manufacturer: ABBA

Type: Linear Guideway Block BRC

Model: BRC 25 R0

Size: 25 mm

Block Type: Slim-line block, Standard length, Extended height

Preload class: Z0

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

Basic Load Ratings:

Dynamic C: 1950 kgf

Static C₀: 3200 kgf

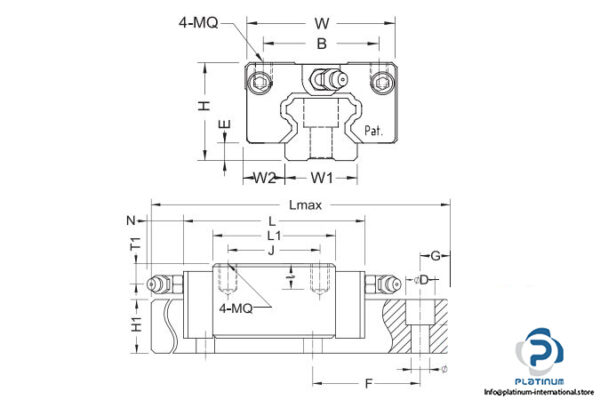

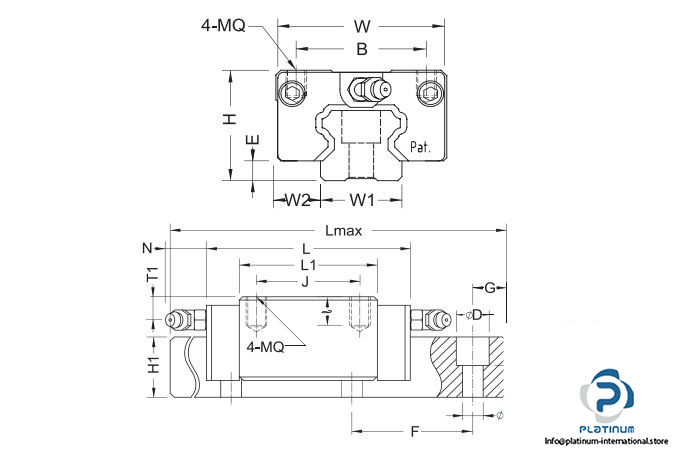

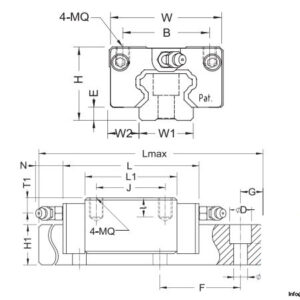

Dimensions

Total Height H: 40 mm

Block Width W: 48 mm

Block Length L: 88 mm

Weight: 0.54 kg
