Manufacturer: ABBA

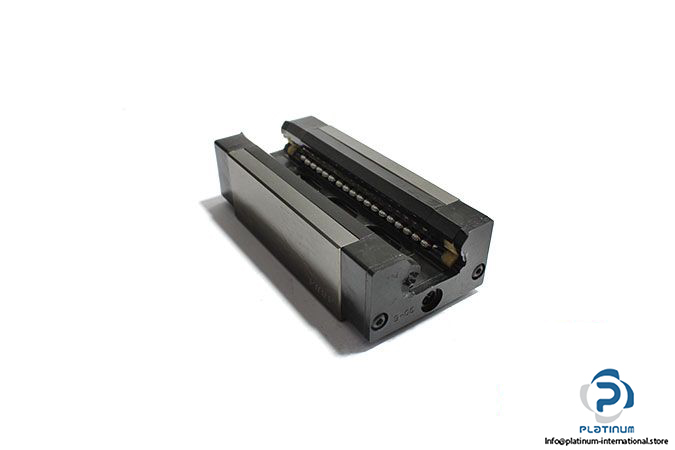

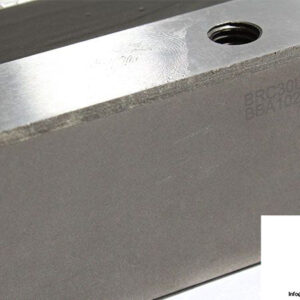

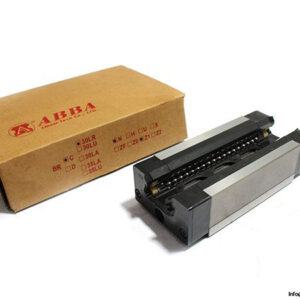

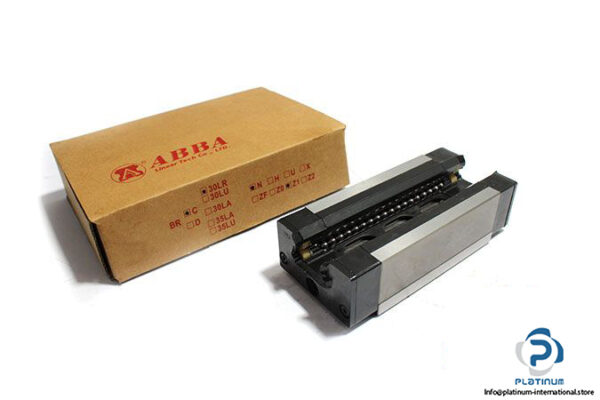

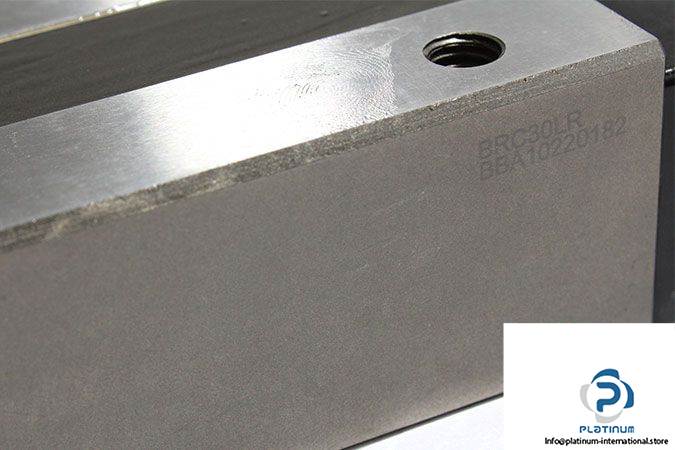

Type: Linear Guideway Block BRC

Model: BRC 30 LR

Size: 30 mm

Block Type: Slim-line block, Extended length, Extended height

Preload class: Z1, Light preload

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

Basic Load Ratings:

Dynamic C: 3600 kgf

Static C₀: 6400 kgf

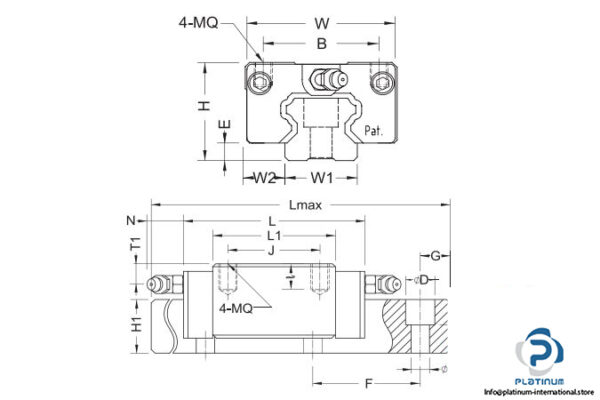

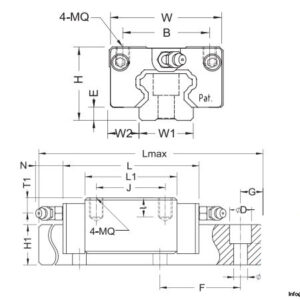

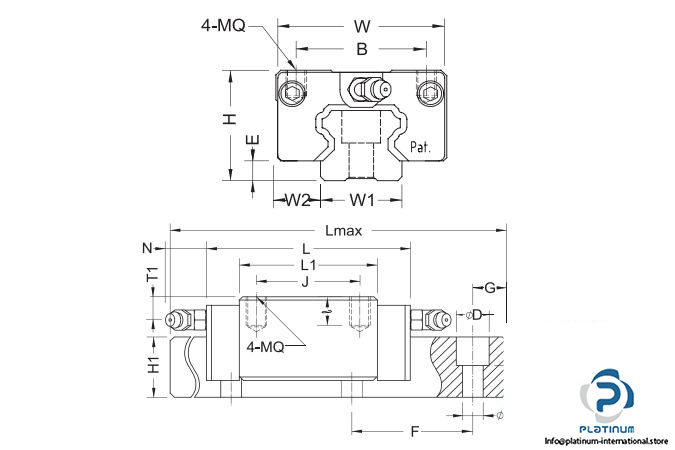

Dimensions

Total Height H: 45 mm

Block Width W: 60 mm

Block Length L: 131.3 mm
