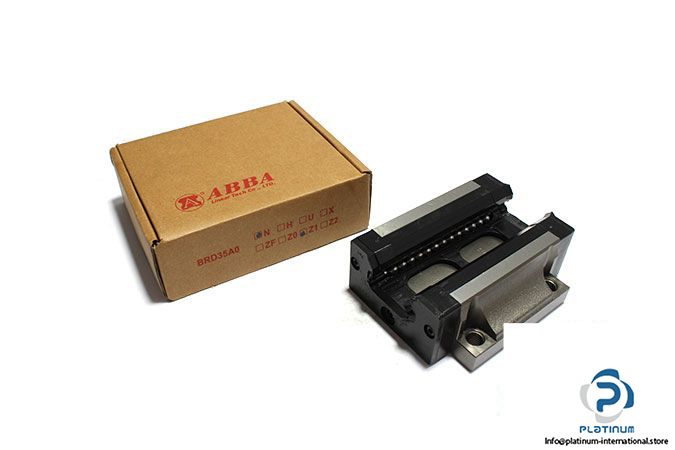

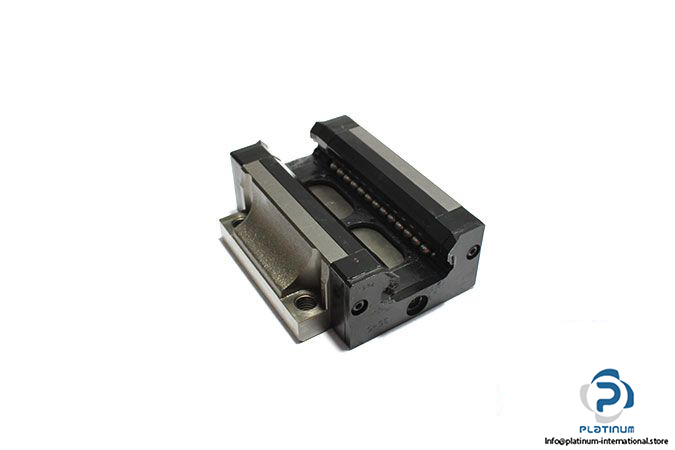

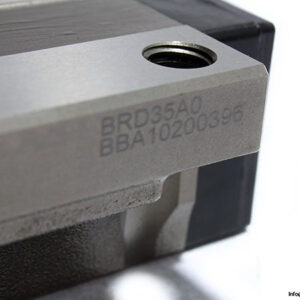

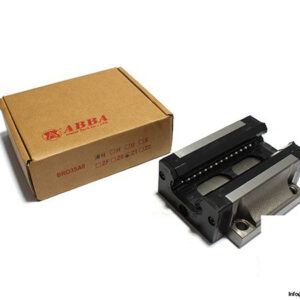

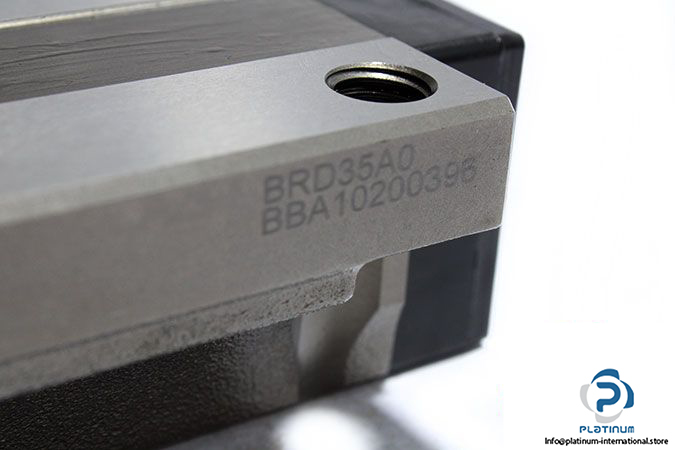

Manufacturer: ABBA

Type: Linear Guideway Block BRD

Model: BRD 35 A0

Size: 35 mm

Block Type: Flanged block, Standard length, Standard height

Preload class: Z1, Light preload

Accuracy class: N

Basic Load Ratings:

Dynamic C: 3850 kgf

Static C₀: 6200 kgf

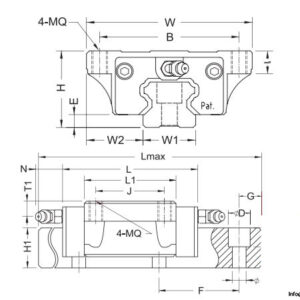

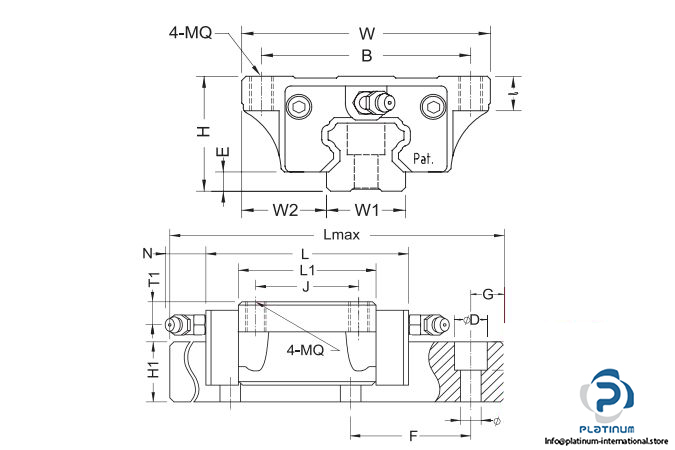

Dimensions

Total Height H: 48 mm

Block Width W: 100 mm

Block Length L: 109 mm

Weight: 1.6 kg
