Manufacturer: ABBA

Type: Linear Guideway Block BRD

Model: BRD 35 SU

Size: 35 mm

Block Type: Slim-line block, Short length, Standard height

Preload class: Z1, Light preload

Accuracy class: N

Basic Load Ratings:

Dynamic C: 2500 kgf

Static C₀: 3650 kgf

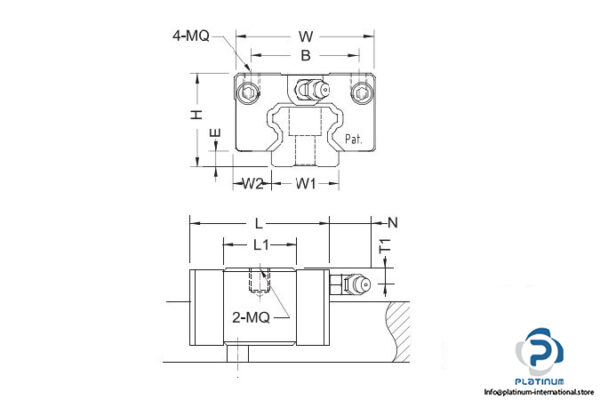

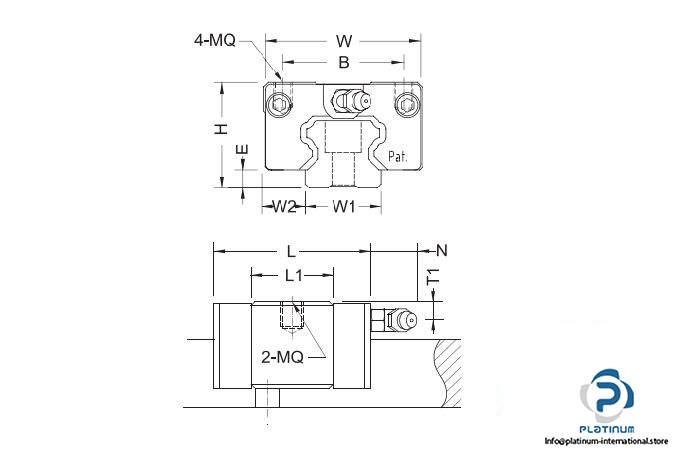

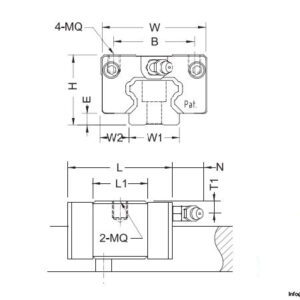

Dimensions

Total Height H: 48 mm

Block Width W: 70 mm

Block Length L: 74.7 mm

Weight: 0.8 kg
