Manufacturer: ABBA

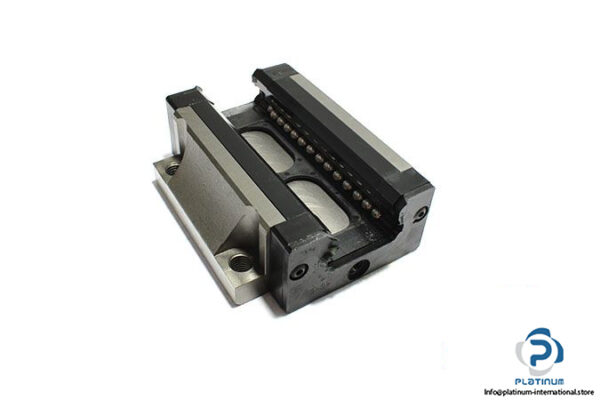

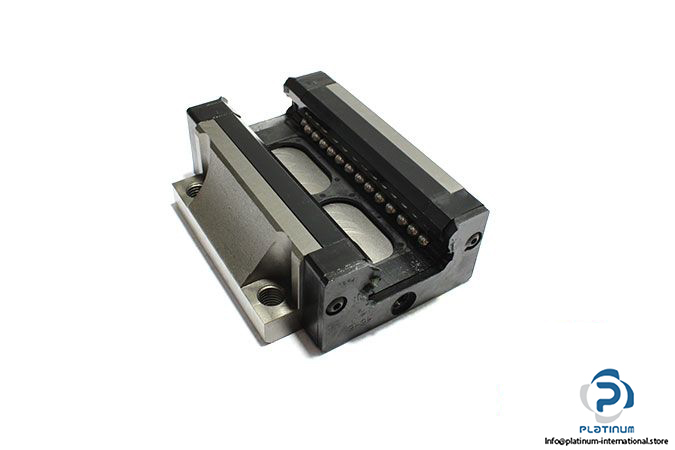

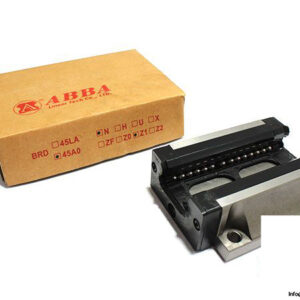

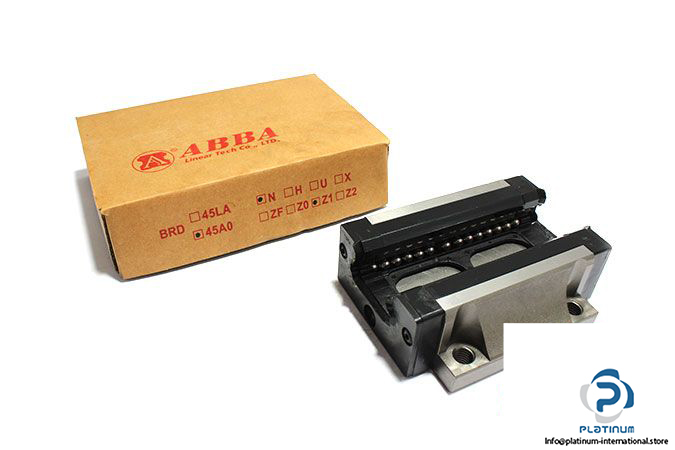

Type: Linear Guideway Block BRD

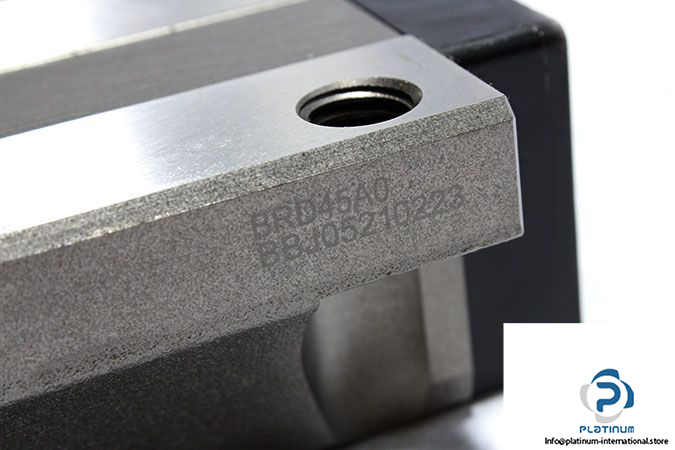

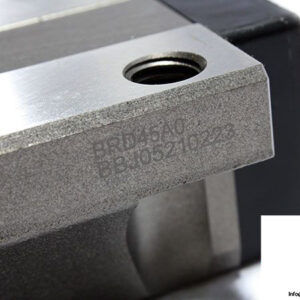

Model: BRD 45 A0

Size: 45 mm

Block Type: Flanged block, Standard length, Standard height

Preload class: Z1, Light preload

Accuracy class: N

Basic Load Ratings:

Dynamic C: 6500 kgf

Static C₀: 10500 kgf

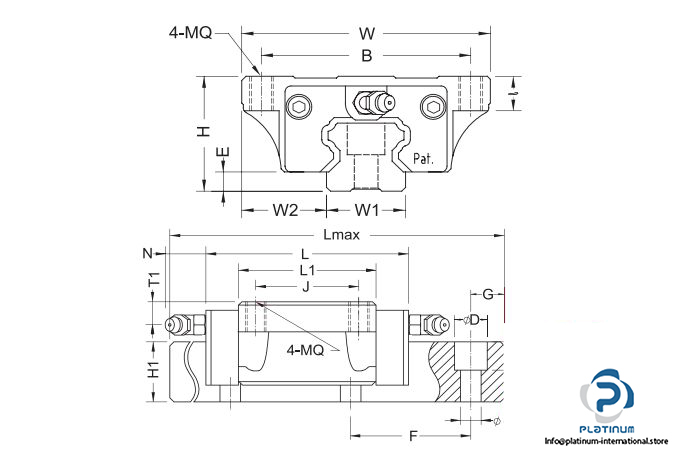

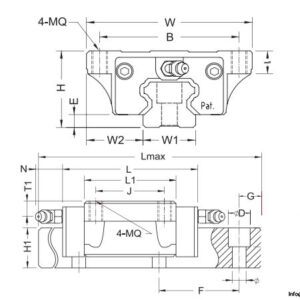

Dimensions

Total Height H: 60 mm

Block Width W: 120 mm

Block Length L: 138.2 mm

Weight: 2.8 kg
