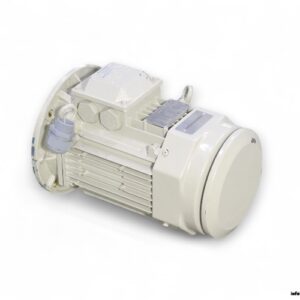

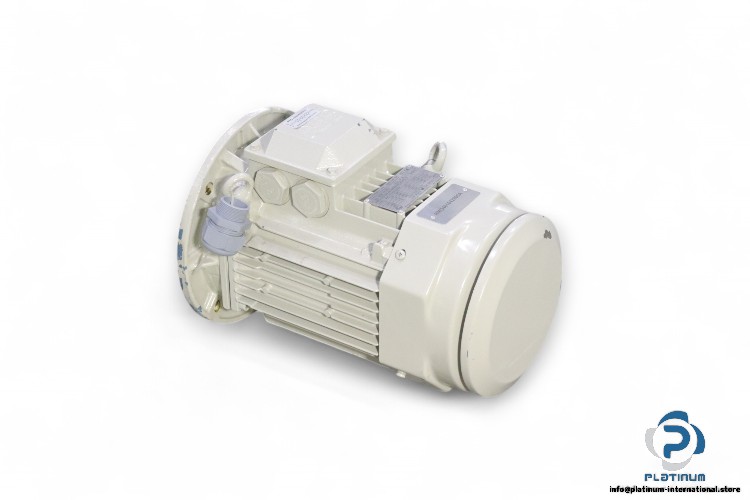

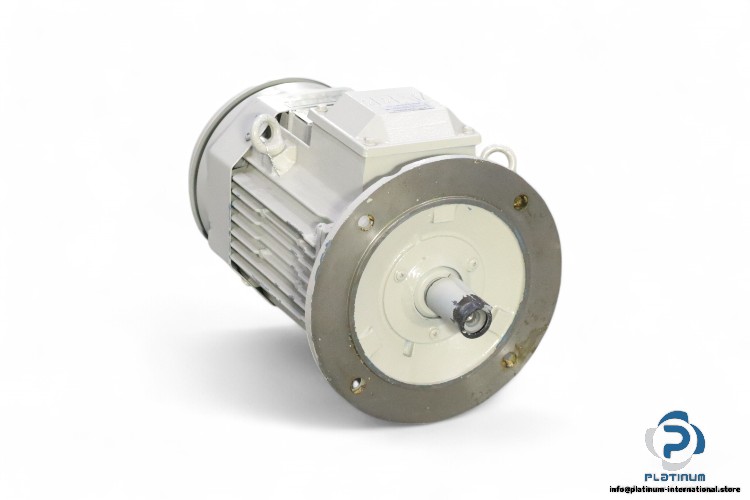

ABB M3BP 112MB 2 3-PHASE Electric Motor

The ABB M3BP 112MB 2 3-Phase Electric Motor is designed for high efficiency and durability in various industrial applications. With an explosion protection rating of Exna II T3 and a protection class of IP56, this motor offers reliable performance in demanding environments. It features a rated power of 4 kW, multiple rated voltages, and a rated speed of 2895/2895/3510 RPM, ensuring optimal efficiency and performance across different operating conditions.

Manufacturer: ABB

Type: 3-PHASE Electric Motor

Model: M3BP 112MB 2

Part NO.: 3GBP111322-BSB

Technical Specifications

• Explosion Protection: Exna II T3 (Ex)
• Frame Size: 112
• Rated Voltage [V]: 415Y/230D/460Y
• Rated Speed: 2895/2895/3510 RPM
• Rated Frequency: 50/50/60 Hz
• Rated Power: 4 kW
• Power Factor: 0.86/0.86/0.89
• Rated Current: 7.7/13.3/6.4 A
• Insulation Class: F
• Protection Class: IP56
