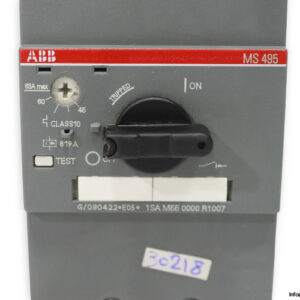

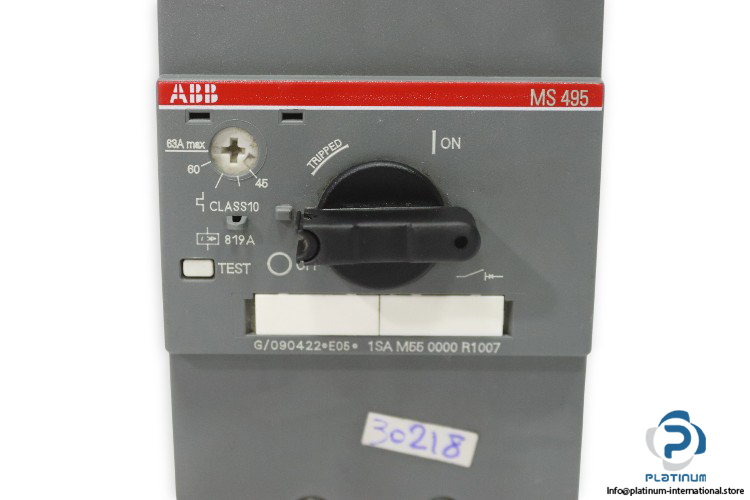

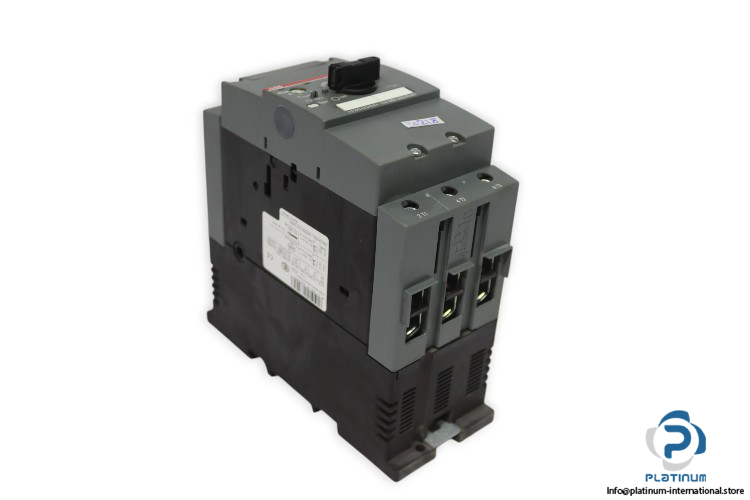

ABB MS495-63 MANUAL MOTOR STARTER

The ABB MS495-63 is a robust manual motor starter designed for reliable motor protection, control, and performance. With high breaking capacity and adjustable settings, it is ideal for industrial applications requiring dependable overload and short-circuit protection.

Manufacturer: ABB
Type: Manual Motor Starter
Model: MS495-63

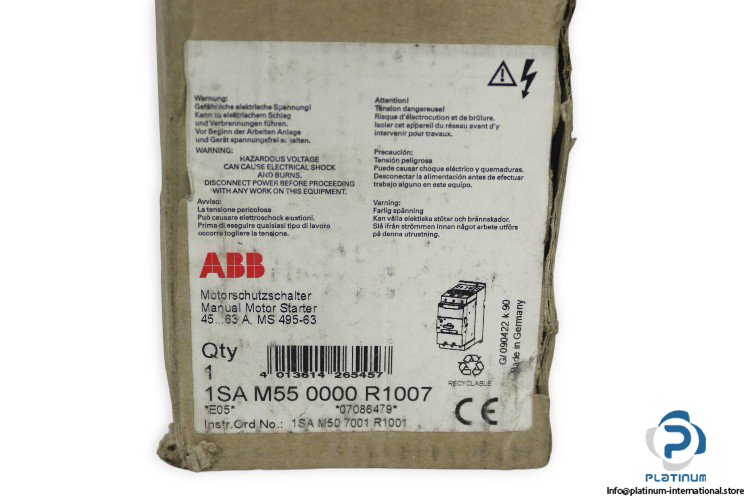

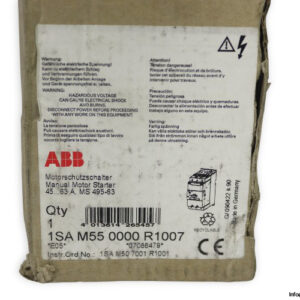

Product ID: 1SAM550000R1007
SN: 4 013614 265457
Inst Ord No.: 1SA M50 7001 R0001
Ref No.: 07086479

Technical Information

• Number of Poles: 3
• Rated Current (Ie): 63
• Setting Range: 45 / 63 A
• Rated Impulse (Uimp): 6 kV
• Rated Voltage (Main Circuit): 690 V AC
• Breaking Capacity (Icu): (230 V AC) 100 kA, (400 V AC) 50 kA, (690 V AC) 5 kA
• Short-Circuit Current Setting (Ii): 819 A
• Actuator Type: Rotary Handle
• Terminal Type: Screw Terminals
• Service Frequency: 50/60 Hz
• Dimensions (W x D x H): 70 x 174 x 165 mm
• Protection Class: Housing IP20
• Operating Temperature: -20 / 70 °C
