Manufacturer: Abi

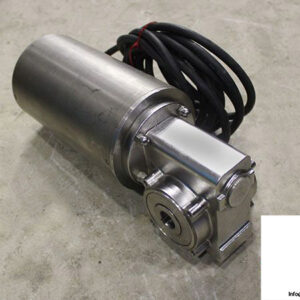

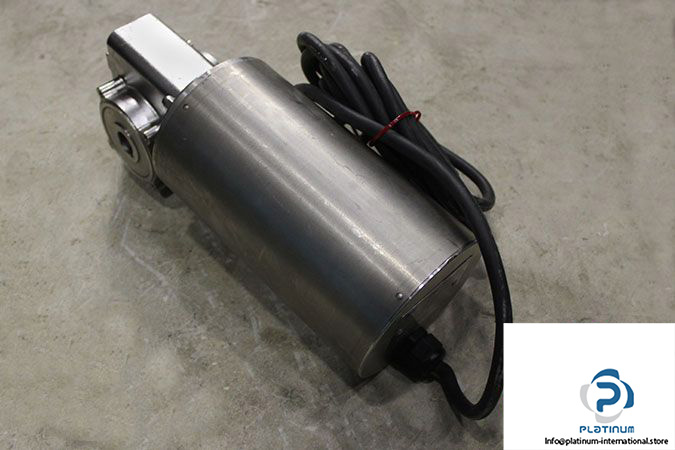

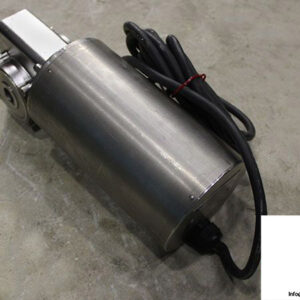

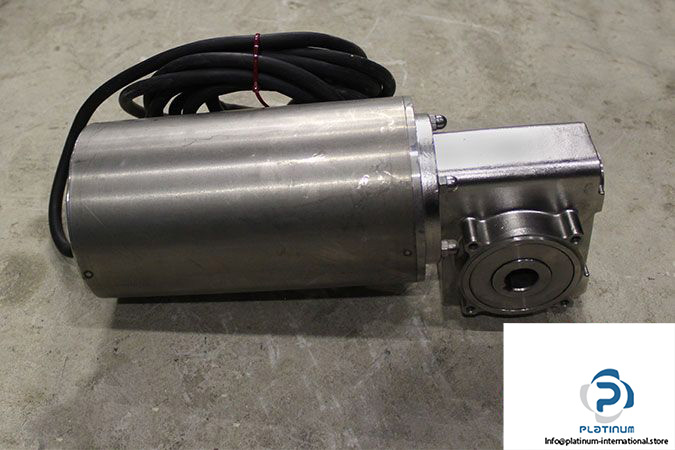

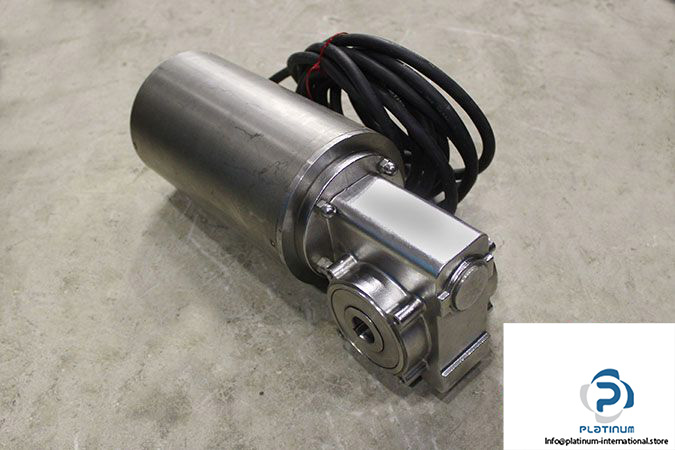

Type: Stainless Steel Worm Gear Motor
Model: WRSH270/MRS14d-4
Speed [r/min]: 76 / 4
Total Ratio [I]: 18.5
Rated Torque [Nm]: 20
Hollow Shaft: 20 mm
Motor Power [W]: 370
Number of Pole: 4
Range Voltage 50Hz [V]: 346-420
Rated Current [A]: 0.9
Range Voltage 60Hz [V]: 400-480
Rated Current [A]: 0.9
Power Factor: 0,78
Thermal Class: F
Duty: Cont(S1-100%)
Protection Class [IP]: 69k
Mounting Position [IM]: B6
Weight [kg]: 15.2
