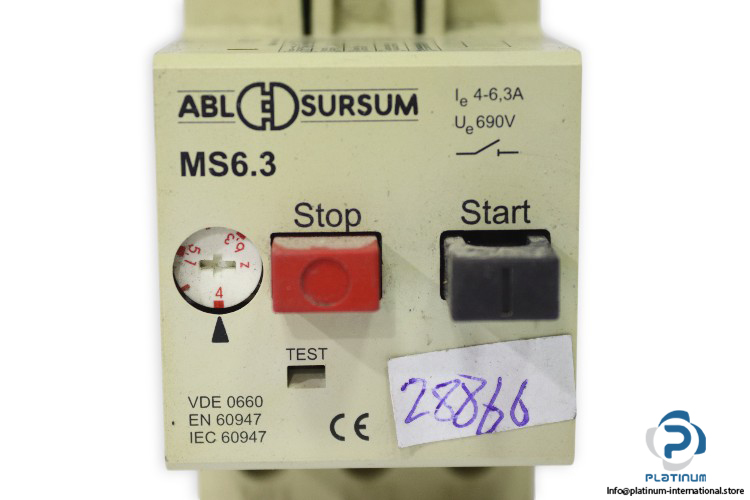

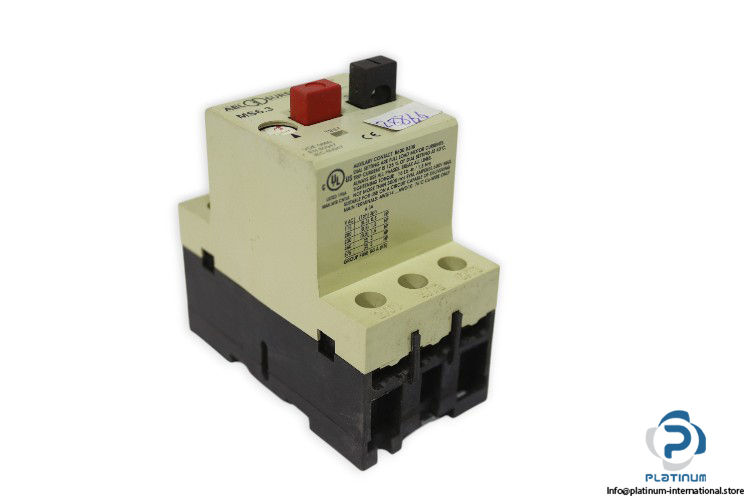

ABL SURSUM MS6.3 MANUAL MOTOR CONTROLLER
The ABL Sursum MS6.3 is a reliable manual motor controller designed for safe switching and protection of motors. With a wide current range and high interrupting capacity, it ensures dependable performance in industrial electrical applications.
Manufacturer: Abl Sursum
Type: Manual Motor Controller (Switching Device)
Model: MS6.3
Technical Information
- Current Range: 4 to 6.3 A
- Rated Operational Voltage: 690 V

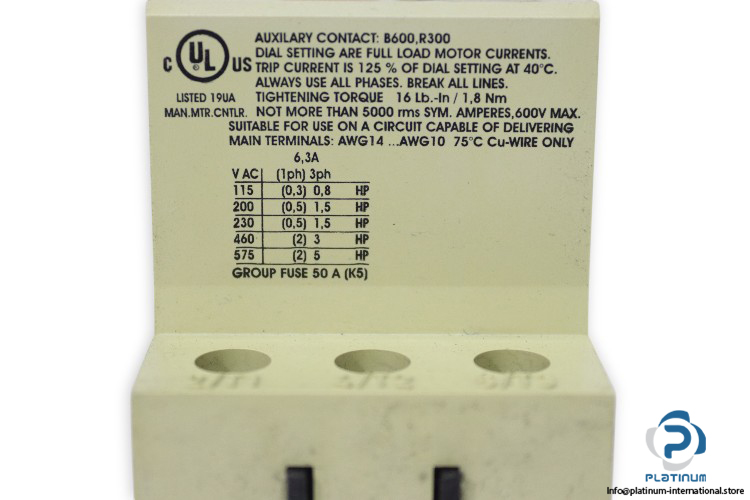

- Auxiliary Contact: B600, R300
- Trip Current: 125% of Dial Setting at 40 °C
- Tightening Torque: 16 lb·in / 1.8 Nm
- Main Terminals: AWG 14 … AWG 10, 75 °C Cu-Wire Only
- Note: Not more than 5000 RMS SYM. amperes, 600V Max
- Power: @200 V (1ph) 0.5 HP / (3ph) 1.5 HP; @575 V (1ph) 2 HP / (3ph) 5 HP
- Group Fuse: 50 A (K5)
- Interrupting Capacity: 5 kA
- Short Circuit Current: @500 V = 50 kA, @690 V = 35 kA
