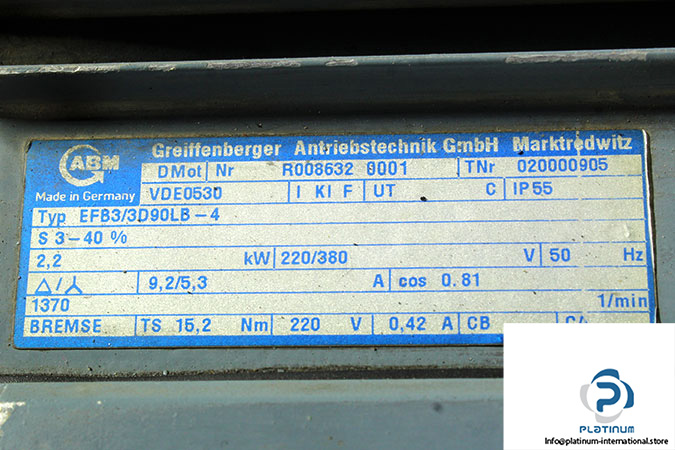

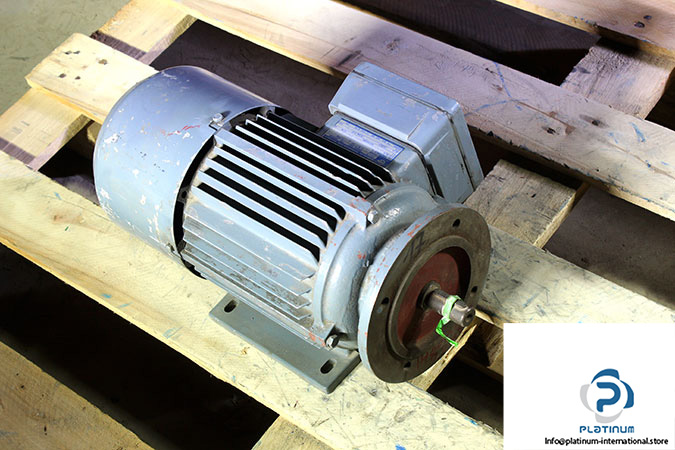

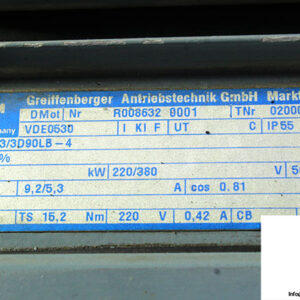

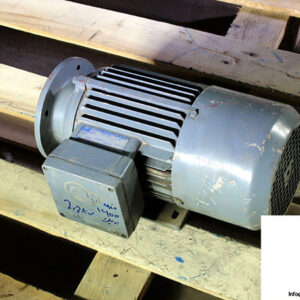

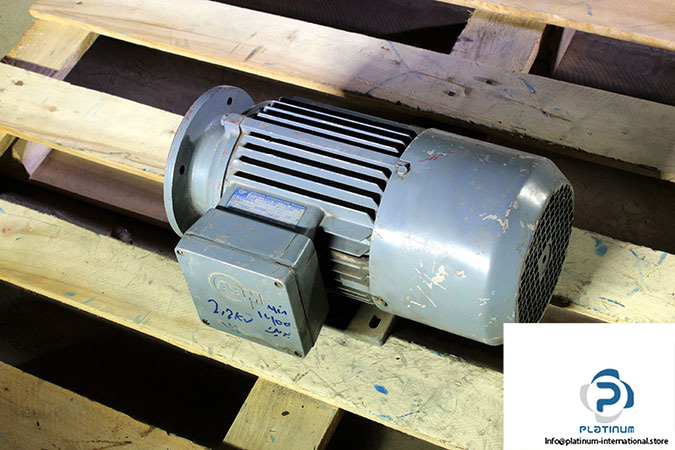

Manufacturer: ABM
Type: Brake Motors
Model: EFB3/3D90LB-4

Motor Speed [r/min]: 1370
Motor Power [kW]: 2.2
Rated Voltage [V]: 230-380 Delta/Star
Nominal Current [A]: 9.2/5.3 Delta-Star
Motor Frequency [Hz]: 50
Cos Phi: 0.81
Thermal Class: F
Duty: S3-40%
Protection Class [IP]: 55
Brake Torque [Nm]: 15.2
Brake Voltage [V]: 220
Brake Current [A]: 0.42
Weight [kg]: 23,8
