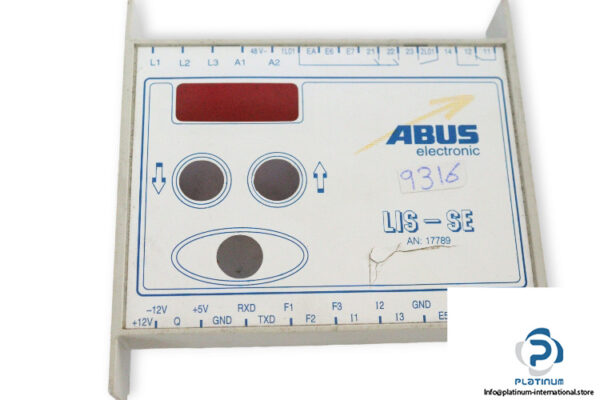

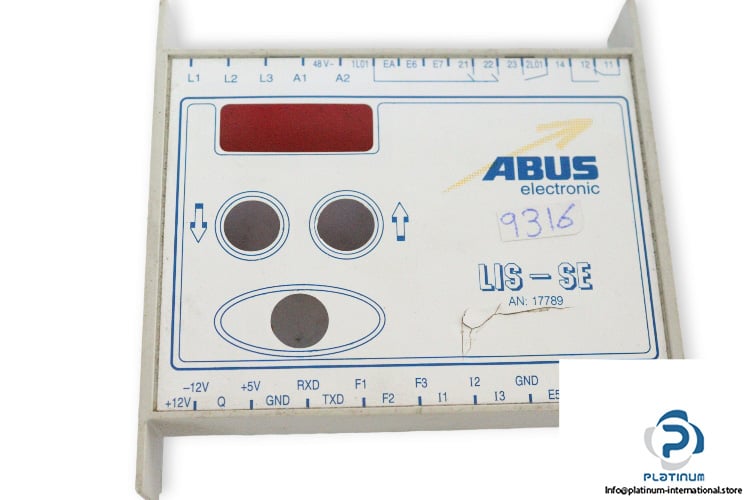

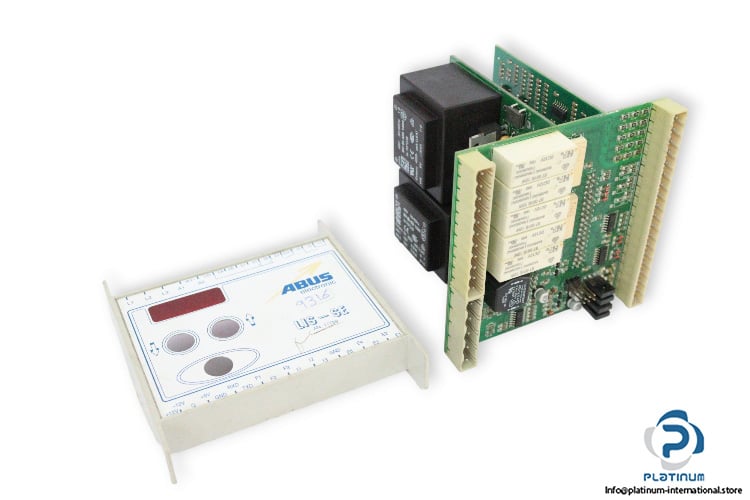

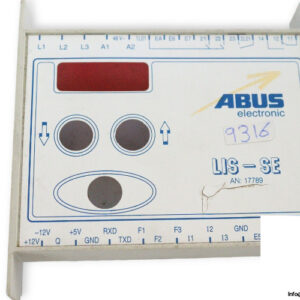

Manufacturer: ABUS
Type: Load Indication System
Model: LIS-SE
Part No.: 17789

Power Supply Voltage: 48 V AC
Input Voltage range: 35 … 48 V AC
Measuring range: 0 … 627 V AC
Transformer output voltage: 0 … 7.24 V AC
Power Supply Frequency: 50 … 60 Hz
Switch Contacts Rating: 250 V AC,8 A
Max. Power: 15 VA
Output Voltage for LAZ: 5 V, max. 250 mA
Indicator signal Q: Serial data protocol ± 12V
Maximum acceleration time for hoist
Motor:
Low speed: 150 ms,High speed: 460 ms
