Manufacturer: ACE CONTROLS

Type: SHOCK ABSORBER

Series: MA

Model: MA 3350M

Application Areas:

• Linear Slides
• Swivel Units
• Turntables
• Portal Systems
• Machines And Plants
• Tool Machines

Material

Outer body: Nitride hardened steel

Piston rod: Hard chrome plated steel

Return spring: Zinc plated or plastic-coated steel

Minimum Return Force: 45 N

Max. Energy Capacity Per Cycle: 340 Nm

Max. Return Force: 135 N

Max. Energy Capacity Per Hour: 180 kNm

Return Force: 45 … 135 N

Return Time:  0.06 s

Stroke Length: 1.91 inch (48.5 mm)

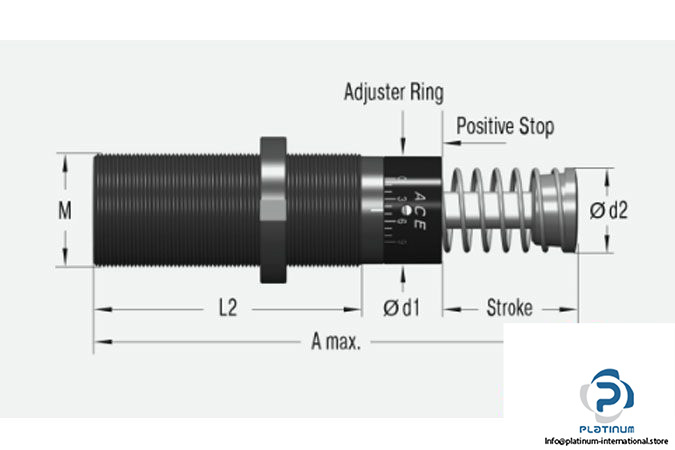

Length ( L2 ): 4.25 inch

Length ( d1 ): 1.18 inch

Length ( d2 ): 1.00 inch

Diameter and Step for Threaded Surface: M33 x 1.5

Temperature Range: -12 … 70 ^°C

Weight: 0.62 kg
