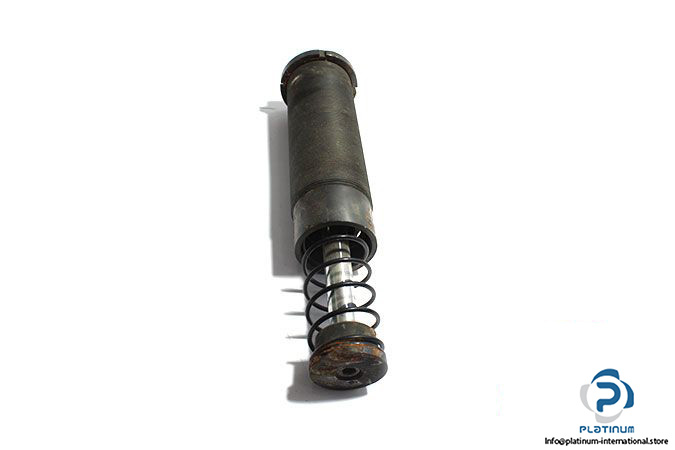

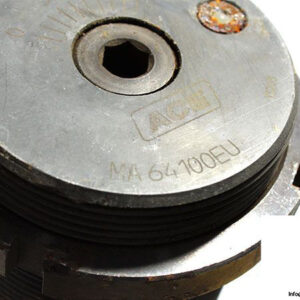

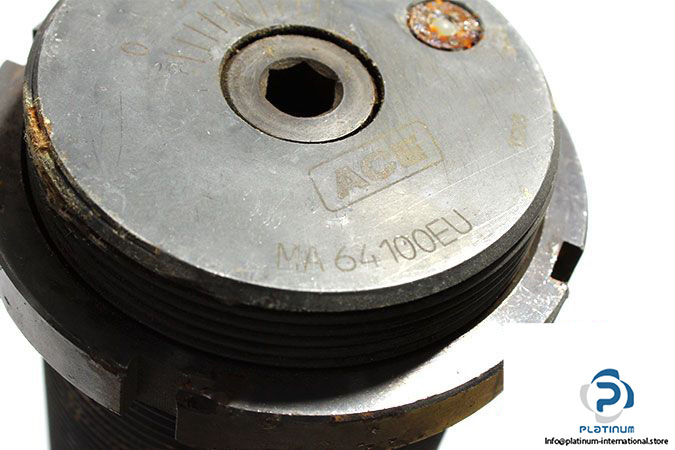

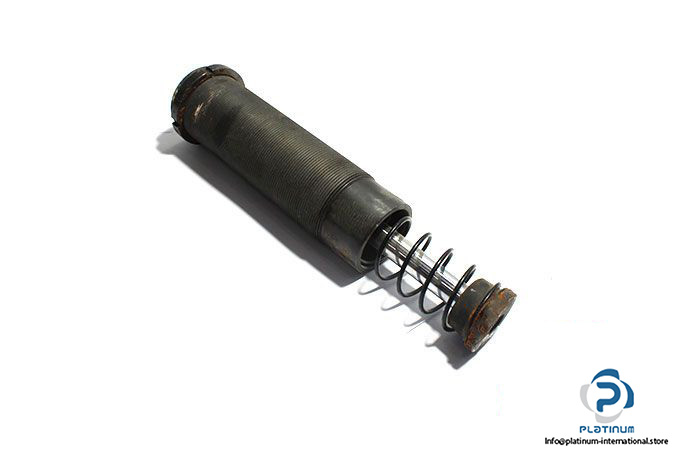

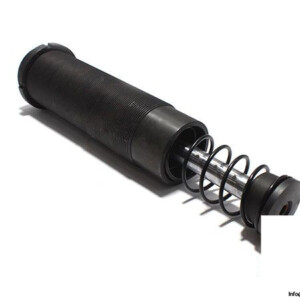

Manufacturer: ACE CONTROLS

Type: Adjustable Shock Absorber

Model: MA 64100EUM

Material

Outer body: Nitride hardened steel

Piston rod: Hard chrome plated steel

Rod end button: Hardened steel

max. Return Force: 61.0 lbs

min. Return Force: 23.5 lbs

Energy capacity: 1,700,000 in-lbs/h

Return Time: 0,34 s

Stroke Length: 3.91 inch

Rod Diameter: 0.76 inch

Piston Diameter: 1.90 inch

Total length: 12.8 inch

Diameter and Step for Threaded Surface: M64 x 1”

Temperature Range: 10 °F to 150 °F

Weight: 3.8 kg
