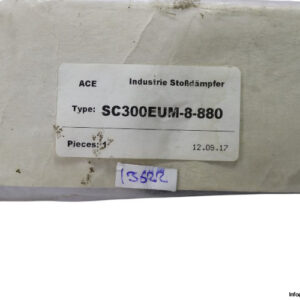

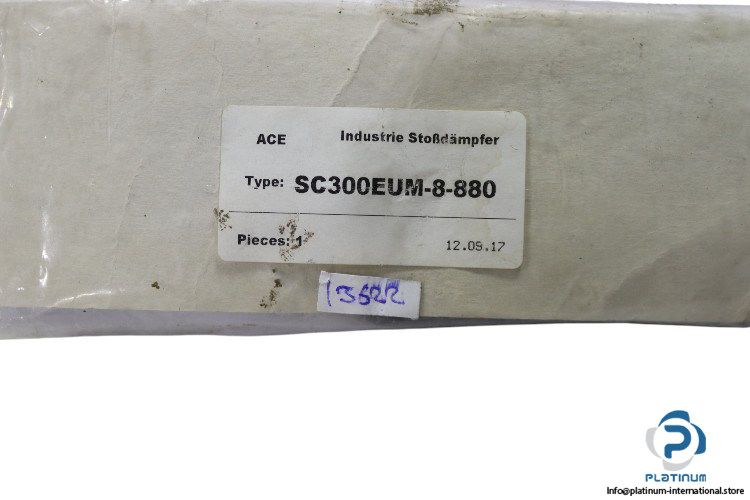

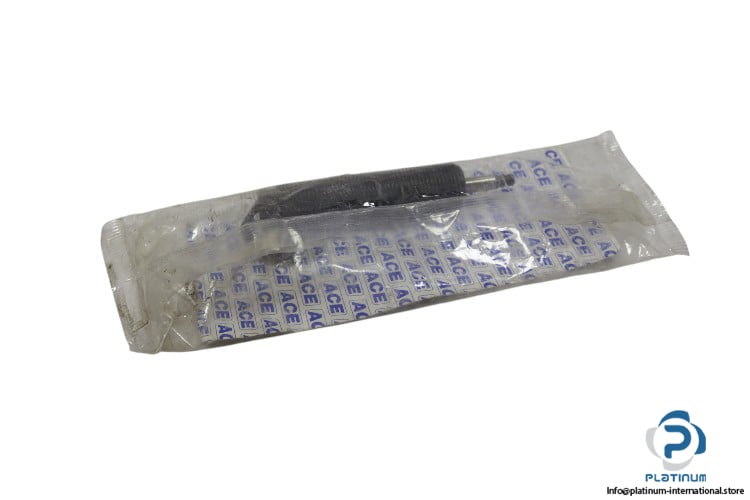

ACE SC300EUM-8-880 Shock Absorber
The ACE SC300EUM-8-880 Shock Absorber is designed for high-performance shock absorption in industrial applications. With a broad energy capacity and adjustable return force, it is engineered to handle varying weights and impact velocities, making it ideal for a range of machinery and equipment. Its durable construction ensures reliability in demanding environments.
Manufacturer: ACE
Type: Shock Absorber
Model: SC300EUM-8-880
Technical Data:
- Energy Capacity: 45,000 Nm/h
- Effective Weight Min.: 135 kg
- Effective Weight Max.: 680 kg
- Hardness: -8
- Return Force Min.: 8 N
- Return Force Max.: 18 N
- Return Time: 0.2 s
- Side Load Angle Max.: 5°
- Impact Velocity Range: 0.09 m/s to 3.66 m/s (Other speeds on request)
- Operating Temperature Range: 0 °C to 66 °C
- Mounting: In any position
Material:
- Outer Body: Steel corrosion-resistant coating
- Piston Rod: Hardened stainless steel
- Stroke Length: 20 mm
- Rod Diameter: 6.3 mm
- Diameter and Step for Threaded Surface: M20x1.5
- Temperature Range: -10°C to 80°C
