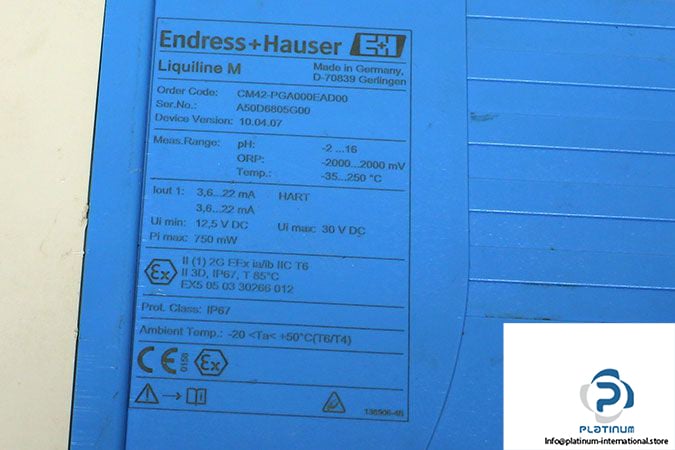

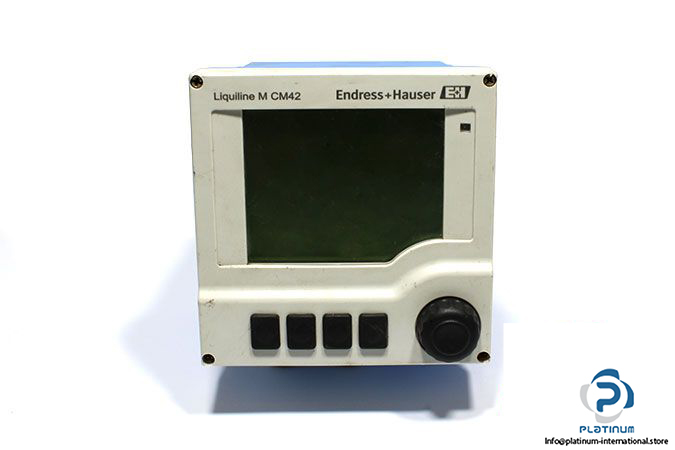

Manufacturer: Endress + Hauser

Type: Two-wire transmitter

Model: liquiline M

MRN: CM42 -PGA000EAD00

Sensor Input: pH (glass/ISFET) / ORP

Measuring ranges:

pH: -2 …16

ORP: -2000 … 2000 mV

Temp.: -35 … 250 °C

Outputs: 4 … 20 mA HART

Power supply: 12.5 V dc … 30 V ac

Approval: ATEX II (1)2G Ex ib [ia Ga] IIC T6 Gb / II 3 D tD A22 IP67 T85°C

Weight: 1.31 kg
