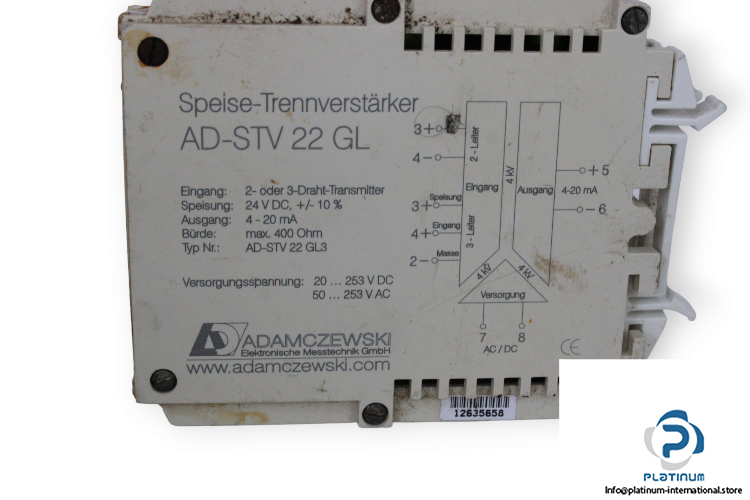

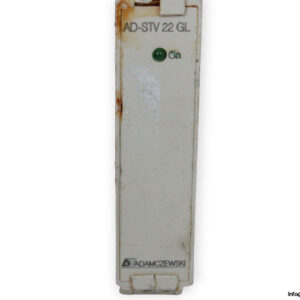

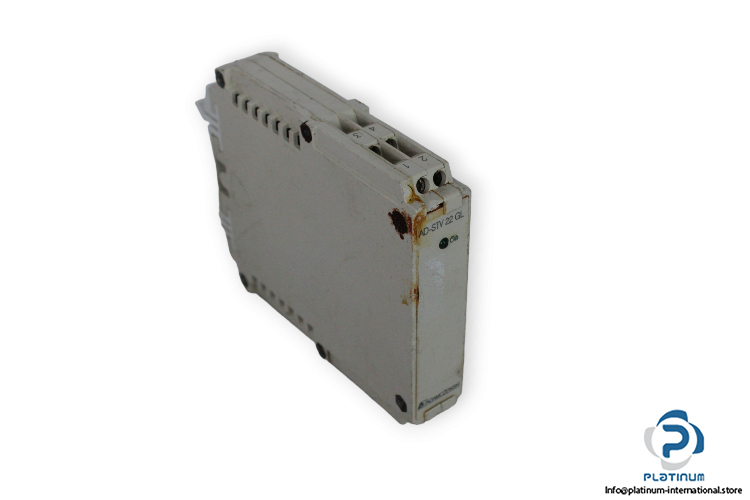

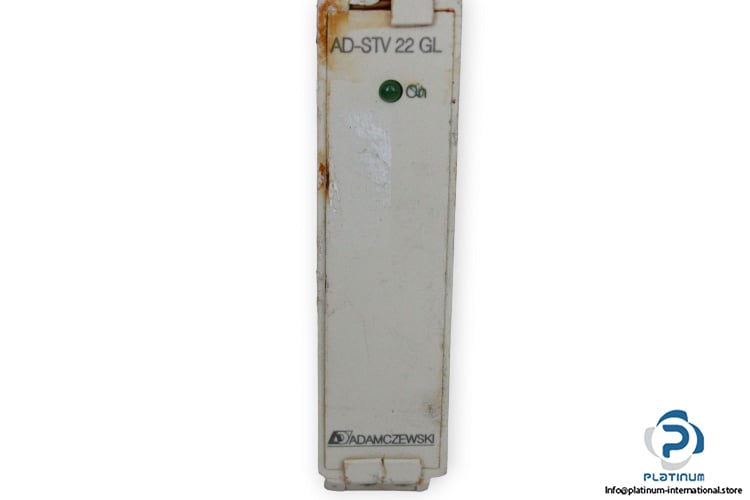

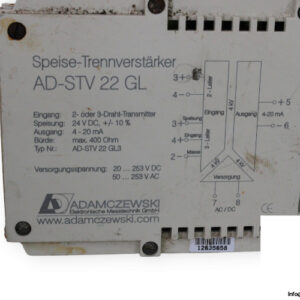

Manufacture: Adamczewski
Type: Supply Isolation Amplifier
Model: ADSTV22GL

Application: Supply of 2-wire transmitters like pressure or temperature transmitters and galvanic signal isolation
Supply Voltage range: 20 … 253 V DC; 50 … 253 V AC
Power consumption: 1,5 W, 3 VA
Input current Measuring range: 0 … 20 mA; 4 … 20 mA
Input resistance: 50 Ohm
Output current range: 0 … 20 mA; 4 … 20 mA
Max. output burden: < 400 Ohm
Housing: DIN rail 35mm
Pollution degree: 2
Type of protection: IP 20
Ambient temperature: -10 … 50 °C
Dimensions: 103 x 81 x 18 mm
