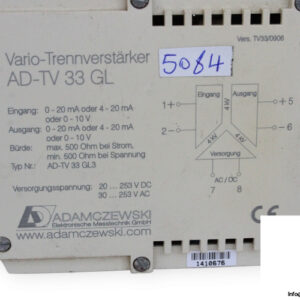

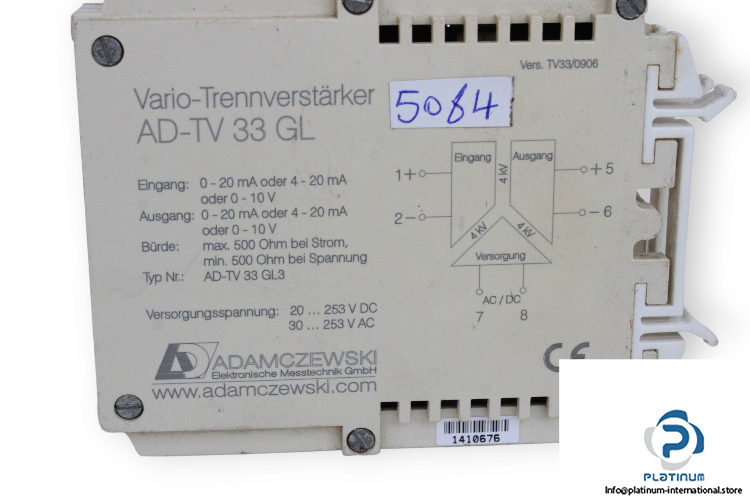

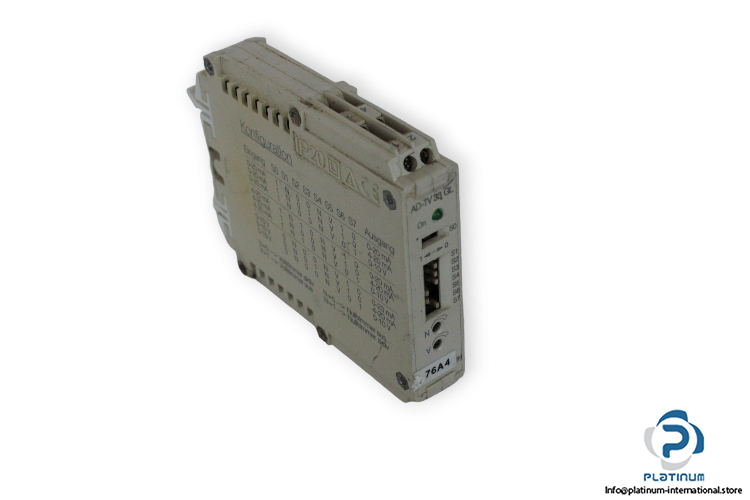

Manufacture: Adamczewski
Type: Isolation Amplifier
Model: AD-TV 33 GL

Application
For load amplification, galvanic decoupling and conversion of impressed standard signal measuring magnitudes
Specification

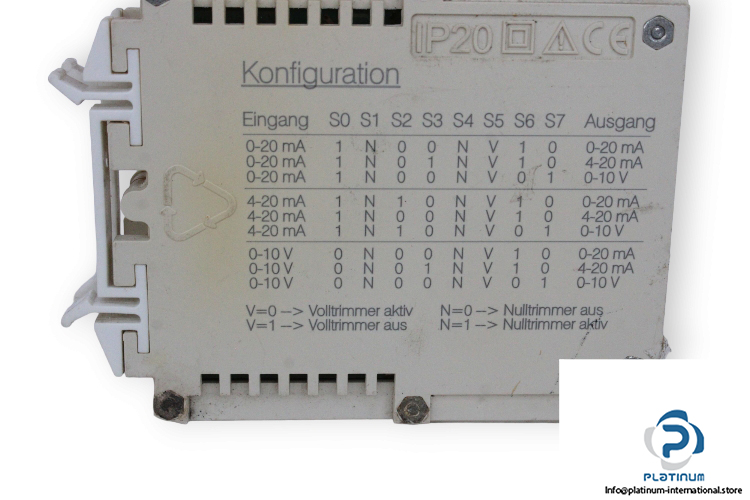

– all standard signals at input and output are freely selectable

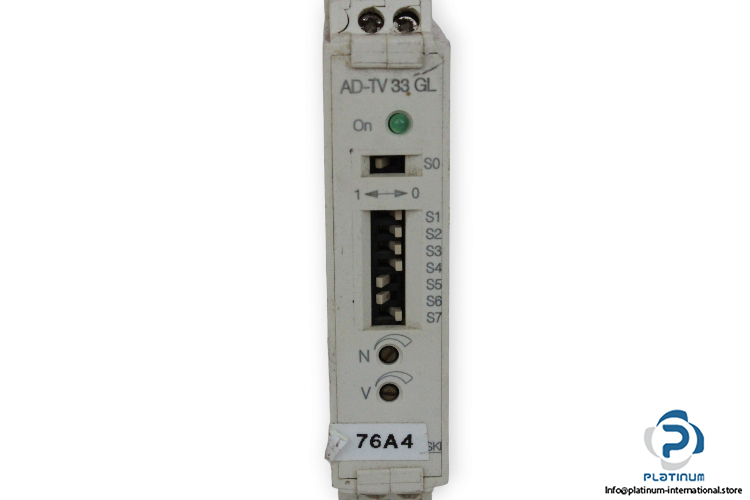

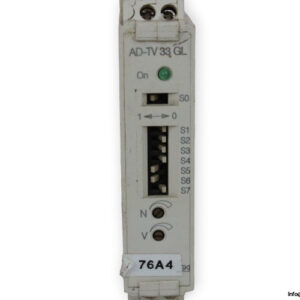

– switchable zero-point trimmer and final value trimmer
– high output load
– 18 mm narrow housing
Power supply voltage: 20 … 253 V DC / 30 … 253 V AC (50-60Hz)
Input: 0 … 20 mA/4 … 20 mA/0 … 10 V
Output: 0 … 20 mA/4 … 20 mA/0 … 10 V
Output load: max. 500 Ohm (current), min. 500 Ohm (voltage)
Construction: 1-channel switchboard housing
Ambient temperature: 0 … +50°C
Protection degree: IP 20
Dimensions: 78 x 18 x 103 mm
