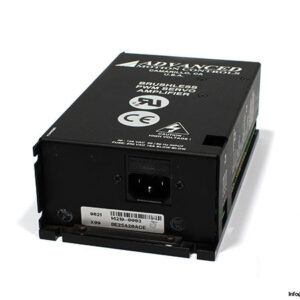

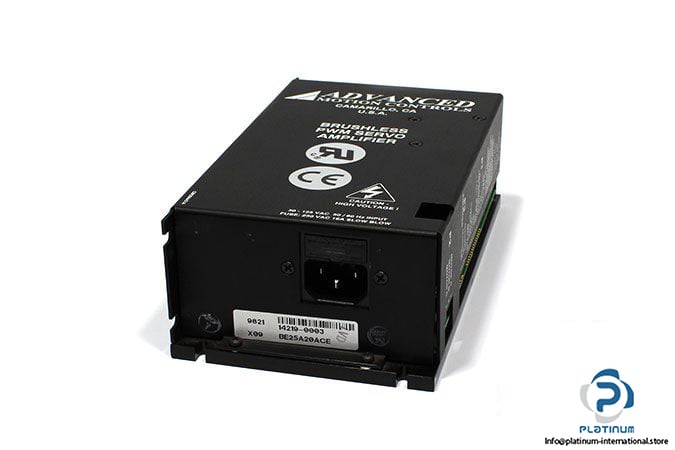

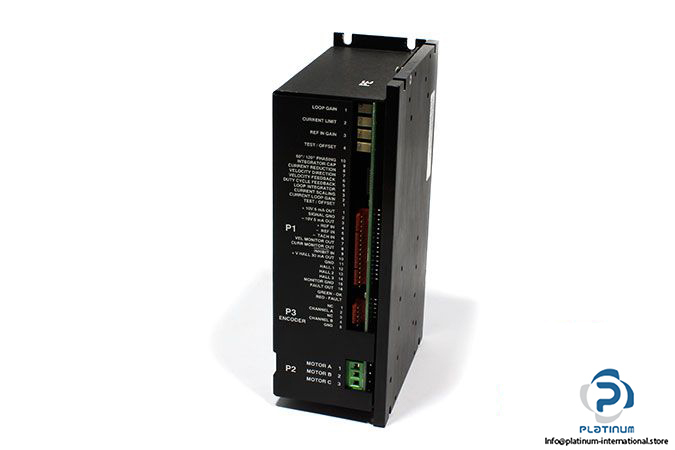

ADVANCED Motion Controls BE25A20ACE Brushless PWM Servo Amplifier

The BE25A20ACE is a robust brushless PWM servo amplifier from ADVANCED Motion Controls, designed for high-performance motion control applications. It supports encoder velocity mode and delivers precise control in demanding automation environments.

Manufacturer: ADVANCED Motion Controls
Type: Brushless PWM Servo Amplifier
Model: BE25A20ACE

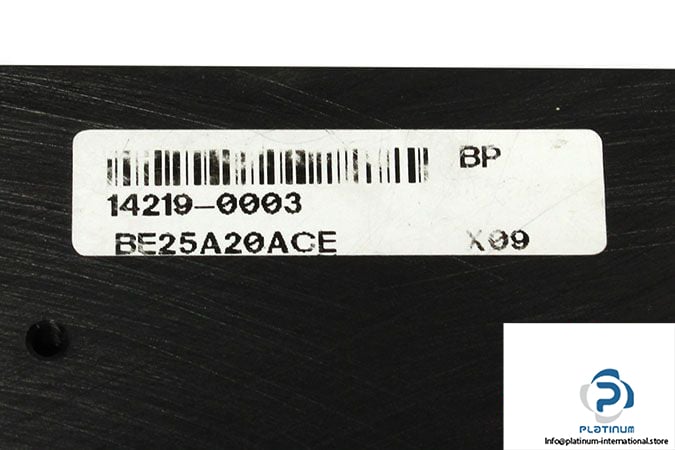

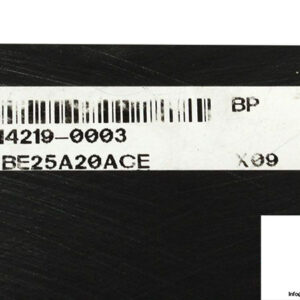

Part No.: 14219-0003

Technical Information

• Input Voltage: 30 “ 125 VAC
• Input Frequency: 50/60 Hz
• Fuse Voltage: 250 VAC
• Fuse Current: 16 A
• Drive Type: BE; Encoder Velocity Mode Available
• Maximum Peak Current Rating: 25 A
• Peak Voltage Rating (scaled 1:10): 20 V
