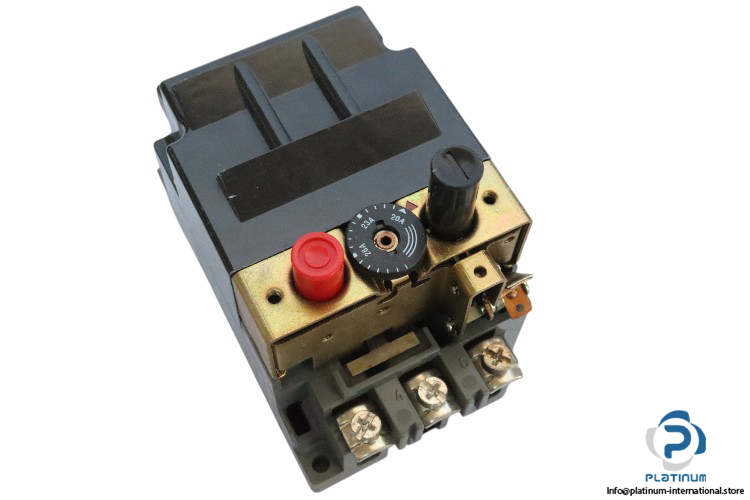

AEG Motor Circuit Protector MBS 32

AEG Motor Circuit Protector MBS 32 is designed to protect motors from overloads and short circuits. Built with high-performance standards, it ensures reliable protection for motor circuits in industrial applications. Below are the key technical specifications:

• Manufacturer: AEG
• Type: Motor Circuit Protector

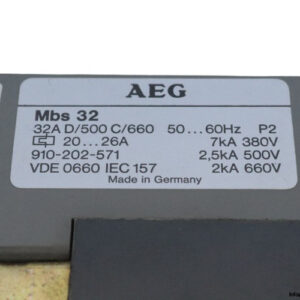

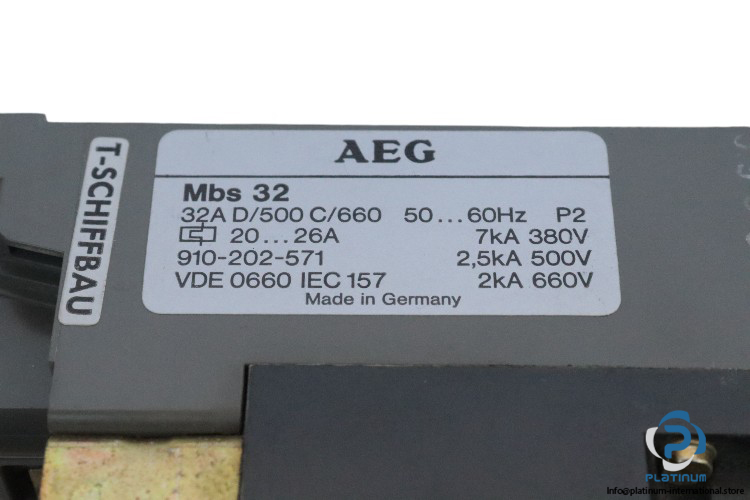

• Model: MBS 32
• Part No.: 910202571

Technical Data:

• Number of Poles: 3
• Rated Nominal Current (In): 32 A

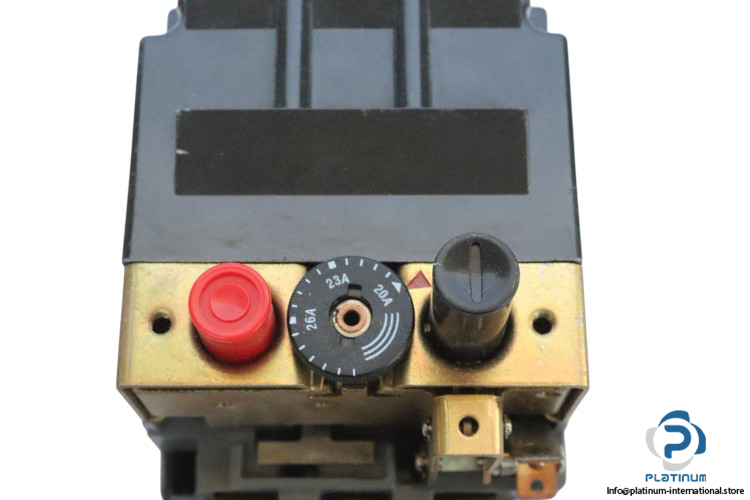

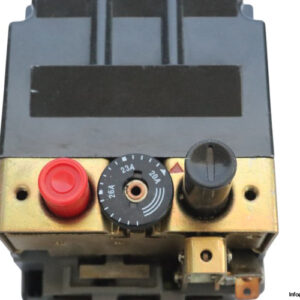

• Release Current Range: 20 to 26 A
• Rated Insulation Voltage (Ui): 690 V
• Rated Operating Voltage (Ue): 690 V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Frequency: 50 to 60 Hz
• Standard: VDE 0660, IEC 157
• Total Power Loss (P):
• At 0.16 to 25A: 7W
• At 32A: 8.5W
• Operation Temperature: -25 to 60°C
• Protection Degree: IP20
• Terminal Type: Screws
• Tightening Torque: 2 Nm / 18 Lb.in
• Handle Operation: Rotary Drive
• Dimensions (H x W x D): 90 x 45 x 75 mm
