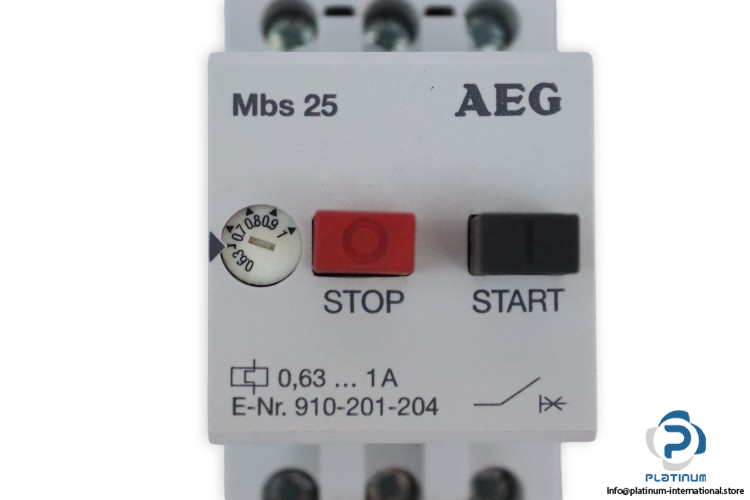

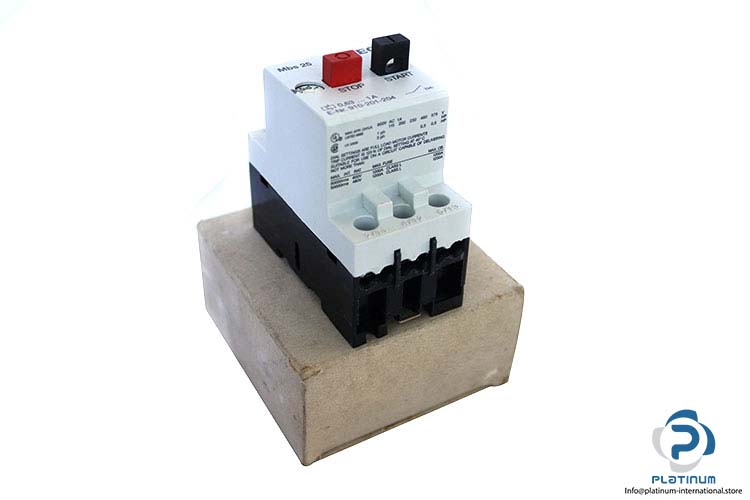

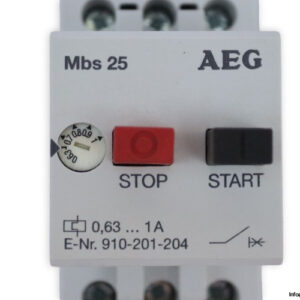

AEG MBS-25 Circuit Breaker
The AEG MBS-25 is a high-performance 3-pole circuit breaker designed for industrial applications requiring precise protection and high short-circuit capacity. Engineered to comply with international standards, it ensures safe and reliable power distribution across a wide frequency range.
Manufacturer: AEG
Type: Circuit Breaker
Model: MBS-25
ID. No.: 254198
Part No.: 910-201-204

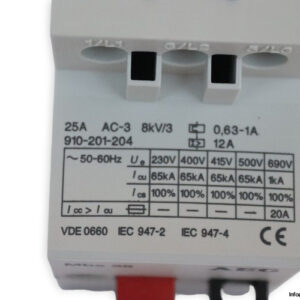

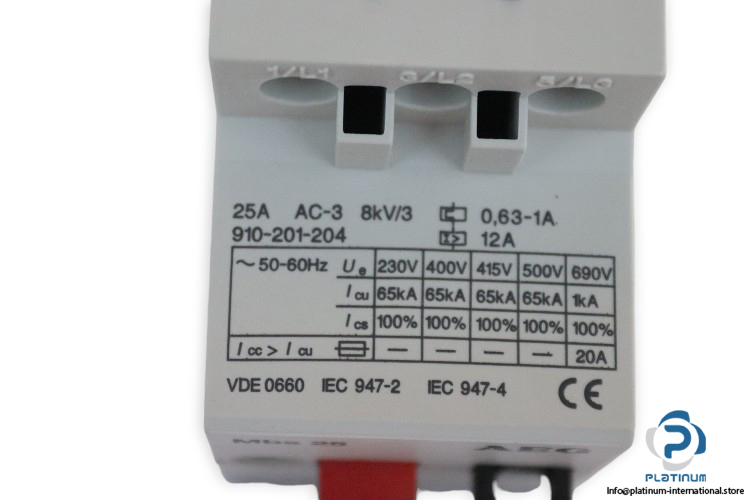

Technical Information
- Current Range: 0.63 / 1 A
- Short-Circuit Breaking Capacity Icu: 65 kA@400 V
- Rated Impulse Withstand Voltage Uimp: 8 kV
- Release Current: 12 A
- Nominal Current: 25 A
- Frequency: 50 / 60 Hz
- No. of Poles: 3
- Standard: VDE 0660, IEC 947-2, IEC 947-4
- Dimensions: 76 x 80 x 45 mm
