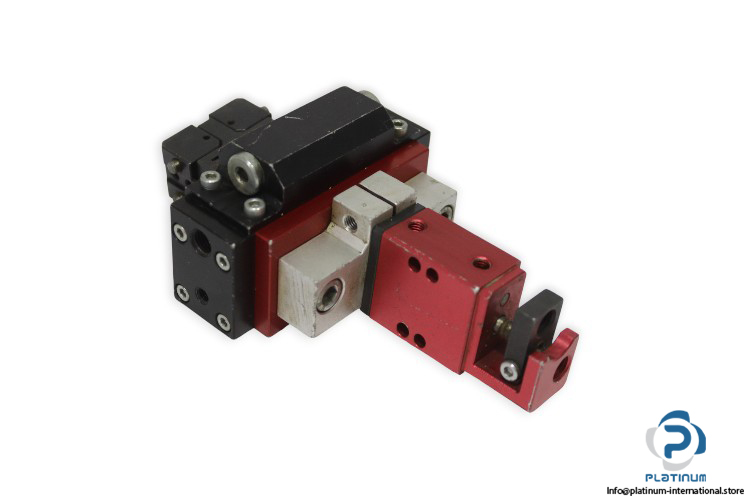

AFAG GMQ 12 Gripper Module

The AFAG GMQ 12 Gripper Module is a compact and precise pneumatic gripper designed for reliable part handling and automation processes. It features a robust construction and consistent gripping performance suitable for high-speed industrial applications.

Manufacturer: AFAG
Type: Gripper Module

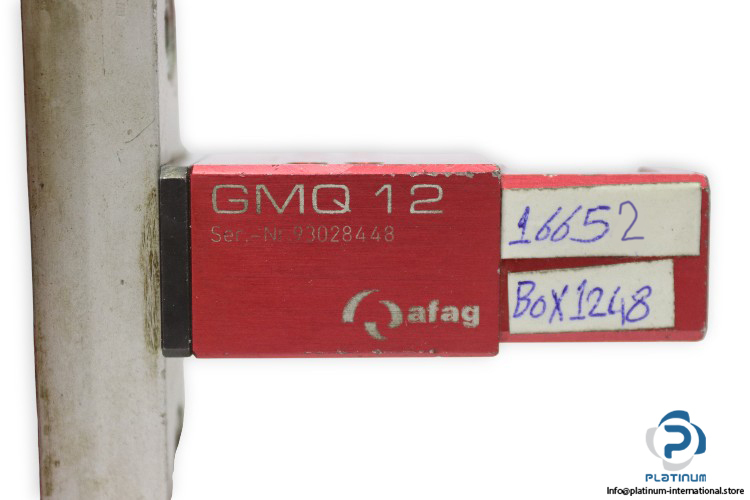

Model: GMQ 12
MRN: 93028448
Series: GM

Technical Information

• Piston Diameter: 12 mm
• Attachment Grid: 22 mm
• Operating Pressure: 6 ± 2 bar
• Air Connection P: M5
• Cylinder Diameter: 12 mm
• Operating Temperature: 0 to 50 degree Celsius
• Storage Temperature: 0 to 50 degree Celsius
• Dimensions: 89 x 37 x 30 mm

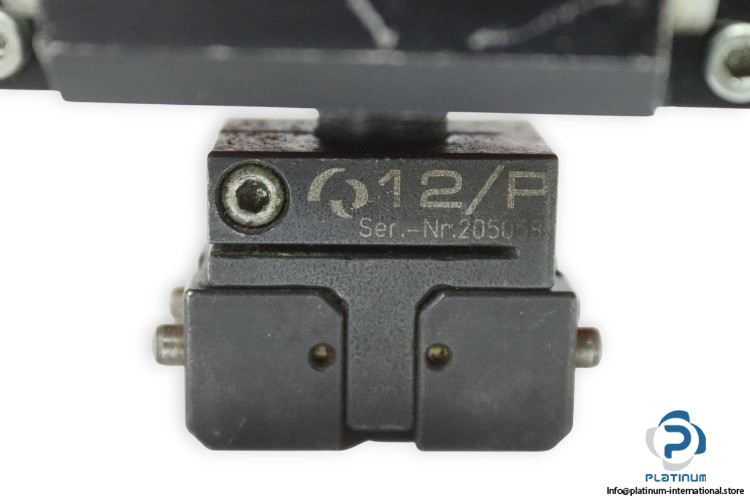

• Additional Part: Q12/P Module
• Serial Number: 205058
