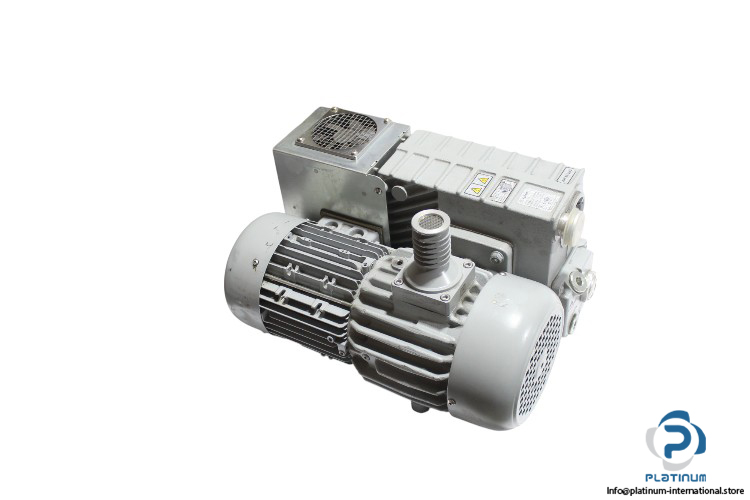

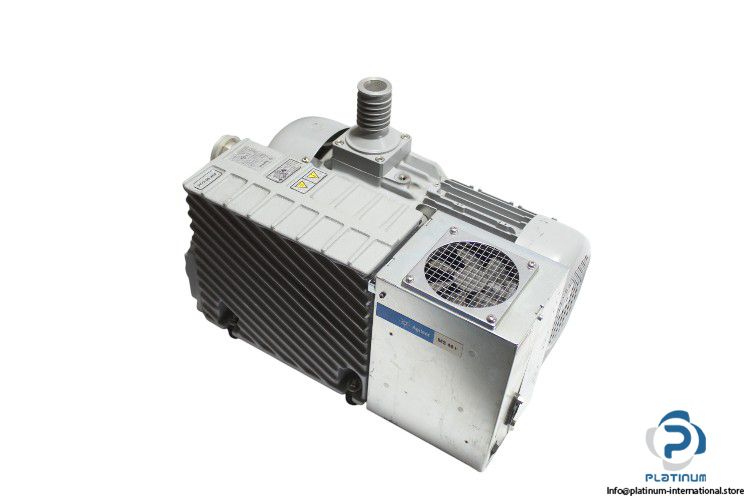

Agilent MS40+ RVP Rotary Vane Pump
The Agilent MS40+ RVP Rotary Vane Pump is designed for high-performance vacuum applications with a flow rate of 40 m3/h and pumping speed of 1450 rpm. This rotary vane pump offers reliable and consistent performance for demanding processes.

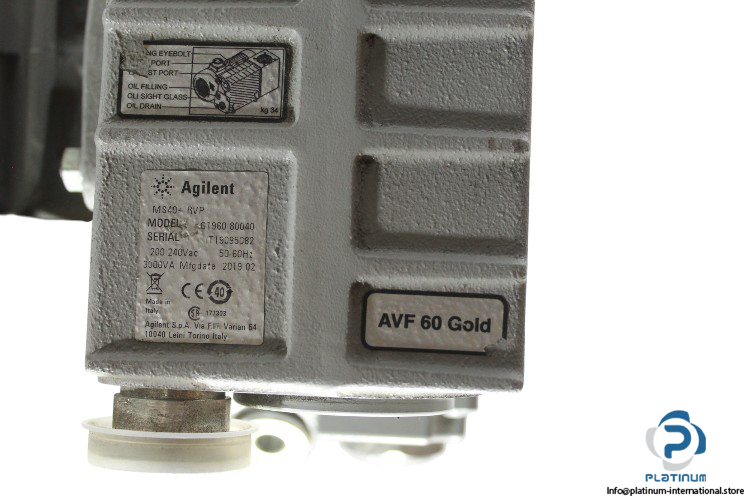

Manufacturer: Agilent
Model: MS40+ RVP
Alt Model: G1960 80040
Serial No.: IT19095DB2
Technical Information:
- Rated Voltage [VAC]: 200 to 240
- Max Input Power [VA]: 3000
- Frequency [Hz]: 50/60
- Vacuum Fluid: AVF 60 GOLD
- Pumping Speed (at 5 mbar inlet pressure): 1450 rpm
- Flow Rate: 40 m3/h
Attachment 1: LAFERT AG80ZBA4X T 3704214 MOTOR

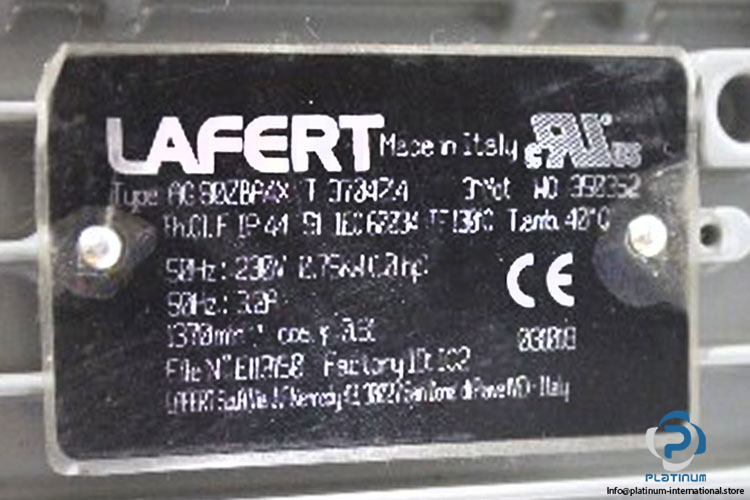

Lafert AG80ZBA4X T 3704214 3-Phase E-Motor
Manufacturer: LAFERT
Type: 3-Phase E-Motor
Model: AG80ZBA4X T 3704214
Part No.: 350352
Code: 031018
Technical Information:
- Rated Voltage [V]: 230
- Rated Current [A]: 3.2
- Rated Power [kW]: 0.75
- Horsepower [Hp]: 1
- Rated Speed [rpm]: 1370
- Protection Class [IP]: 44
- Duty: S1 Cont.
- Frequency [Hz]: 50
- Power Factor [cos]: 0.81
- Ambient Temperature [°C]: 40
- Insulation Class: F
Attachment 2: AGILENT SS 40+ CONTROL UNIT

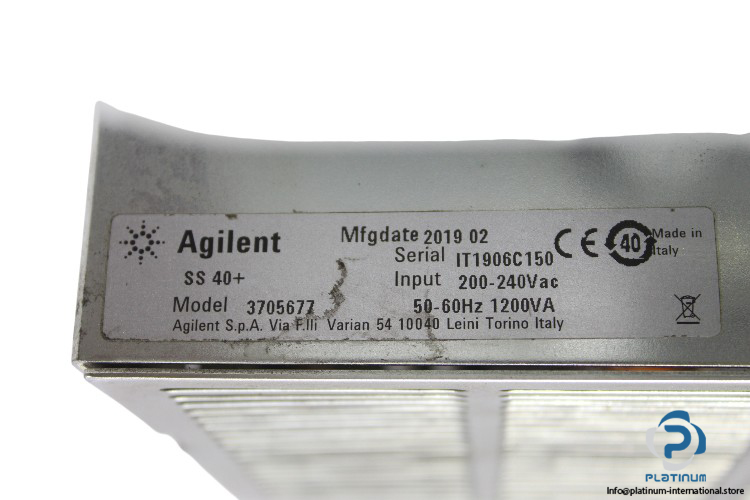

Agilent SS 40+ Control Unit
Manufacturer: AGILENT
Type: Control unit
Model: SS 40+
Part No.: 3705677
Technical Information:
- Rated Voltage [VAC]: 200 to 240
- Power [VA]: 1200
- Frequency [Hz]: 50/60
