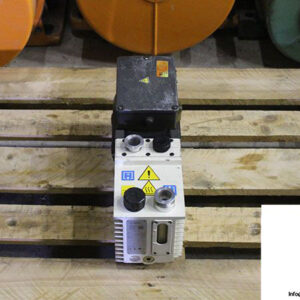

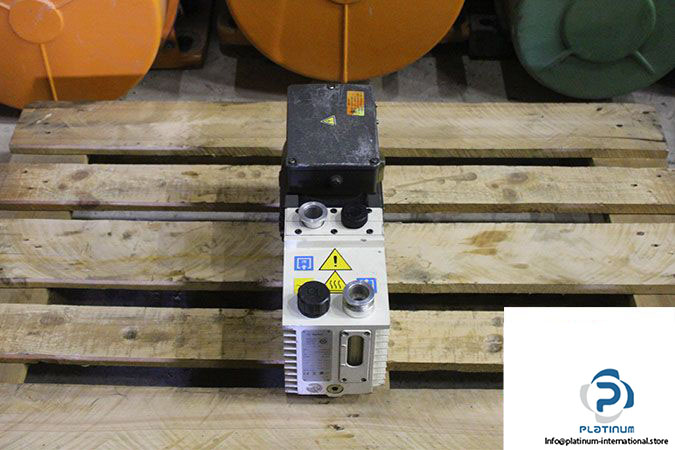

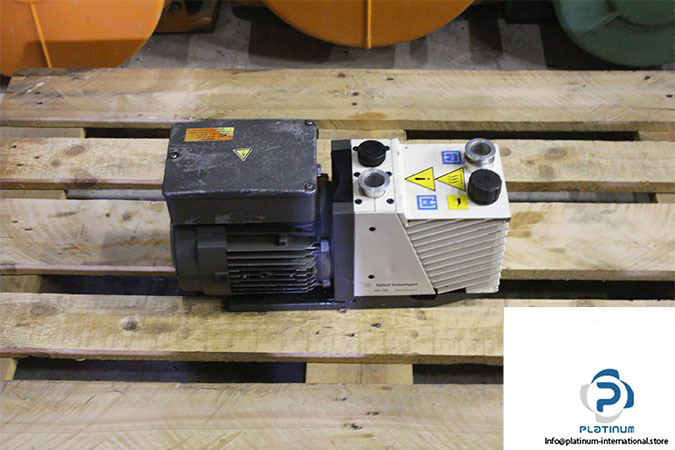

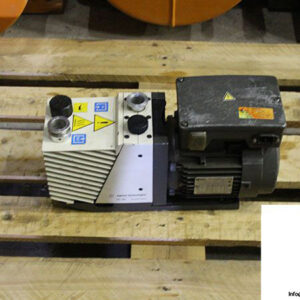

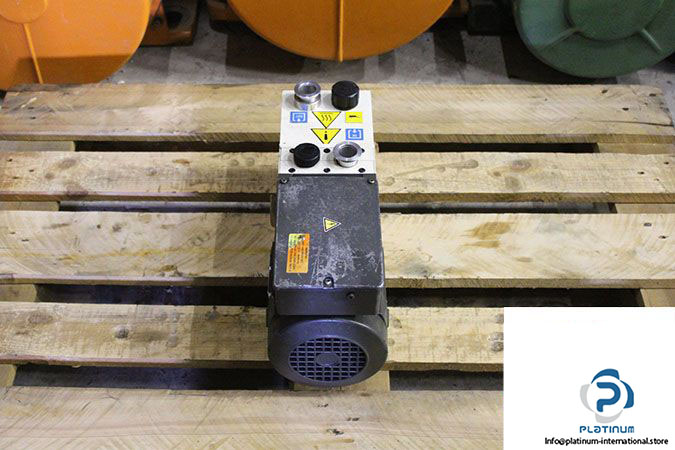

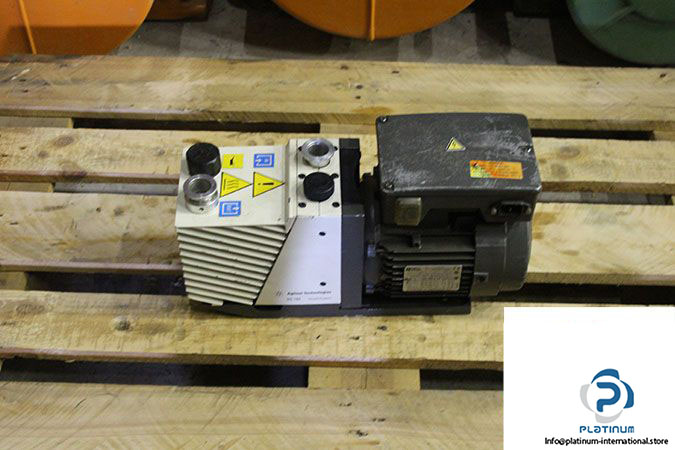

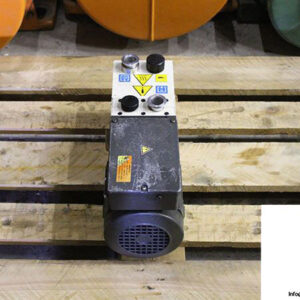

Manufacturer: Agilent Technologies / Varian

Type: Dual Stage Rotary Vane Vacuum Pump

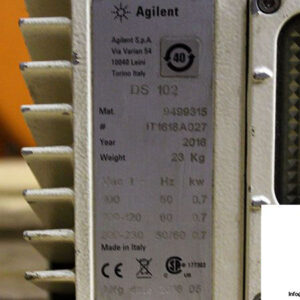

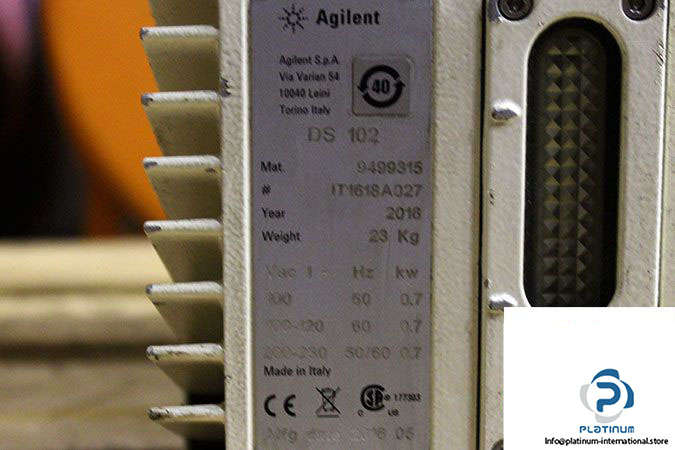

Model: DS102

Part Nr.: IT1618A027

Mat.: 9499315

Rated Voltage [V]: 100/100-120

Rated Voltage [V]: 200/230

Frequency [Hz]: 50/60

Rated Power [kW]: 0.7/0.7

Ultimate Partial Pressure [mbar]: 10^-4

Ultimate Total Pressure [mbar]: 2 x 10^-3

Free Air Displacement [l/min]: 95/114

Pumping Speed at 60Hz  [cfm]: 3.5

Pumping Speed at 50Hz [m³/h]: 5

Water Vapor Tolerance [mbar]: 15

Water Vapor Capacity [g/h]: 60

Oil Capacity Min/Max [l]: 0.3/0.5

Motor Rating 1ph [kW]: 0.45/0.55

Nominal Rotation Speed [rpm]: 1500/1800

Inlet Flange [DN]: 25

Exhaust Flange [DN]: 25

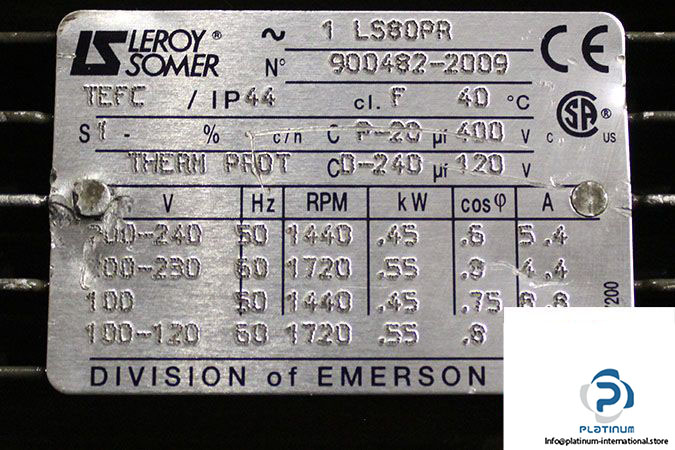

Attachment: Leroy Somer LS80PR Single Phase E-Motor

Manufacturer: Leroy Somer

Type: Single Phase E-Motor

Model: LS80PR

Rated Voltage [V]: 200-240/200-230

Rated Current [A]: 5.4/4.4

Power Factor [%]: 0.6/0.8

Rated Voltage [V]: 100/100-120

Rated Current [A]: 8.8/8.8

Power Factor [%]: 0.75/0.8

Rated Power [kW]: 0.45/0.55

Rated Speed [rpm]: 1440/1720

Protection Class [IP]: 44

Duty: S1 Cont.

Frequency [Hz]: 50/60

Ambient Temperature [°C]: 40

Insulation Class: F

Weight [kg]: 21.6
