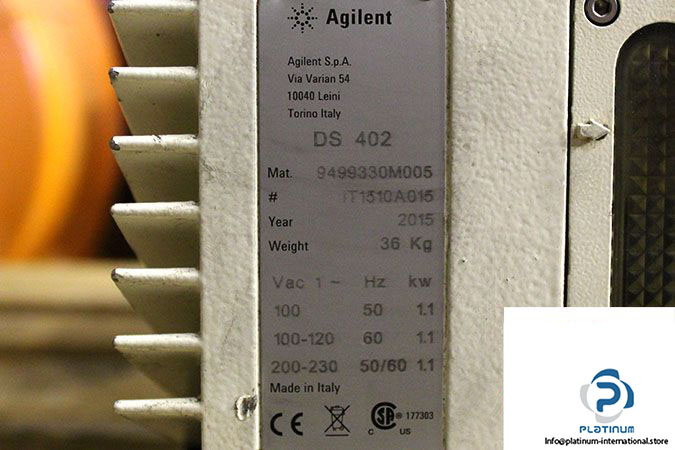

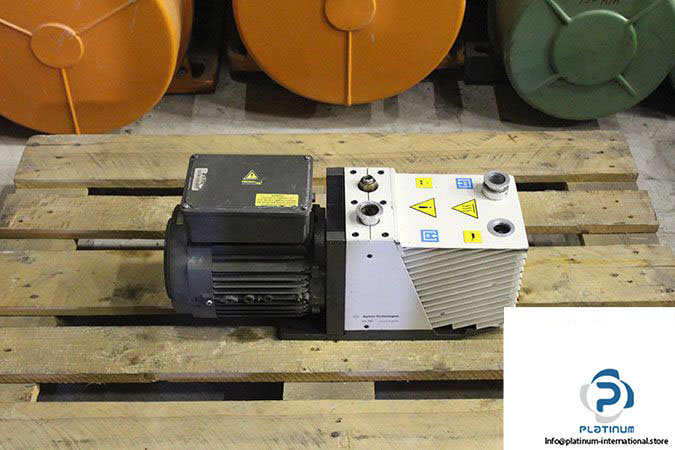

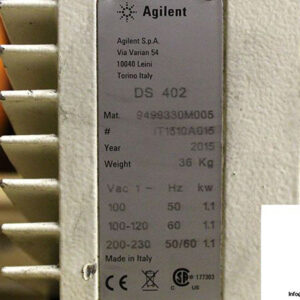

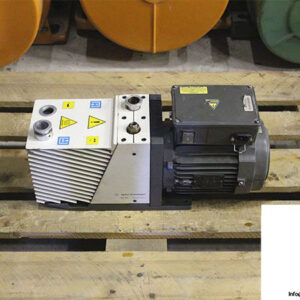

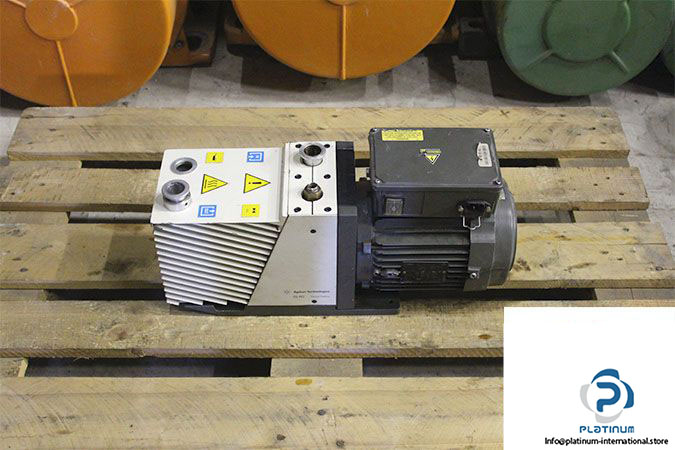

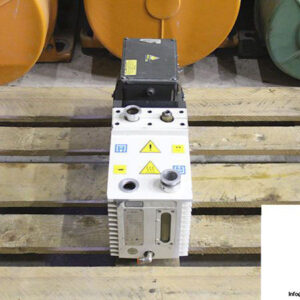

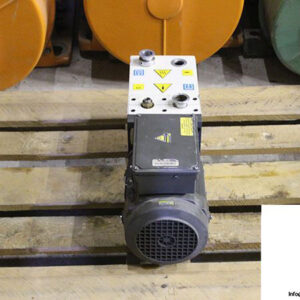

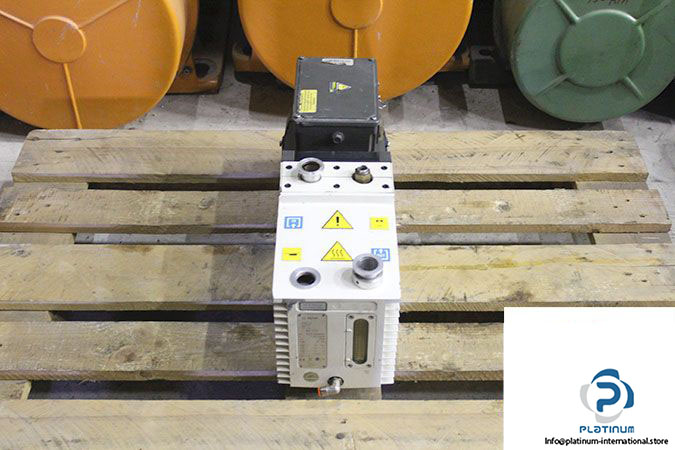

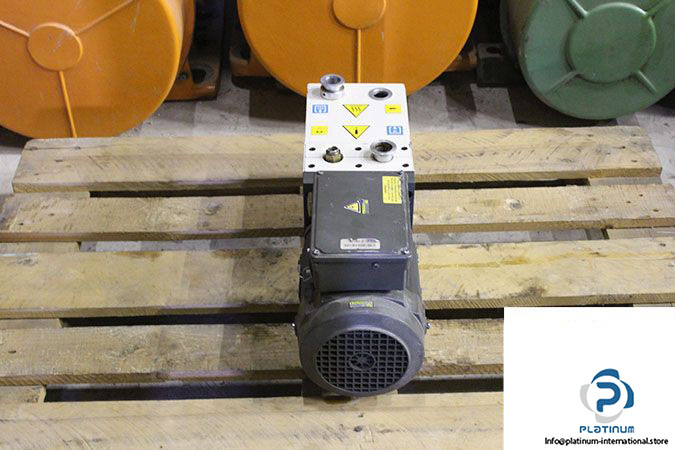

Manufacturer: Agilent Technologies / Varian
Type: Dual Stage Rotary Vane Vacuum Pump
Model: DS402
Part Nr.: IT1510A015
Mat.: 9499330M005
Rated Voltage [V]: 100/100-120
Rated Voltage [V]: 200/230
Frequency [Hz]: 50/60
Rated Power [kW]: 1.1/1.1
Ultimate partial pressure [mbar]: 10-4
Ultimate total pressure [mbar]: 2 x 10-3
Free Air Displacement [l/min]: 342/410
Pumping Speed at 60Hz [cfm]: 12.3
Pumping Speed at 50Hz [m3/h]: 17.4
Water Vapor Tolerance [mbar]: 30
Water Vapor Capacity [g/h]: 350
Oil Capacity Min/Max [l]: 0.5/1
Motor Rating 1ph [kW]: 0.75/0.9
Motor Rating 3ph [kW]: 0.75/0.9
Nominal Rotation Speed [rpm]: 1500/1800
Inlet Flange [DN]: 25
Exhaust Flange [DN]: 25

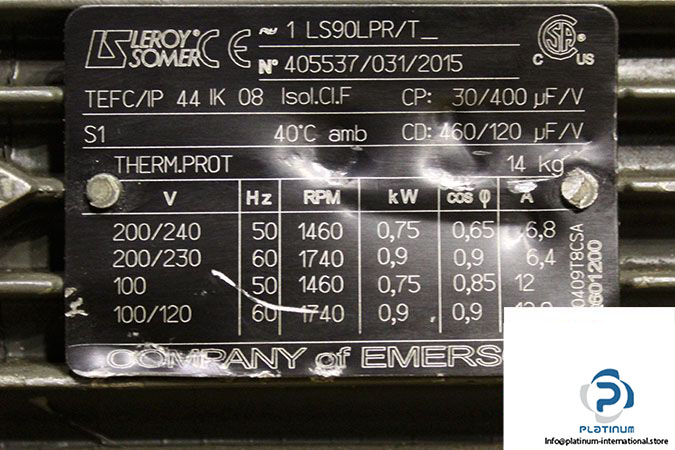

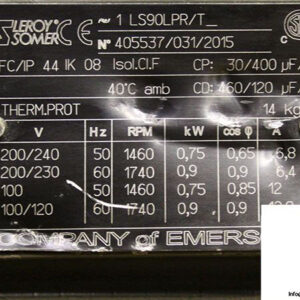

Attachment: Leroy Somer 1 LS90LPR/T Single Phase E-Motor
Manufacturer: Leroy Somer
Type: Single Phase E-Motor
Model: 1LS90LPR/T
Rated Voltage [V]: 200-240/200-230
Rated Current [A]: 6.8/6.4
Power Factor [%]: 0.75/0.9
Rated Voltage [V]: 100/100-120
Rated Current [A]: 12/12.8
Power Factor [%]: 0.85/0.9
Rated Power [kW]: 0.75/0.9
Rated Speed [rpm]: 1460/1740
Protection Class [IP]: 44
Duty: S1 Cont.
Frequency [Hz]: 50/60
Ambient Temperature [°C]: 40
Insulation Class: F
Weight [kg]: 37.8
