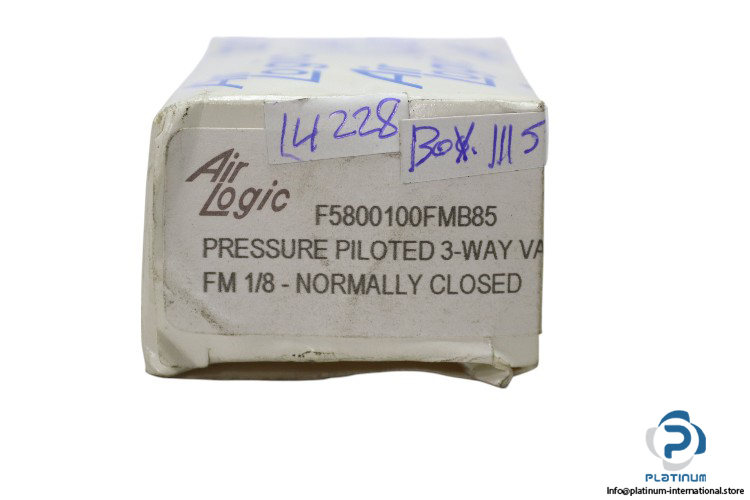

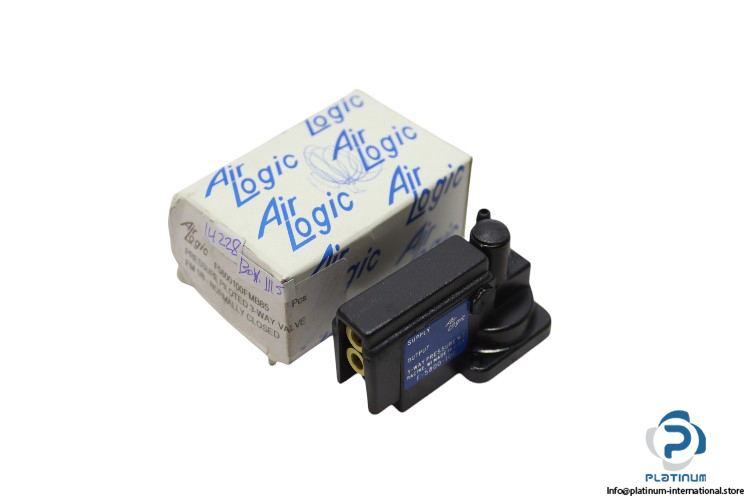

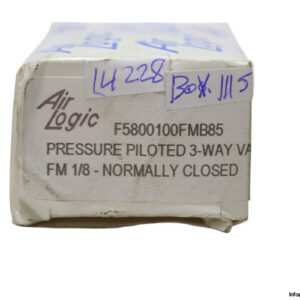

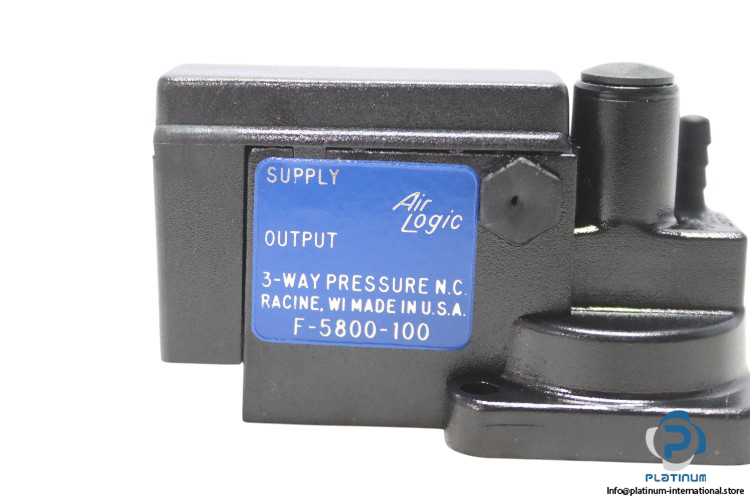

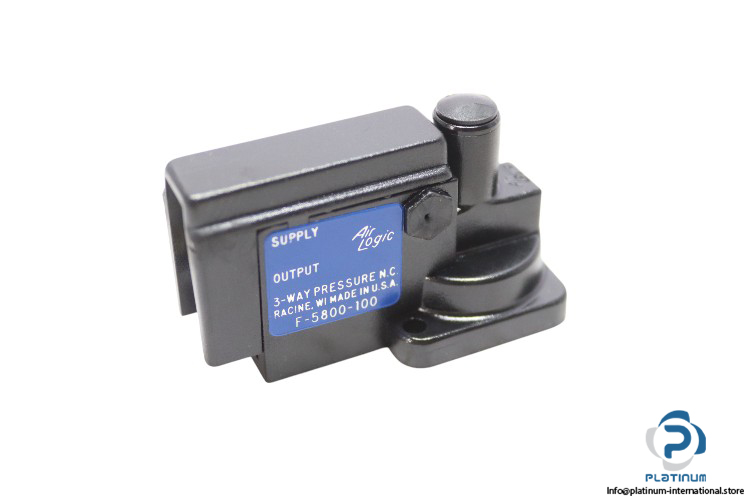

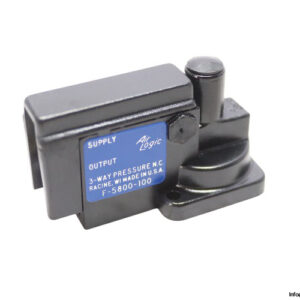

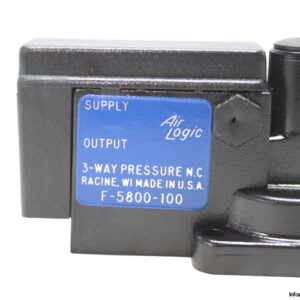

Air Logic F-5800-100 Pressure Piloted Valve

The Air Logic F-5800-100 Pressure Piloted Valve is designed for precise control in fluid handling applications. Featuring a flush mount design, this valve senses pressure to turn the output on within a range of 0.5 to 100 PSI, making it ideal for various pneumatic and hydraulic systems.

Manufacturer: AIR LOGIC

Type: Pressure Piloted Valve

Model: F-5800-100

MRN: F5800100FMB85

Ref No: FM 1/8

Technical Data:

• Switch Selection: Normally Closed – Senses Pressure / Turns Output ON
• Sensing Range: 0.5 to 100 PSI
• Mounting Style: Flush Mount
• Port Connection: Barb for G1/8
• Housing Material: Polysulfone
• Diaphragm Material: Polyurethane
• Spring Material: Stainless Steel or Music Wire
• Air Consumption at 6 bar: 0.7 l/min
• Nominal Orifice Size: 2 mm
• Fittings: 4 mm Push to Connect
• Pressure Range: 1.5 bar – 8 bar
