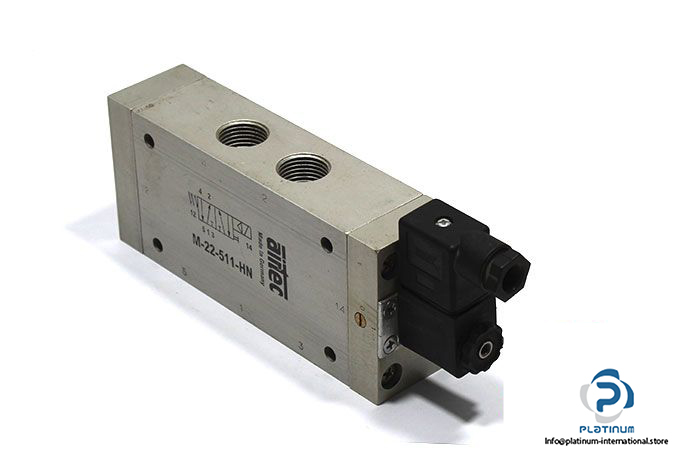

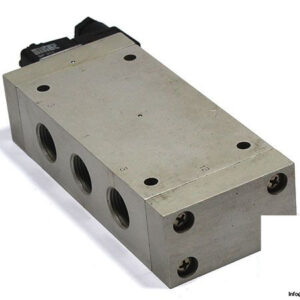

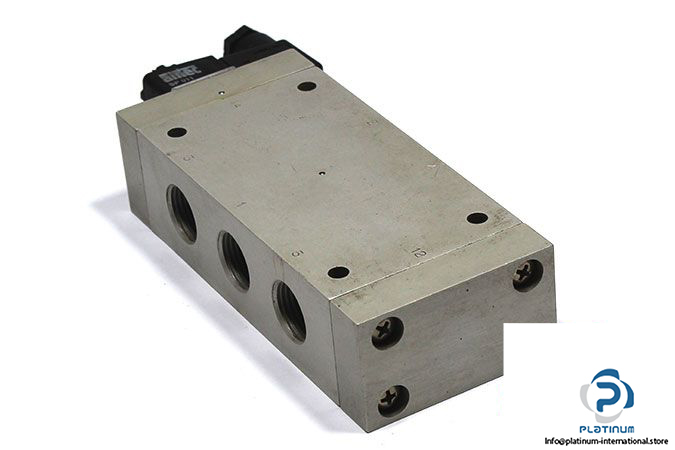

Manufacturer: AIRTEC

Type: Single Solenoid Valve

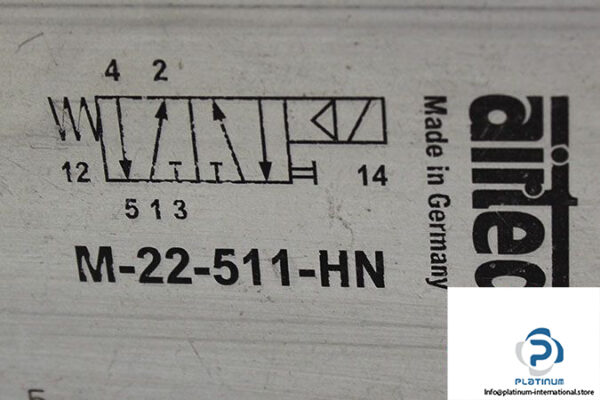

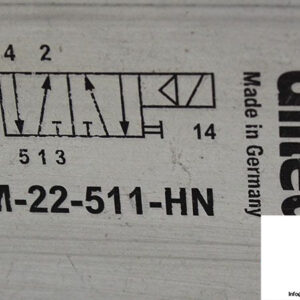

Model: M-22-511-HN

Type of Actuation: Electrically

Operating Pressure: 2…10 bar

Fluid: Air

Flow Rate: 3300 Nl/min

Plug Diameter: 9 mm

Pneumatic Connection: G½”

Temperature Range: -10…70 °C

Material: Body: Al (Anodized), Seals: NBR, Inner Parts: Al, Steel and Plastic

Protection Class: IP65

Weight: 1.150 kg

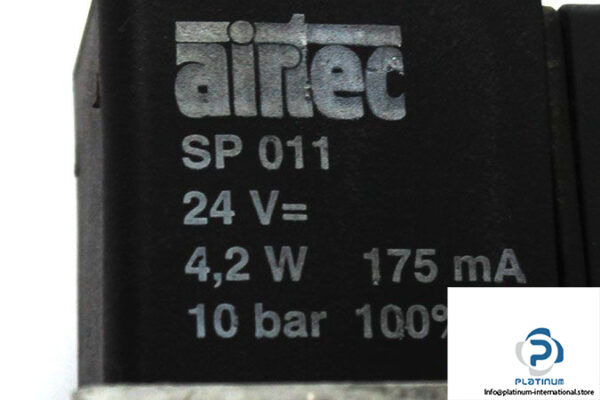

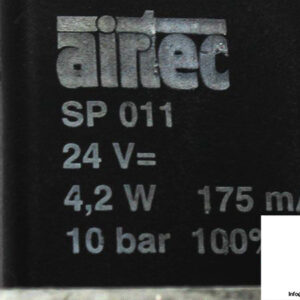

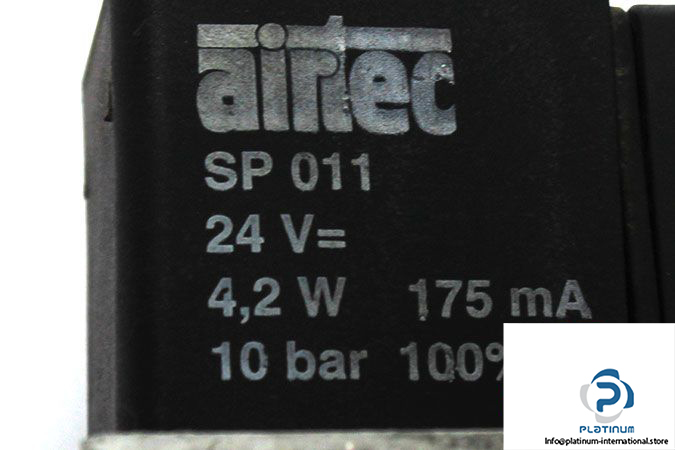

Attachment: AIRTEC SP 011 SOLENOID COIL

Manufacturer: AIRTEC

Type: Solenoid Coil

Model: SP011

Voltage: 24 VDC

Power: 4.2 W

Current: 175 mA
