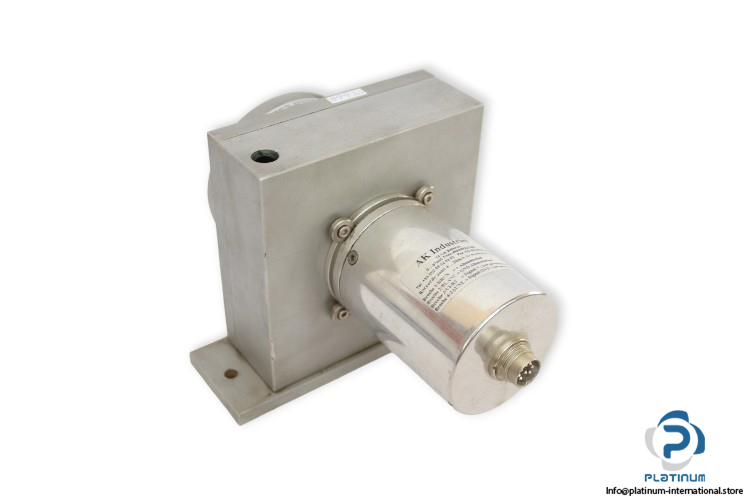

AK INDUSTRIES GMBH CD1153000I420L15C LINEAR POTENTIOMETER

This industrial-grade linear potentiometer from AK INDUSTRIES GMBH is designed for precision linear displacement measurement in demanding environments. With a robust aluminium body, high IP65 protection, and 4“20 mA output signal, it ensures accurate performance and reliable integration into automation systems.

Manufacturer: AK INDUSTRIES GMBH
Type: Linear Potentiometer

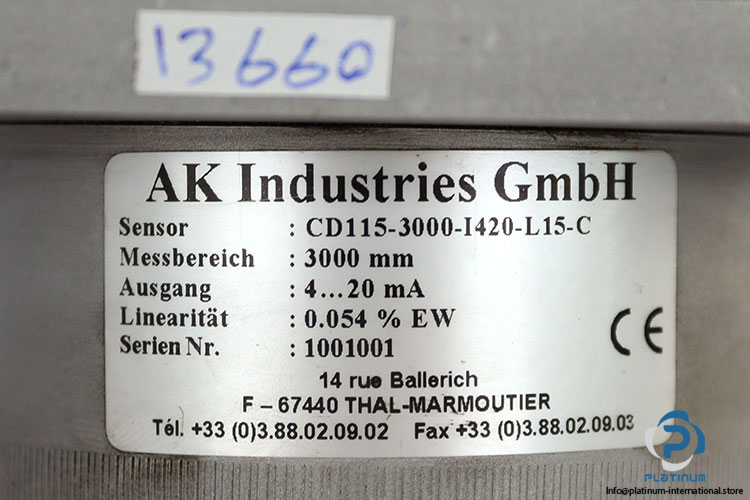

Model: CD1153000I420L15C
Ref No.: 1001001

Technical Information

• Series: CD115
• Measurement Range: 0 / 3000 mm
• Linearity: 0.054 %
• Useful Electrical Stroke Length: 200 mm
• Output Signal: 4 / 20 mA
• Electrical Connection: Male Connector, 15-Pin, 1 m
• Material: Aluminium
• Protection Class: IP65
• Temperature Range: -20 / 80 °C
• Diameter: 58 mm
• Dimension: 115 x 115 x 162 mm
