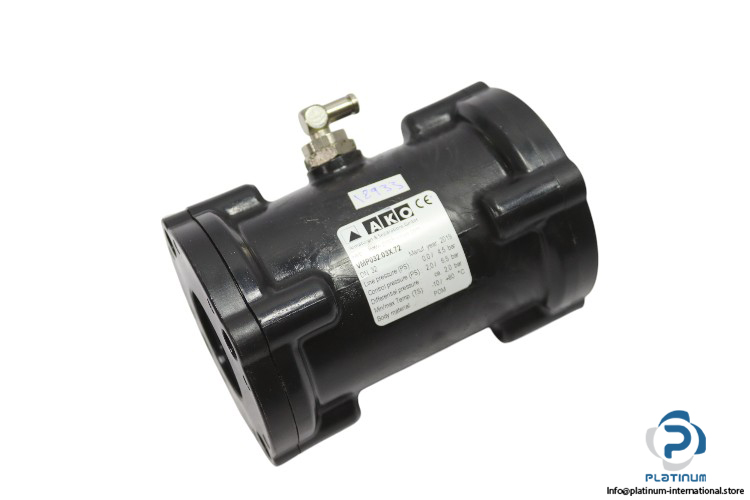

AKO VMP032.03X.72 Air Operated Pinch Valve

The AKO VMP032.03X.72 is an air-operated pinch valve designed for precise flow control in various industrial applications. Built with a durable POM body, this valve offers excellent performance under varying line pressures and temperature conditions. It provides smooth control with a nominal diameter of 32 mm and a wide range of operating parameters, ensuring reliability in demanding environments.

Manufacturer: AKO

Type: Air Operated Pinch Valve

Model: VMP032.03X.72

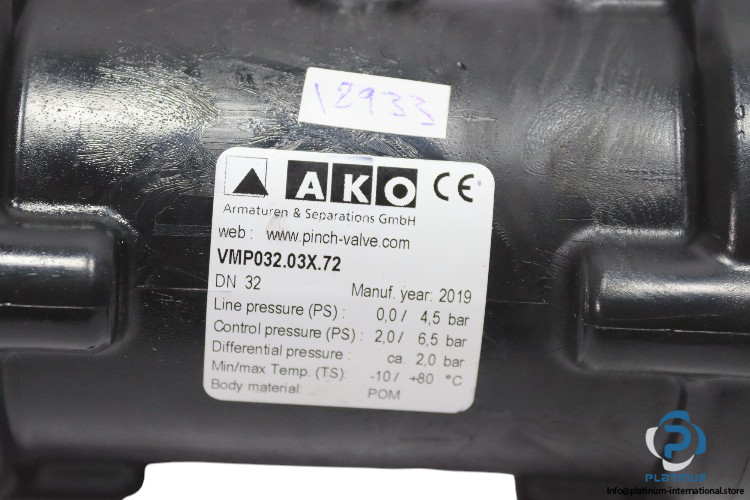

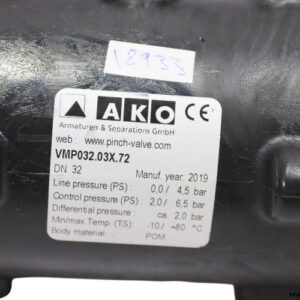

Technical Data:

• Body Material: POM
• Fluid: Air
• Line Pressure: 4.5 bar
• Control Pressure: 2 / 6.5 bar
• Differential Pressure: 2.00 bar
• Max. Operating Temperature: 80.00°C
• Nominal Diameter: 32 mm
• Control Air Connection: Internal thread G 1/4³
• Width: 98 mm
• Height: 98 mm
• Length: 135 mm
