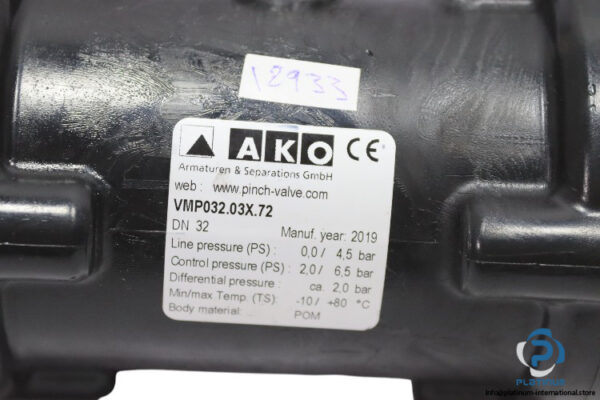

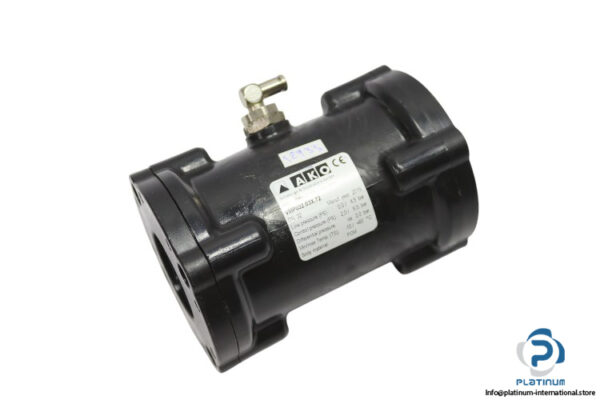

AKO VMP032.03X.72 Air Operated Pinch Valve
The AKO VMP032.03X.72 is an air-operated pinch valve designed for precise flow control in various industrial applications. Built with a durable POM body, this valve offers excellent performance under varying line pressures and temperature conditions. It provides smooth control with a nominal diameter of 32 mm and a wide range of operating parameters, ensuring reliability in demanding environments.
Manufacturer: AKO
Type: Air Operated Pinch Valve
Model: VMP032.03X.72
Technical Data:
- Body Material: POM
- Fluid: Air
- Line Pressure: 4.5 bar
- Control Pressure: 2 / 6.5 bar
- Differential Pressure: 2.00 bar
- Max. Operating Temperature: 80.00°C
- Nominal Diameter: 32 mm
- Control Air Connection: Internal thread G 1/4³
- Width: 98 mm
- Height: 98 mm
- Length: 135 mm
