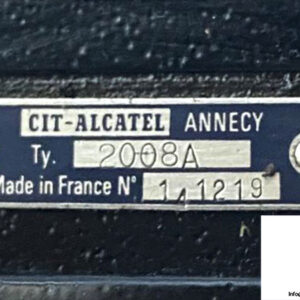

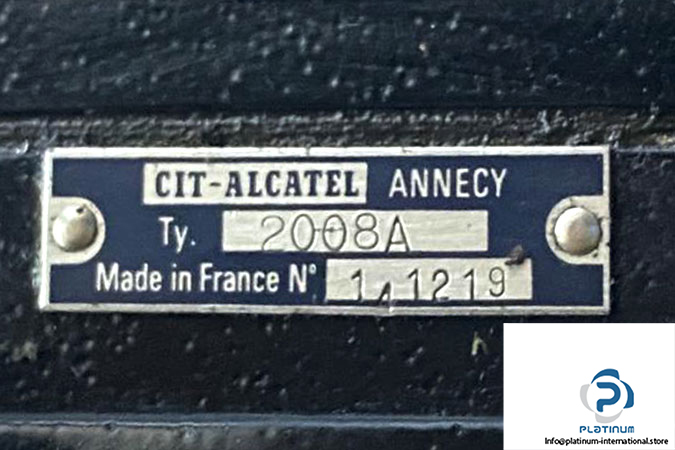

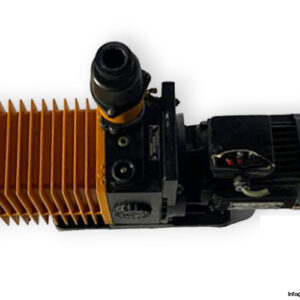

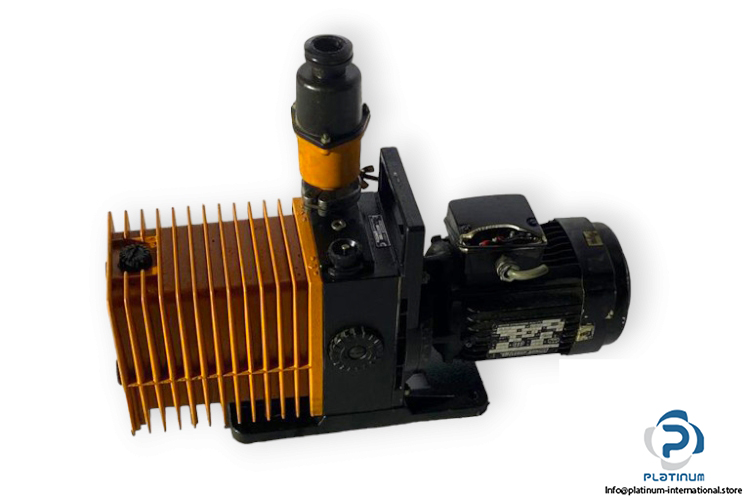

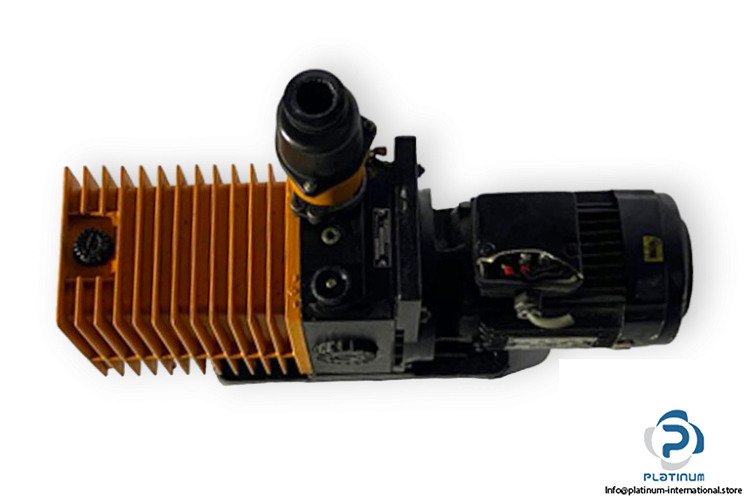

Manufacturer: CIT-ALCATEL
Type: Rotary Vane Pump
Model: 2008 A
KAT.FABR.NR: 1.1219

Inlet flange: KF 25
Outlet flange: 25
Pumping speed: 7 cfm
Ultimate pressure: 1 x 10-3 Torr

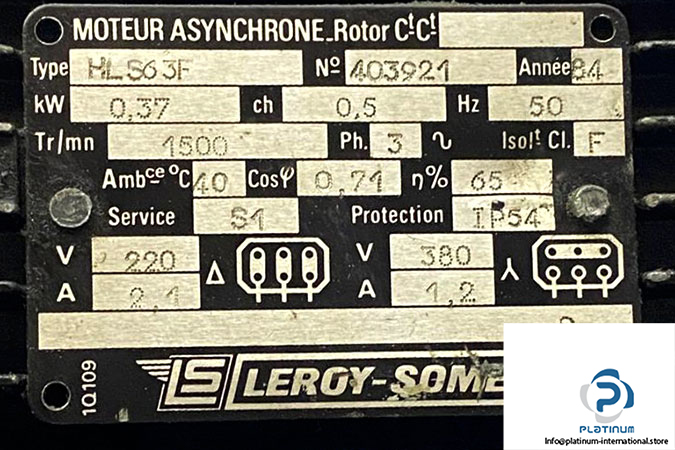

Attachment: LEROY-SOMER HLS63F 3-PHASE MOTOR
Manufacturer: MOTEUR
Type: 3-Phase Motor
Model: HLS63F
Part no.: 403921

Rated Voltage [V]: 220/380 Delta/Star
Nominal Current [A]: 2.1/1.2
Rated Frequency [Hz]: 50
Rated Speed [Tr/min]: 1500
Rated Power [kW]: 0.37
Protection class: IP54
