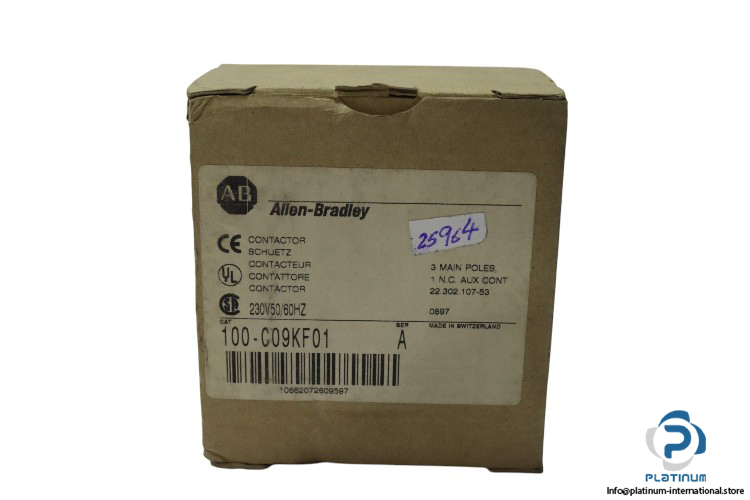

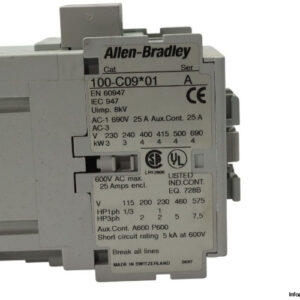

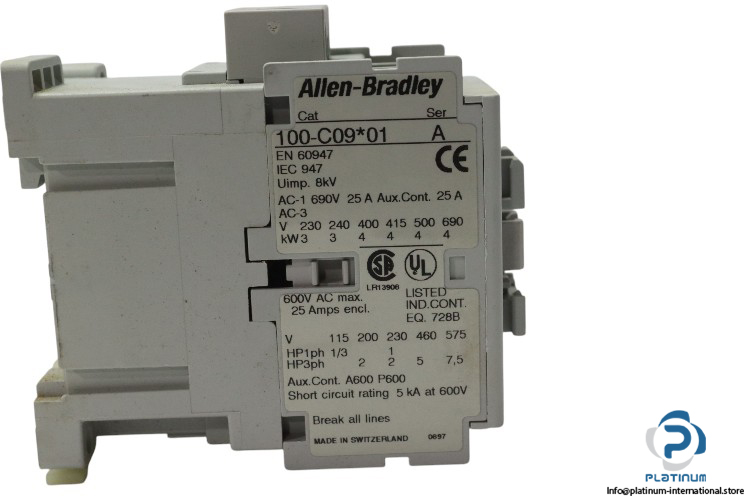

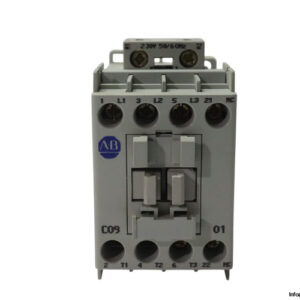

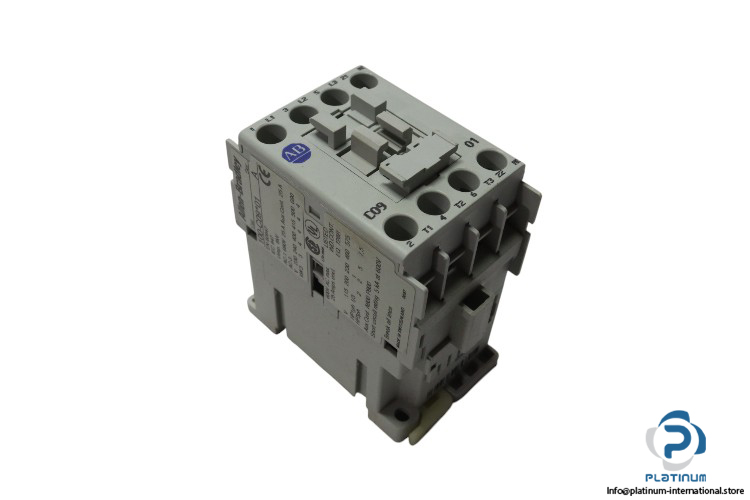

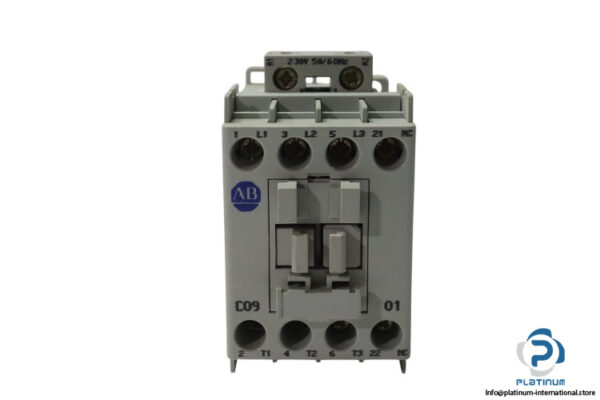

ALLEN-BRADLEY 100-C09KF01 A CONTACTOR

The Allen-Bradley 100-C09KF01 A is a high-performance contactor designed for robust industrial control applications. Engineered for reliability, this compact contactor delivers efficient operation in both AC-3 and AC-4 duty categories, with a durable screw terminal design and compact footprint. Ideal for automation systems that demand consistency and operational safety, it supports multiple voltage levels and current capacities.

Manufacturer: Allen-Bradley
Type: Contactor Ser A
Model: 100-C09KF01 A

Technical Information

• Rated Operation Current Ie at AC-3, 400 V: 9 A
• Rated Operation Power at AC-3, 400 V: 4 kW
• Rated Operation Current Ie at AC-1, 400 V: 32 A
• Max. Rated Operation Voltage Ue AC: 690 V
• Control Supply Voltage Us at AC 50Hz: 230 V
• Rated Operation Current Ie at AC-3, 690 V: 5 A
• Rated Operation Power at AC-3, 690 V: 4 kW
• Rated Operation Power at AC-4, 400 V: 1.8 kW
• Rated Operation Current Ie at AC-4, 400 V: 4.3 A
• Type of Electrical Connection of Main Circuit: Screw connection
• IP Rating: IP20
• Dimensions (H x W x D): 81 x 45 x 86.5 mm
