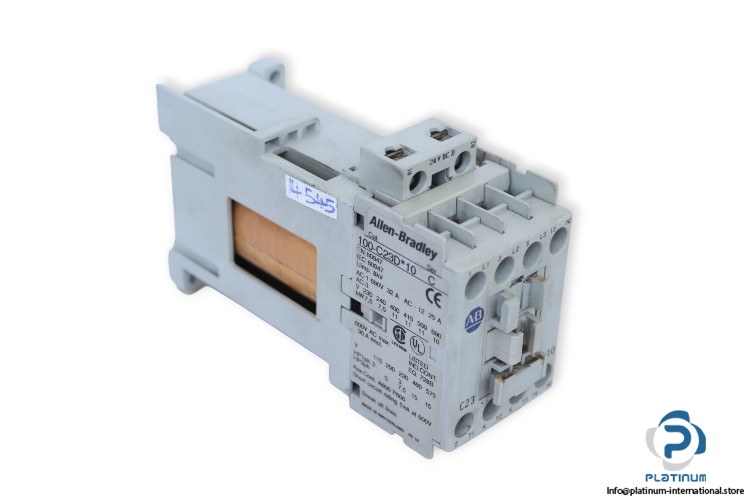

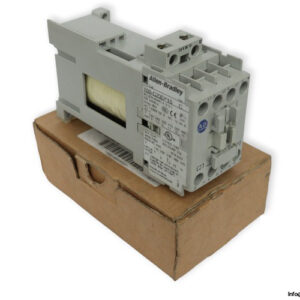

ALLEN-BRADLEY 100C23DJ10 Contactor Series C
The ALLEN-BRADLEY 100C23DJ10 Contactor from the Series C family is a compact, high-performance device engineered for reliable motor and power circuit control. With a 24 V DC coil and 3-pole main contact design, it delivers safe and consistent switching for industrial automation systems. The contactor supports AC-3 applications up to 11 kW and complies with modern electrical performance standards.
Manufacturer: ALLEN-BRADLEY
Type: Contactor Series C
Model: 100C23DJ10
Alternative Model: 100C23D10

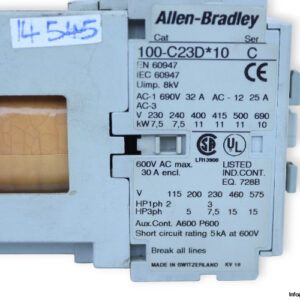

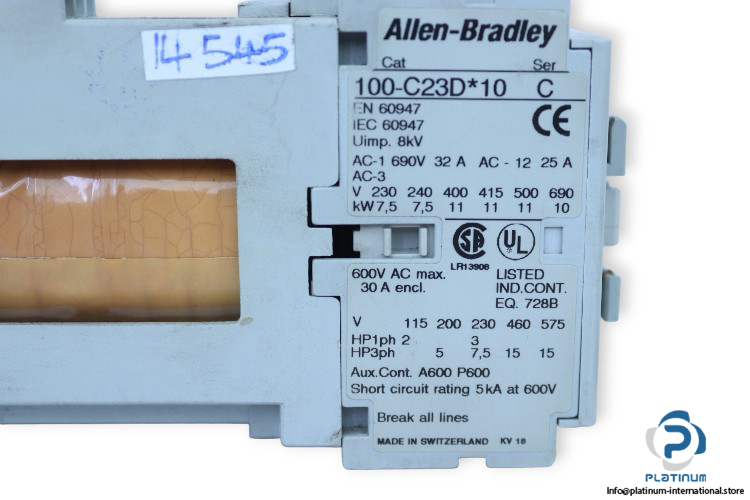

Technical Information

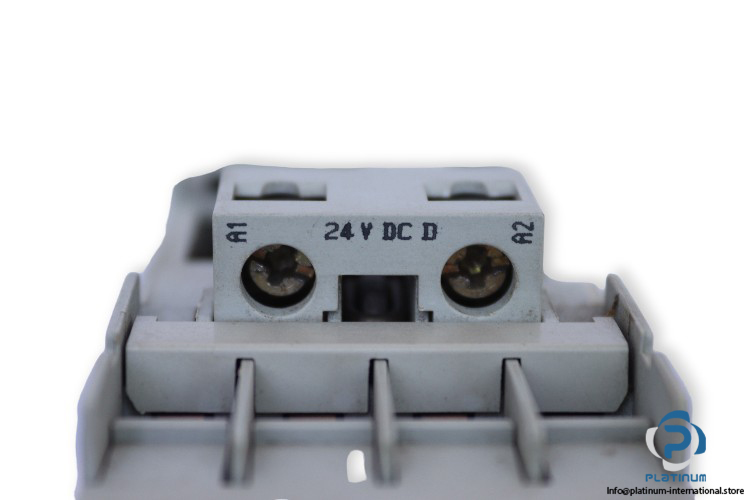

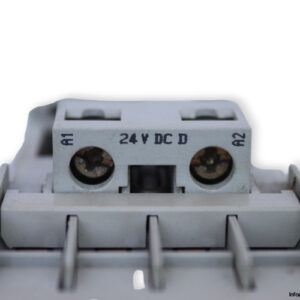

- Rated Coil Voltage: 24 V DC
- Rated Voltage Max.: 600 V AC
- Rated Operational Current AC-1: 32 A
- Rated Operational Current AC-12: 25 A
- Frequency: 50 “ 60 Hz
- Power AC-3 (230 / 240 V AC): 7.5 kW
- Power AC-3 (400 / 415 / 500 / 690 V AC): 11 kW
- Power AC-3 (690 V AC): 10 kW
- Rated Impulse Voltage (Uimp): 8 kV

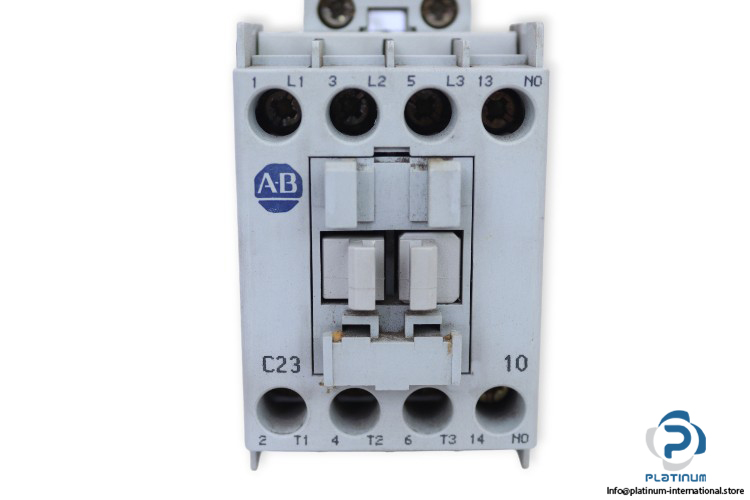

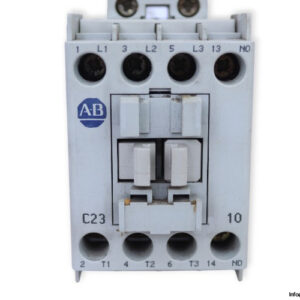

- Main Poles: 3-Pole
- Auxiliary Contact: 1-Pole (1 Normally Open NO)
- Rated Short Circuit Breaking 600 V: 5 kA
- Dimensions: 81 × 45 × 80.5 mm
