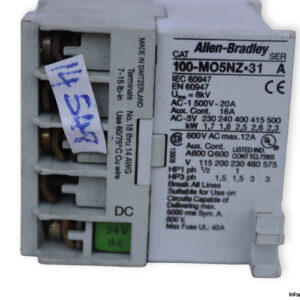

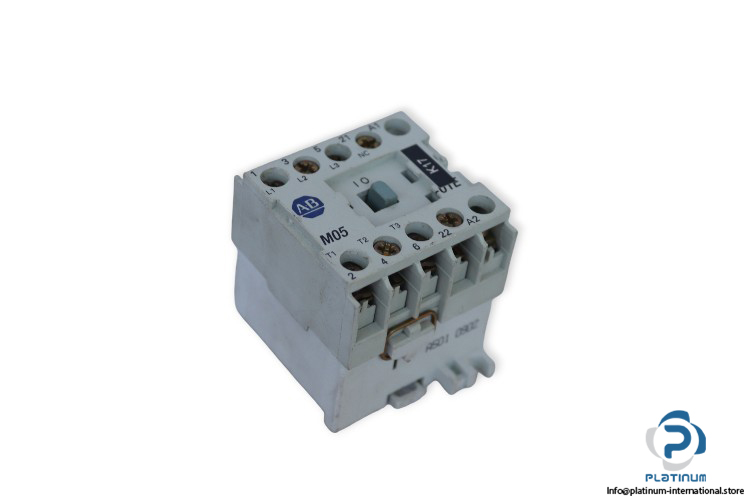

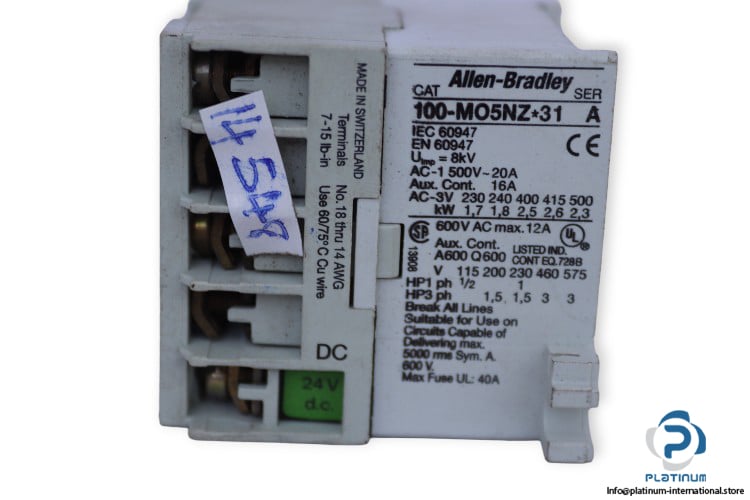

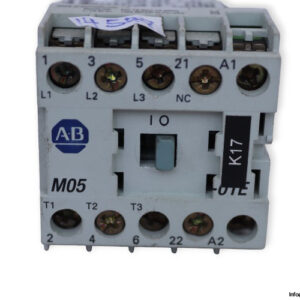

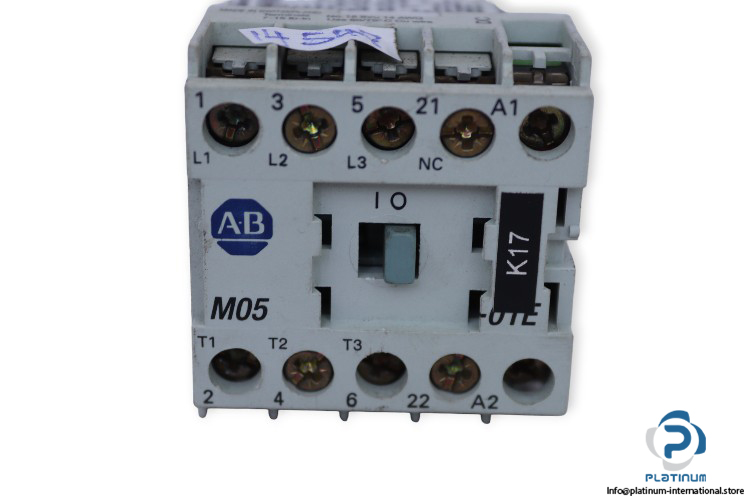

ALLEN-BRADLEY 100M05NZ31 Contactor Series A

The ALLEN-BRADLEY 100M05NZ31 Contactor Series A is a high-performance contactor designed for reliable switching of electrical loads in industrial automation and control systems. Built for durability, it provides efficient operation with a 24 V DC coil and supports multiple AC power ratings for diverse applications.

Manufacturer: ALLEN-BRADLEY
Type: Contactor Series A
Model: 100M05NZ31

Technical Information

• Rated Coil Voltage: 24 V DC
• Rated Voltage Max.: 500 V AC
• Rated Operational Current: 20 A
• Frequency: 50 “ 60 Hz
• Power AC-3 (230 V): 1.7 kW
• Power AC-3 (240 V): 1.8 kW
• Power AC-3 (400 V): 2.5 kW
• Power AC-3 (415 V): 2.6 kW
• Power AC-3 (500 V): 2.3 kW
• Rated Impulse Voltage (Uimp): 8 kV
• Main Poles: 5-Pole
• Auxiliary Contact: 1-Pole 1 Normally Closed (NC)
• Contact Current: 16 A
