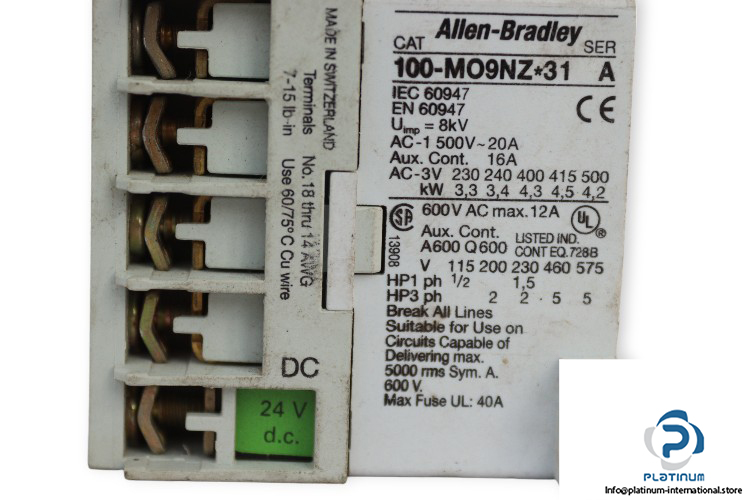

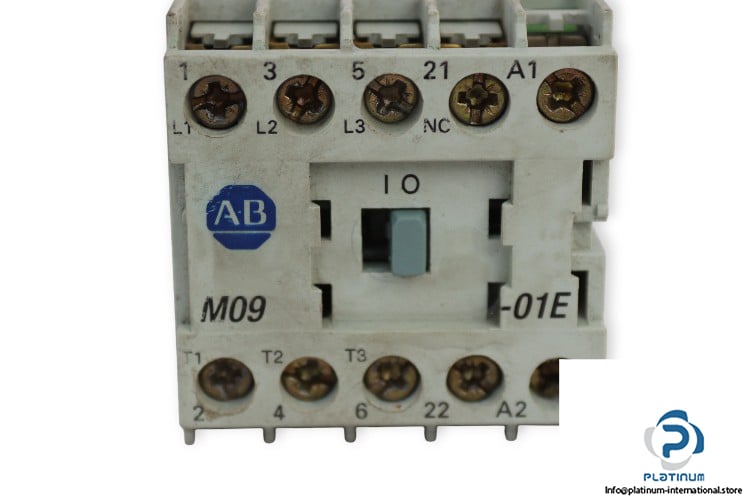

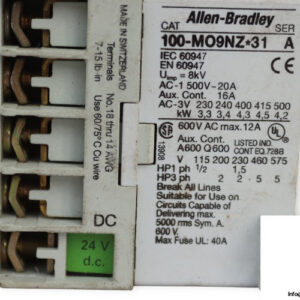

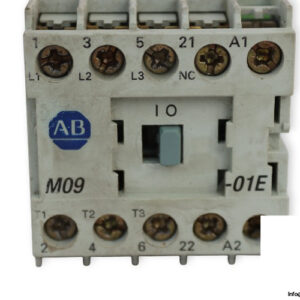

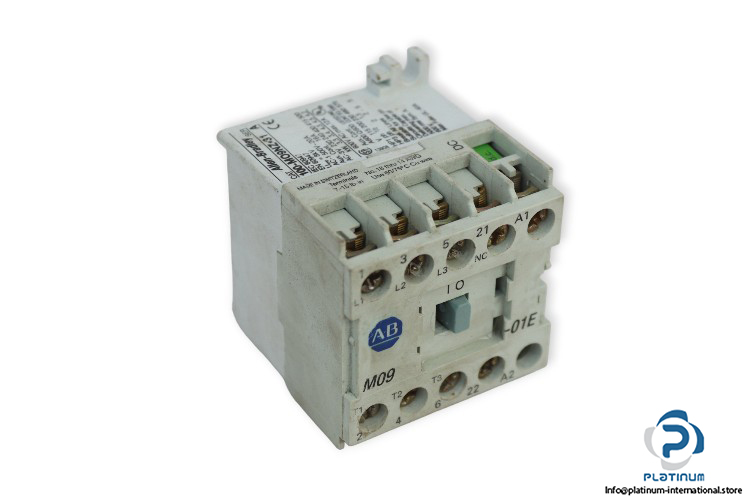

Manufacture: Allen-Bradley
Type: Mini Contactor
Model: 100-M09NZ*31
Series: 100-M
Family: A

Rated Coil Voltage: 24 V DC
Rated Operational Current AC-1, 500V: 20 A
Auxiliary contact Current: 16 A
Rated impulse with stand voltage Uimp: 8 kV
Number of Poles: 3
Frequency: 50/60 Hz
Power Rating:
4.3 kW @400V, 60°C
4.5 kW @415V, 60°C
5 Hp(3-phase) @460V
2 Hp(3-phase) @230V
Standard: IEC/EN 60947
General use: 600 V AC max.,12 A
Auxiliary contact: 1 Normally closed contact
Dimensions: 31.5 x 67 x 78 mm
